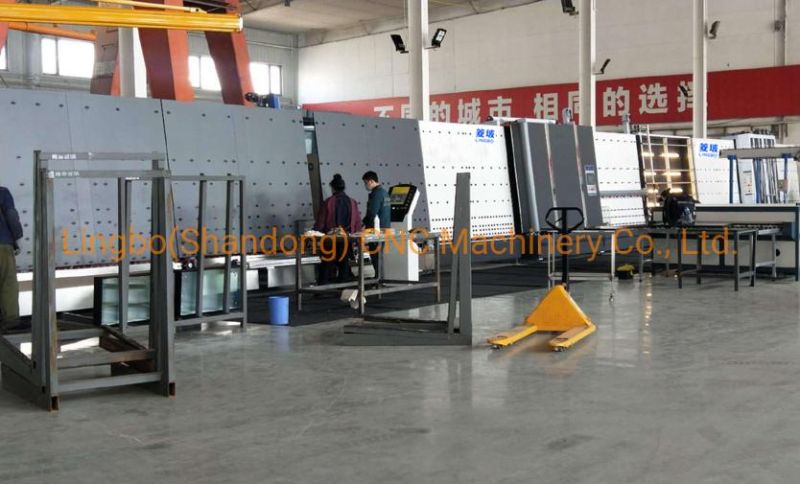

Automatic Vertical Insulating Window Door Glazing Processing Line Equipment
Lingbo(Shandong) CNC Machinery Co., Ltd.- After-sales Service：Free Parts Delivery One Year
- Warranty：One Year
- Condition：New
- Certification：ISO, CE
- Automatic Grade：Automatic
- CNC or Not：CNC
Base Info
- Model NO.：ZKX-2500x3100
- Voltage：380V
- System：PLC
- Automatic System：Fully Automatic
- Glass Process Max Size：2450*3150 mm
- Glass Process Min Size：300*500 mm
- Glass Process Thickness：3-12 mm
- Glass Washing Speed：0-12 mm
- Glass Transport Speed：45 M,Min
- Double Glazing Glass Thickness：10-48 mm
- Power Supply：3p 380V,1p +N220V 50Hz, Can Be Specially Order
- Total Power：38kw
- Space Size：22.8m *2.3m *3.55m
- Type：Vertical
- Washing Machine：Vertical
- Programmable PLC：Omron
- Frequency Converter：Siemens
- Transport Package：Plastic Film Packing
- Specification：2500*3100
- Trademark：LINGBO
- Origin：Shandong
- HS Code：8464901900
- Production Capacity：300 Lines,Year
Description
Max size-mm
Max size-mm
Thickness -mm
Speed-m/min
Speed-m/min
Glass thickness
-KW
L*W*H
1800*2400
+N220V 50Hz, 26kw
*2m
*2.85m
2000*2500
+N220V 50Hz, 32kw
*2.2m
*3.05m
2000*3000
+N220V 50Hz, 38kw
*2.2m
*3.05m
2500*3100
+N220V 50Hz, 38kw
*2.3m
*3.55m
2500*4000
+N220V 50Hz, 42kw
*2.3m
*3.55m
2700*4000
+N220V 50Hz, 42kw
*2.7m
*3.70m
Notes:
a. if you have special glass size, please note us, we can design the line for you;
b. If you have special power supply, please note us earlier as well, we can specially make the line for you.
3.Products Feature of Automatic Vertical Insulating Window Door Glazing Processing Line Equipment

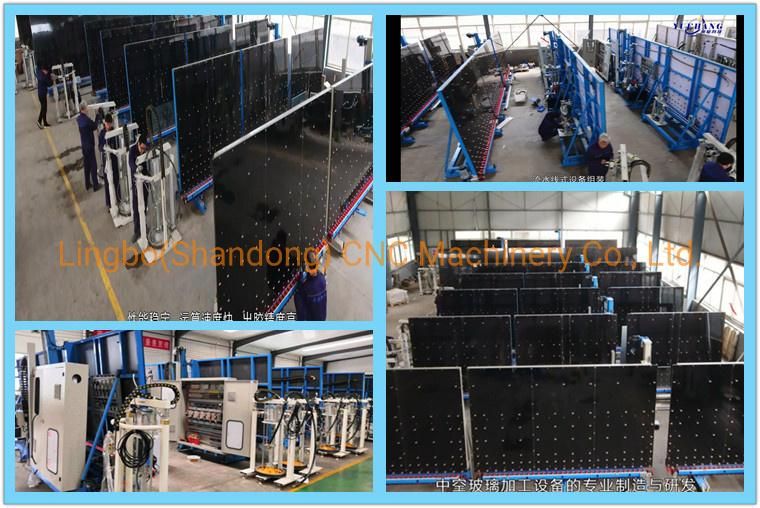

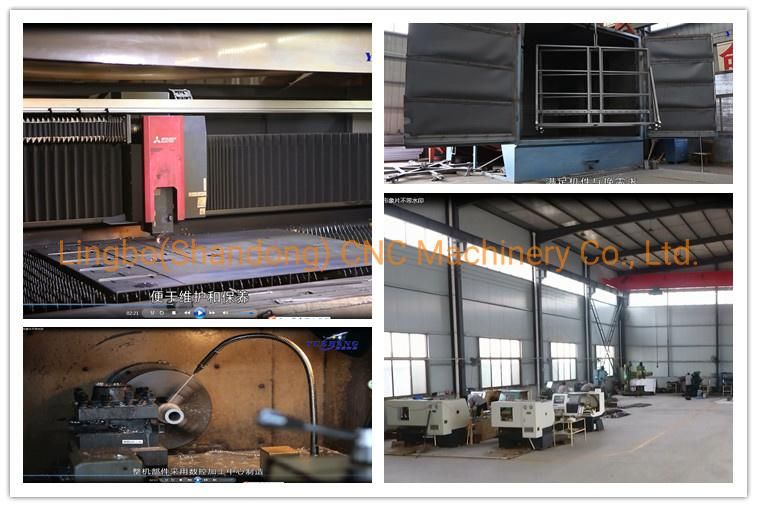

4. Mechanical assembly 5. Electrical design 6. R&D Team
7. Installation and debugging 8. After-sales tracking
