• Model NO.：CLM4S-100*2200*3000
• Air Consumption：0.45L Once
• Air Pressure：0.5-0.8MPa
• Profile Width：93mm
• Max. Frame Size：2200*3000mm
• Min. Frame Size：480*480mm
• Input Power：7.5kw
• to Combine Aluminum Window Corners：2500kg
• Usage：to Combine Aluminum Window Corners
• Transport Package：Standard
• Specification：4700*2200*2500mm
• Trademark：Truetec
• Origin：China
• Production Capacity：15sets,Month

Basic Info.

Model NO. CLM4S-100*2200*3000 Air Consumption 0.45L Once Air Pressure 0.5-0.8MPa Profile Width 93mm Max. Frame Size 2200*3000mm Min. Frame Size 480*480mm Input Power 7.5kw to Combine Aluminum Window Corners 2500kg Usage to Combine Aluminum Window Corners Transport Package Standard Specification 4700*2200*2500mm Trademark Truetec Origin China Production Capacity 15sets/Month

Product Description

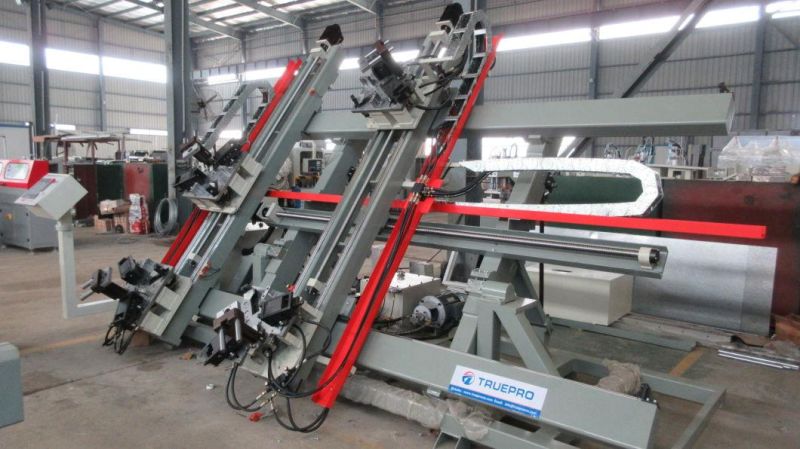

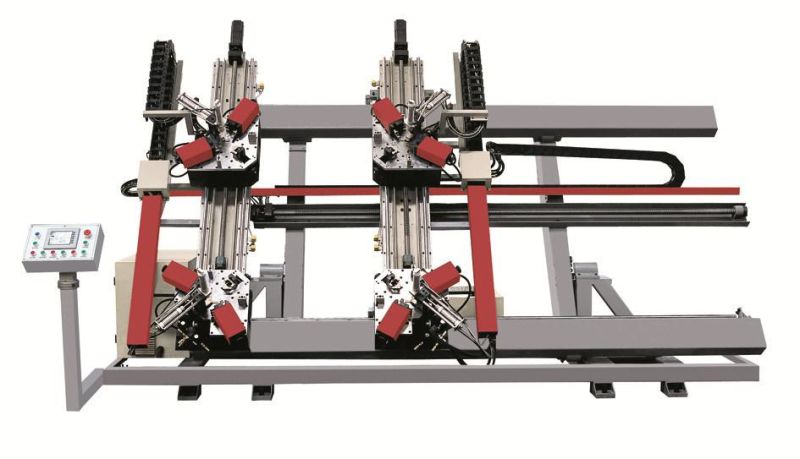

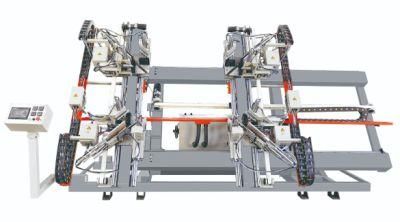

High Efficiency Four Corner Crimping Machine Aluminum Window Mass Production

Machine feature:
1.Use for corner punching combination of aluminum window&door,four corners connecting at one time is available.
2.Clamping device can auto move forward/backward,making the operation convenient.
3.The frame is specially jointed by steel with high quality and special process.
4.The CNC system imported from MTSUBISHI JANPAN,with high quality ensures the speed and accuracy.
5.The moment control function of the service system can auto-press the four corners ensuring the processing effect.
6.The corner-crimping blade can be adjusted according to the requirement of different profile.

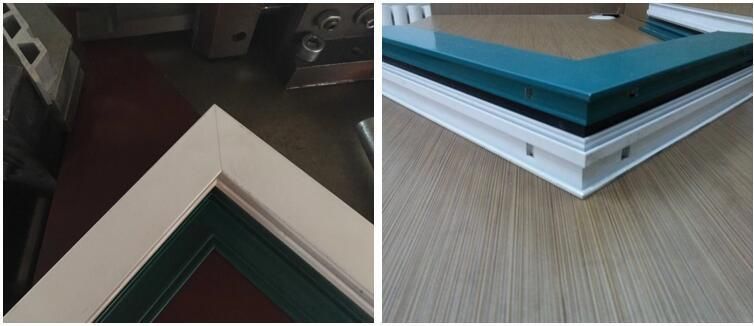

7.One time corner crimping can control the seam and plane,make the quality foresight.
8.The control system and servo system make the connect no seam and improve the control accuracy.
Parameter:

Model	CLM4S-100*2200*3000
Input power	7.5kw
Power supply	380V/220Hz
Air pressure	0.5~0.8Mpa
Rating oil pressure	16Mpa
Capability of oil box	60L
Profile width	93mm
Corner crimping casing movement journey	0~50mm
Min frame dimension	480*480mm
Max frame dimension	2200*3000mm
Overall dimension	4700*2200*2700mm
Weight	2500kg

Machine details:

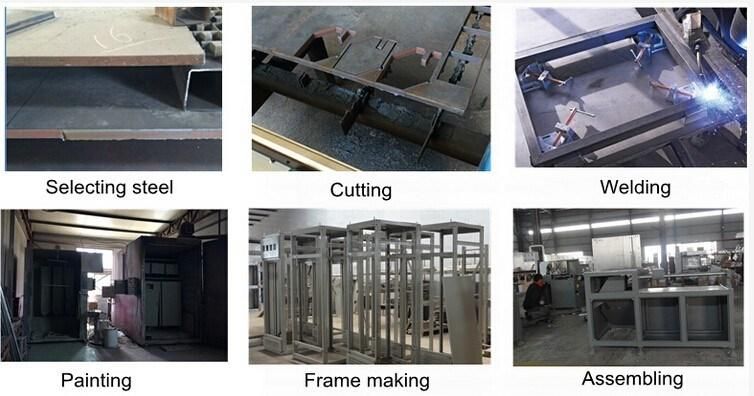

Machine processing

We work with everything from raw material to final machine, could guarantee machine quality from each step. select each part carefully, we are strive to quality first when machine production and test each machine before delivery.
We will provide the best machine for you.



Packing & Delivery

Certifications

ISO9001/2000 International Quality Certification
CE Certification
Most advanced technology and high level configuration
Personalized service and perfect after-sale service


Company Information



Our Service

Pre-sale service

Free contact for the most suitable machine
Free professional design for each customer especially.

After sale service

24 hours technical support by phone, email or skype
1years warranty period
Our senior engineer is available to travel aboard, help the installation, maintenance and training staff.

PaymentP

L/C, 30% deposit by T/T,70% spare payment L/C.
T/T, 30% deposit by T/T,70% spare payment before shipment.
Western Union or Paypal.

FAQ

1. When can we arrange shippment?
We usually arrange shippment within 15 days after getting deopsit,
but customized machines should be more than 25 days.

2.What you can do if my machines have problems?
1) We can send you free components to you if your machines are in guarantee time.
2) We can send our engineers to repair your machines

3.Do you provide equipment operation training?
A: Yes. We can send professional engineers to the working site for equipment installation, adjustment, and operation training. All of our engineers have passport.

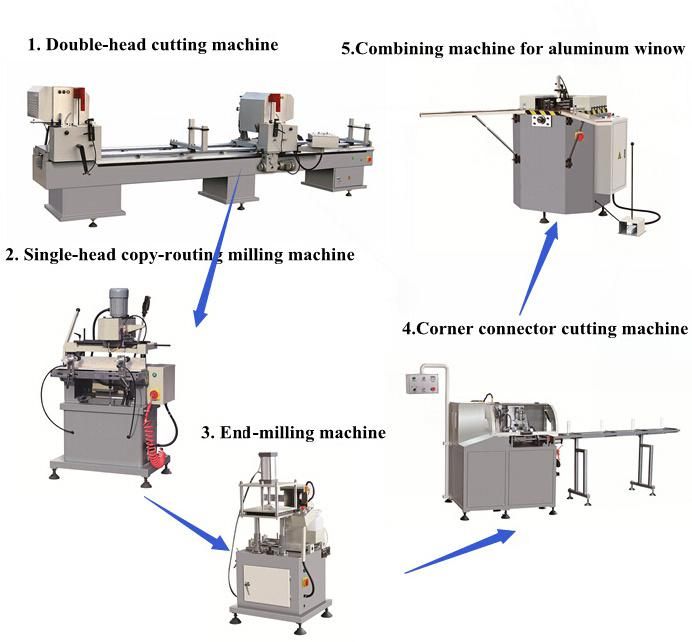

4. If I make Aluminum window and door, how many basic machines do i need?
1).double head cutting saw
2).Lock hole copy milling machine
3).End milling machine
4).Automatic Corner connector automatic cutting saw
5).Single head Corner combining machine
