Building Material Making Machinery

Hr7-10 Concrete Brick Machine Offers Fully Automatic Production Line for Block Machine

Linyi Duyue Import and Export Co., Ltd.
  • Certification:CE, ISO
  • Customized:Customized
  • Automatic Grade:Semiautomatic
  • Type:Hydraulic Shock
  • Rate Voltage:380-440V as Requested
  • Pressure:30-35MPa

Base Info

  • Model NO.:Hr7-10
  • Total Weight:2900 Kgs
  • Moulding Cycle:7-10s
  • Total Machine Power:18.5kw
  • Shaping Way:Hydraulic
  • Color:Customized
  • Transport Package:Container
  • Specification:2400*1900*2380mm
  • Trademark:DUYUE
  • Origin:China
  • HS Code:8474802000
  • Production Capacity:100 Sets,Year

Description

Basic Info.

Model NO. Hr7-10 Total Weight 2900 Kgs Moulding Cycle 7-10s Total Machine Power 18.5kw Shaping Way Hydraulic Color Customized Transport Package Container Specification 2400*1900*2380mm Trademark DUYUE Origin China HS Code 8474802000 Production Capacity 100 Sets/Year

Product Description

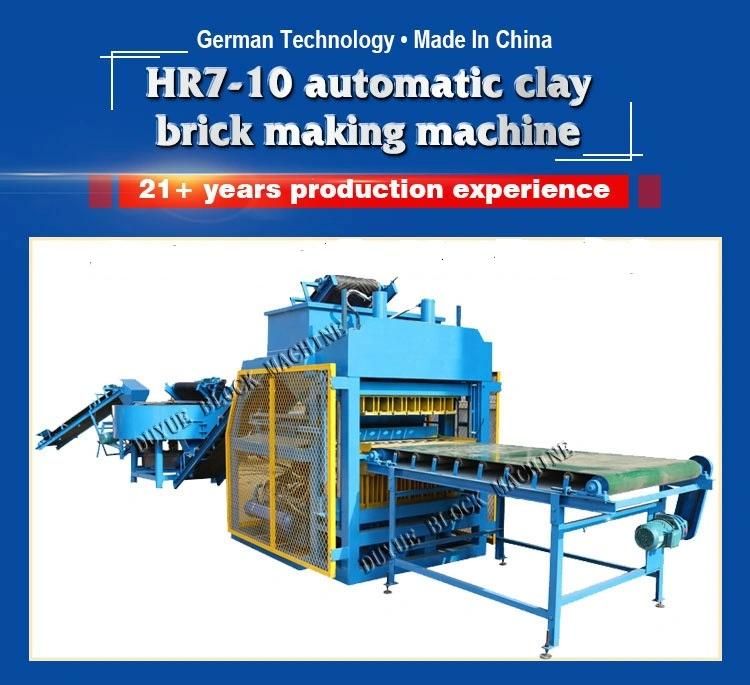

Hr7-10 Concrete Brick Machine Offers Fully Automatic Production Line for Block Machine

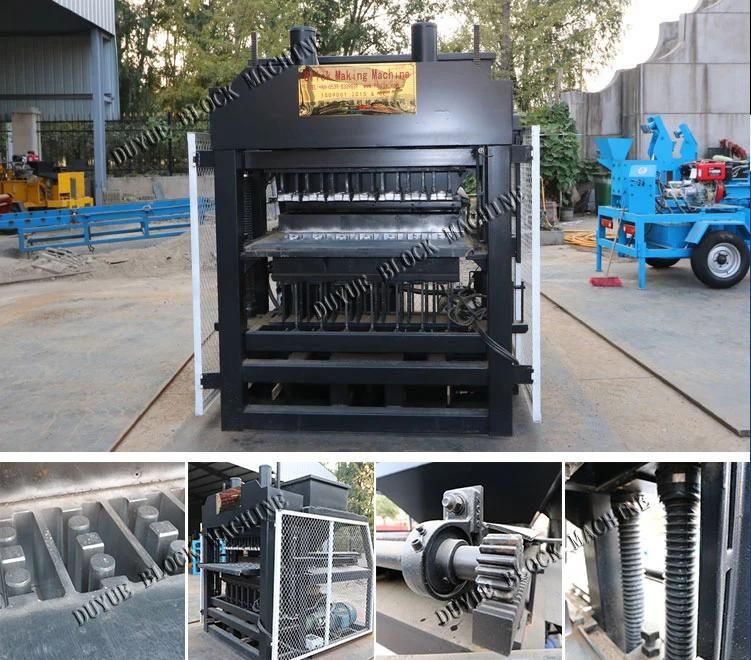

Main features of of HR7-10 fully automatic hydraulic soil interlocking brick machine clay  brick moulding machine

1.Four guidepost, the moulds rise/drop steadily.

2.Adopt the proportional valves, can adjust the pressure through PLC control system.

3. There are two oil cylinder on top mould and one oil cylinder under down mould, up and down press at same time, the brick is much stonger.

4.There is the touch screen attached in PLC control box, can adjust the pressure through the touch screen, it is so easy.

5.Adopt the plunger pump and proportional valves, the pressure is double


Hr7-10 Concrete Brick Machine Offers Fully Automatic Production Line for Block Machine

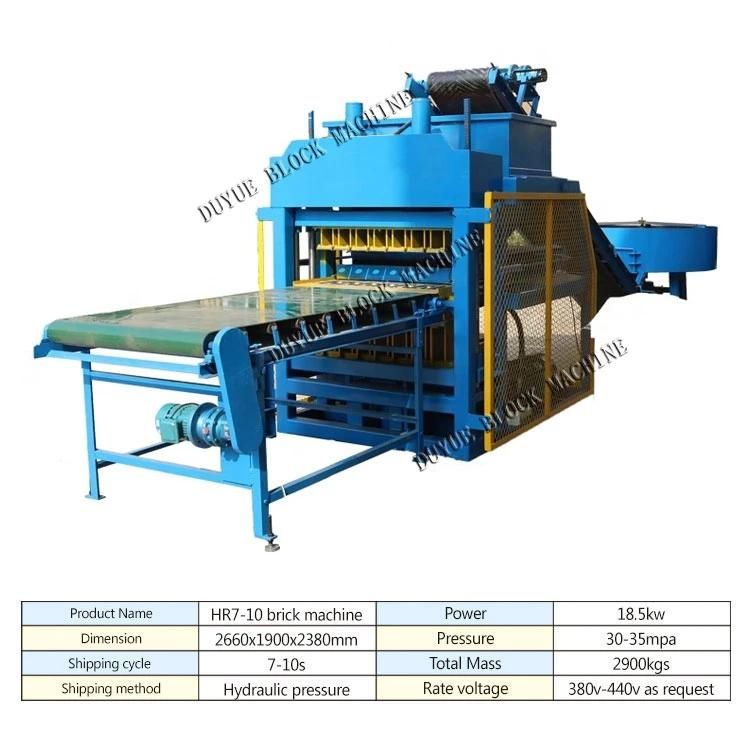

Main technical parameters
Hr7-10 Concrete Brick Machine Offers Fully Automatic Production Line for Block Machine

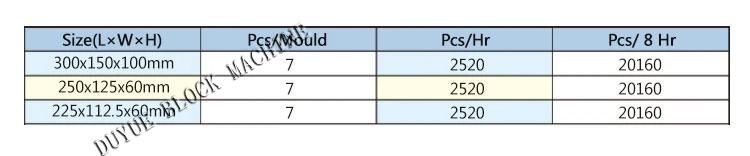

Theoretical production capacity
