Perfiladora Press Stud Forming Machine Purlin Forming

HEBEI XINNUO ROLL FORMING MACHINE CO., LTD.
  • Tile Type：Colored Steel
  • Certification：CE, ISO
  • Condition：New
  • Customized：Customized
  • Usage：Drywall
  • Transmission Method：Hydraulic Pressure

Base Info

  • Model NO.：stud and stack keel roll forming machine
  • Weight：3.5t
  • Color：as Required
  • Warranty：12 Months
  • Control：PLC
  • Raw Material：Aluminum
  • Transport Package：Main Machine Is Nude
  • Specification：5.5*1.0*1.5m
  • Trademark：kexinda
  • Origin：China-Mainland
  • Production Capacity：1set,Month

Description

Main parameter of furring roll forming machine1Suitable to processColor steel plate2Width of the plateAs customer need3Thickness of the plate0.5-1.2mm4De-coiler Manual one, can load 5 tons raw material5Rollers for forming 12 rows6Diameter of the rollerΦ52mm7Rolling materialCarbon Steel 45#8Main motor power4kw9Productivity8-12m/min10Cutting methodHydraulic mould cutting 11Material of the cutting bladeCr1212Hydraulic cutting power 3kw13Processing precisionWithin 1.00mm14Control systemDelta PLC control15Side panel of machine14mm16Main structure of the machine300 H steel17Weight About 3.5T18Dimensions5.5*1.0*1.5m19Voltage380V 50Hz 3phases(changeable as needs)20Certificate CE/ISO

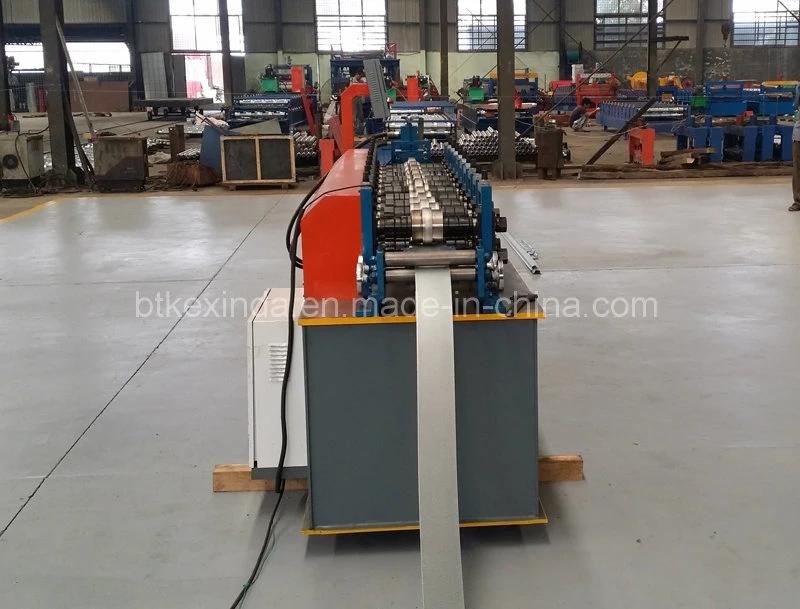

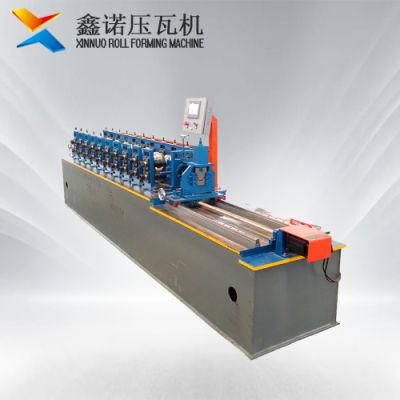

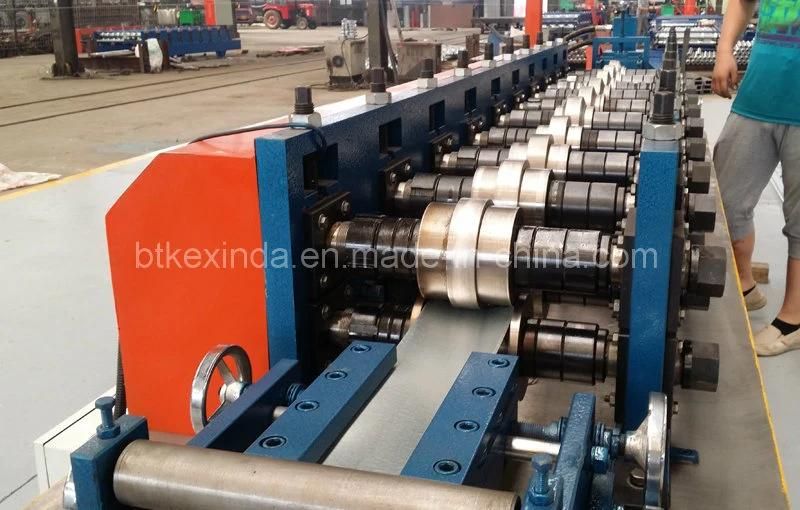

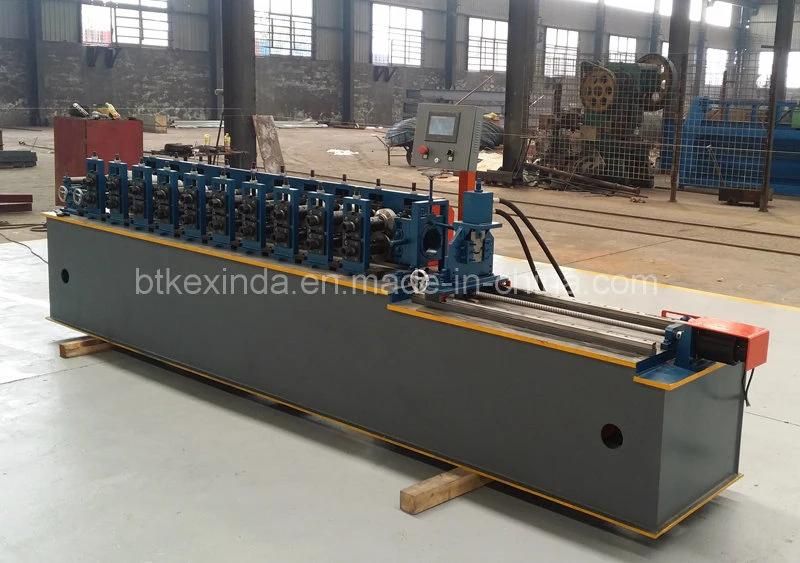

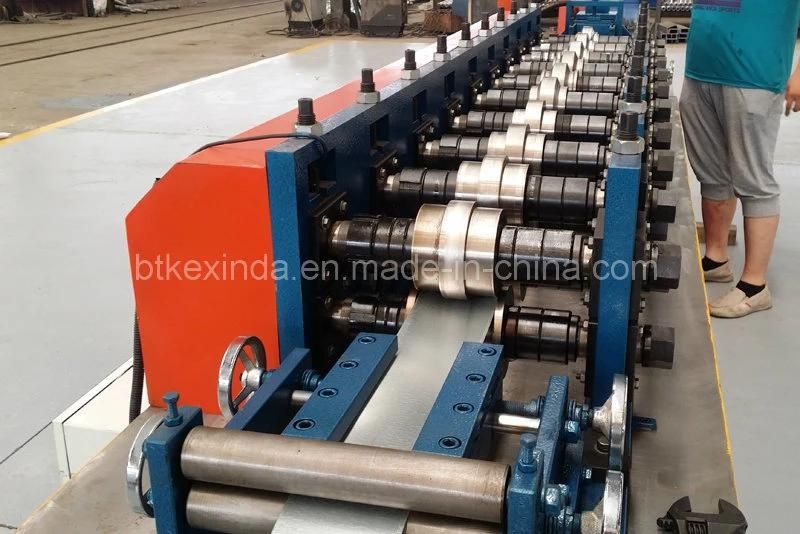

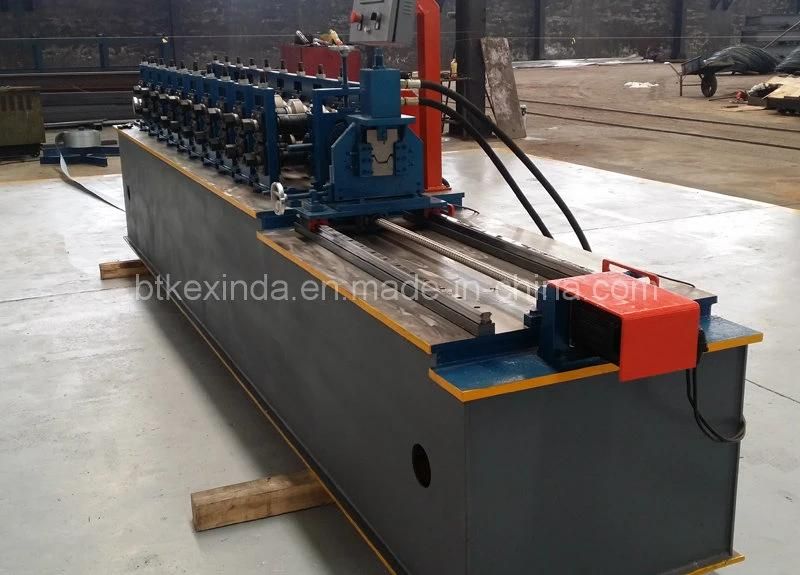

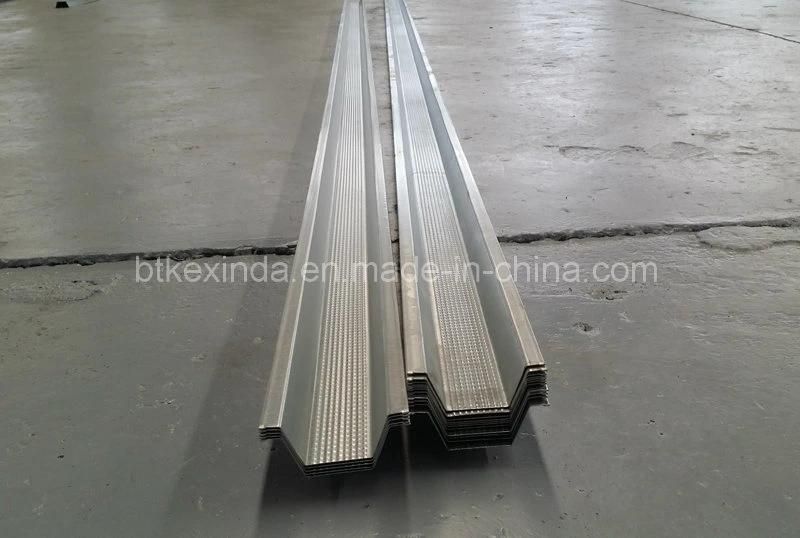

PICTURE SHOW

Perfiladora Press Stud Forming Machine Purlin FormingPerfiladora Press Stud Forming Machine Purlin FormingPerfiladora Press Stud Forming Machine Purlin FormingPerfiladora Press Stud Forming Machine Purlin FormingPerfiladora Press Stud Forming Machine Purlin Forming
Perfiladora Press Stud Forming Machine Purlin Forming
ADVANTAGE

 Our machineInfluence of the machine
Main forming
machine body		High strength H350 or H400 steel.
machine through milling machine after
welding		Sturdy and durable,
ensure the plate standard
Material of the
roller		High grade No.45 forged steelEnsure the forming effect of
the panel and the use age will
be longer,the surface of the panel
Material of the
cutting		GCr12 steel with quenched treatmentCutting is out of shape not easily
and use age will be longer,the panel
size precision
Material of the
active shaft		High grade solid No.45 carbon steel,
Shaft diameter is 72mm. 		Improve the integrated mechanic
feature of the shaft and keep product
standard
Control systemPLC control system,some elements are
imported from Japan and Germany		Machine become more accurate and
more stable

ABOUT US

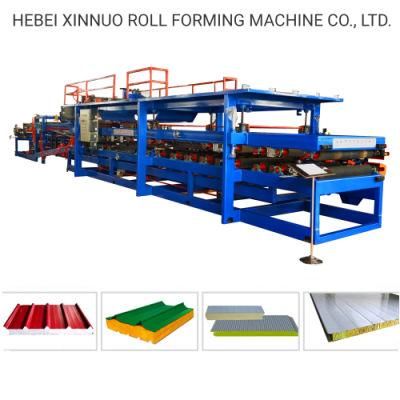

Hebei Xinnuo Roll Forming Machine Co., Ltd., not only produce different types of professional roll forming machines, but also develop intelligent automatic roll forming production lines, C&Z shape purline machines, highway guardrail roll forming machine lines, sandwich panel production lines, decking forming machines, light keel machines, shutter slat door forming machines, downpipe machines, gutter machines, etc.



FAQ

1:How to play order:

Inquiry---confirm the profile drawings and price----confirm the PI---arrange the deposit or L/C---then OK

2:How to visit our company:

Fly to Beijing airport:By high speed train From Beijing Nan to Cangzhou Xi (1 hour),then we can
pick up you.

Fly to Shanghai Airport: By high speed train From Shanghai Hongqiao  to Cangzhou Xi(4.5 hours),then we can pick up you.

3:When we exported the machines:

We have beening making and exporting the machines since from the year of 1998.

 4.What's the after- sale service:

we sent technician to your country to fix the machine.The buyer should bear all the cost including:

visa, round trip ticket and suitable accommodation, also buyer should pay the salary 80USD/day.

5.How about the warranty: 12 months limits warranty
