• Usage：Roof
• Transmission Method：Machinery
• Transport Package：Simple Plastic Film Protection
• Specification：65*1.0*1.5m
• Trademark：Xinnuo
• Origin：Hebei China
• HS Code：84243000
• Production Capacity：3 Sets Per Month

C.Technical Parameters

Product introduce

1.Automatic Bottom glue spraying equipment


Outside dimension:4000*1350*850(L*W*H)

Structure:channel steel,welded

Transmisson:2.2kw variable-frequency adjustable-speed motor 0-32R/mim

Conveying device:Reciprocating chain conveys

Automatic glue spraying assembly: with motor:0.06kw

Adsorption of dust removal equipment:1 set

Air compressor:1 set 0.9m

Automatic pressure glue canister:1 set Range of adjustable pressure:0.1-0.6Mpa

Automatic glue spraying gun:4 sets

Fill glue gun: 5 sets

Glue gun stand:1 set

2.Automatic Sandblasting Room

Outside dimension:3000*1850*700(L*W*H)

Structure:channel steel,angle steel,welded

Transmisson:with glue spraying equipment compound chain transmit

Conveying device:compound chain transmit

Automatic sand hopper:1 set dimension 550*600*500m

Automatic rising machine:1 set. Rising height:1.9m Power:300kg/h

Sand-blasting gun:4 sets

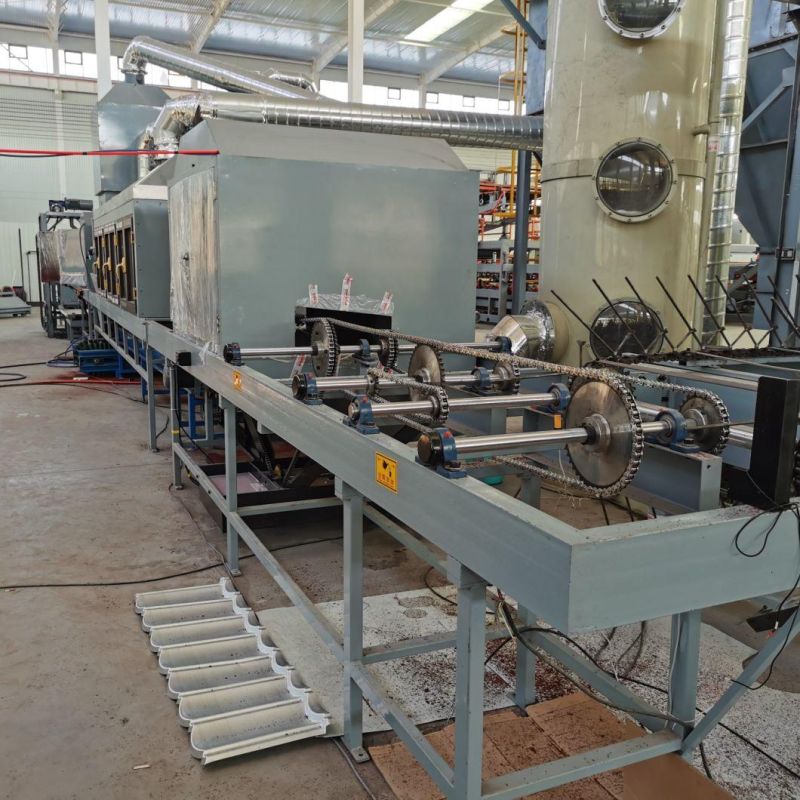

3.First Drying Room

Outside Dimension:25000*800*1200mm(L*W*H)

Structure:carbon steel welded

 Frame type heat preservation wall:-fill up with heat preservation material which is bended with 1mm carbon steel

 Automatic temperature controller:2 sets,Range of adjustable temperature:0-160°

 Infrared fluorescent tube:50 pcs

Conveying device-:Reciprocating chain conveys

Cooling device:1 set

4.Automatic Surface Glue Spraying Equipment

Outside Dimension:  3000*850*700mm(L*W*H)

 Structure:   carbon steel welded

Automatic glue spraying assembly: 1 set Range of pressure:0.1-0.6 MPa

Adsorption of dust removal equipment: 1 set

Manual spraying gun:   5 sets

5.Second Drying Room Equipment Component

 Outside Dimension:    3000*850*700mm(L*W*H)

Structure:  carbon steel welded

Frame type heat preservation wall:30m. fill up with heat preservation material which is bended with 1mm carbon steel

Conveying device-:Reciprocating chain conveys

Infrared fluorescent tube:50 pcs

Automatic temperature controller:2 sets,Range of adjustable temperature:0-160°

Conveying device: Reciprocating connection conveys 30 m

Cooling device:1 set

Automatic printing code and marking:1 set of automatic printer

Total equipment matches total control station:1 set(control system)

Productivity:3-6m/min calculate as 1.2m per piece, eight hours, produce 1500pcs everyday

Whole machine power:113kw
