• Model NO.：840
• Main Frame：350h
• Transport Package：Container
• Specification：8000*1500*1600mm
• Trademark：kexinda
• Origin：Hebei
• HS Code：8455221000
• Production Capacity：3000sets

Basic Info.

Model NO. 840 Main Frame 350h Transport Package Container Specification 8000*1500*1600mm Trademark kexinda Origin Hebei HS Code 8455221000 Production Capacity 3000sets

Product Description

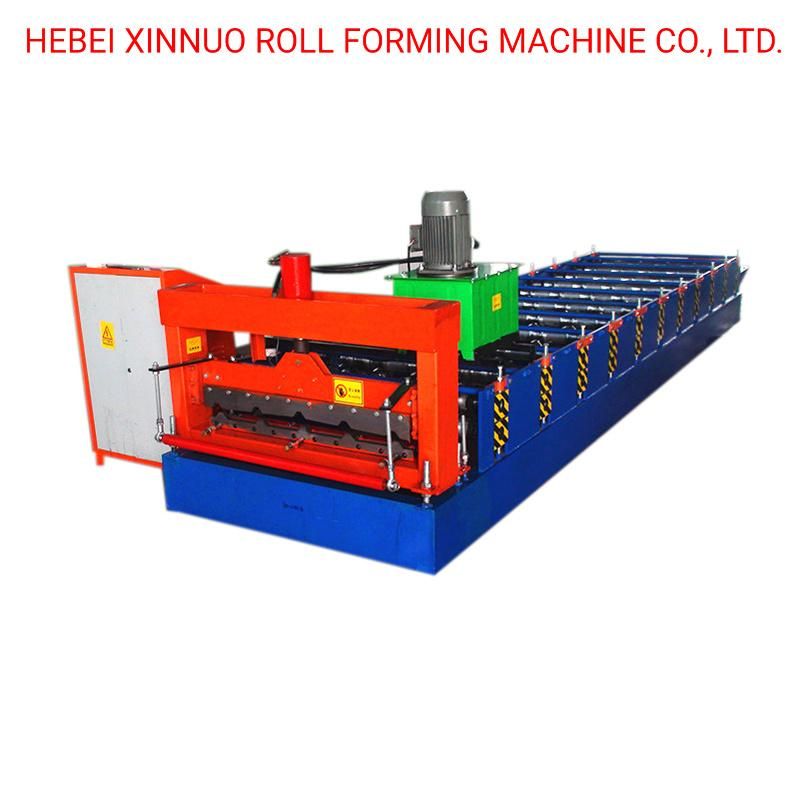

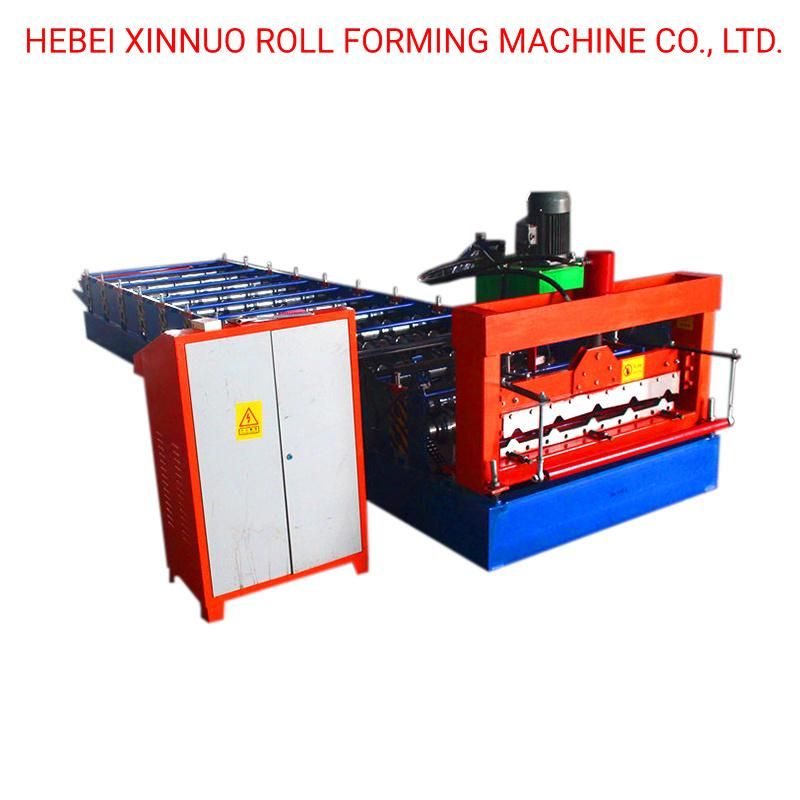

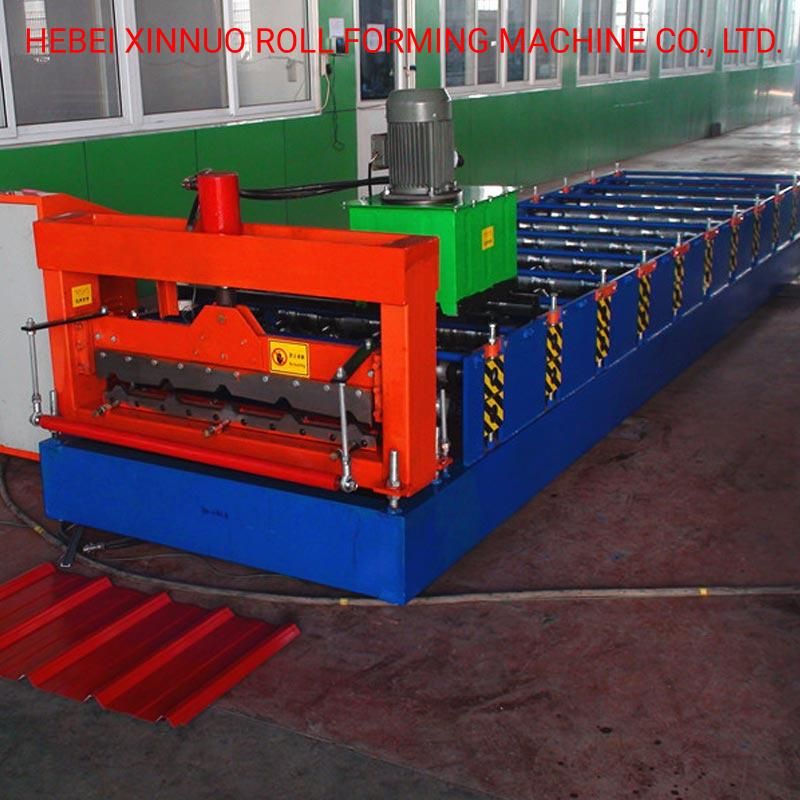

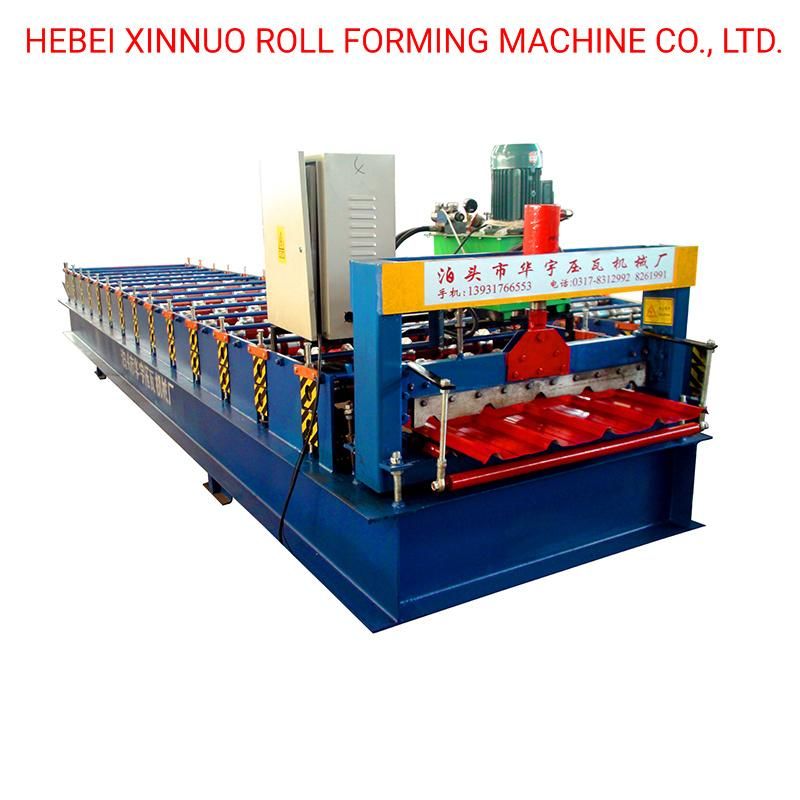

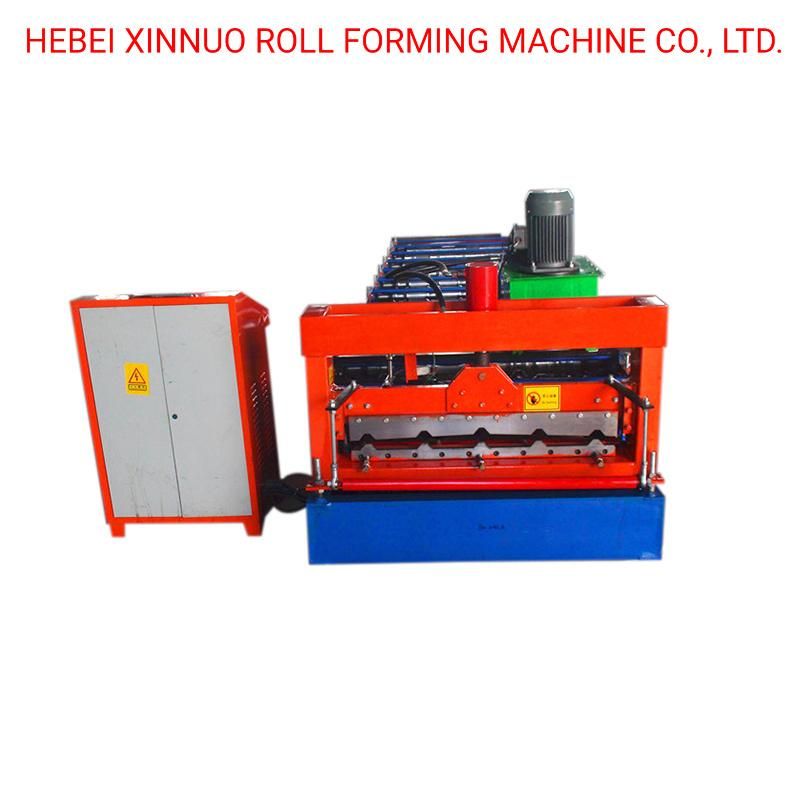

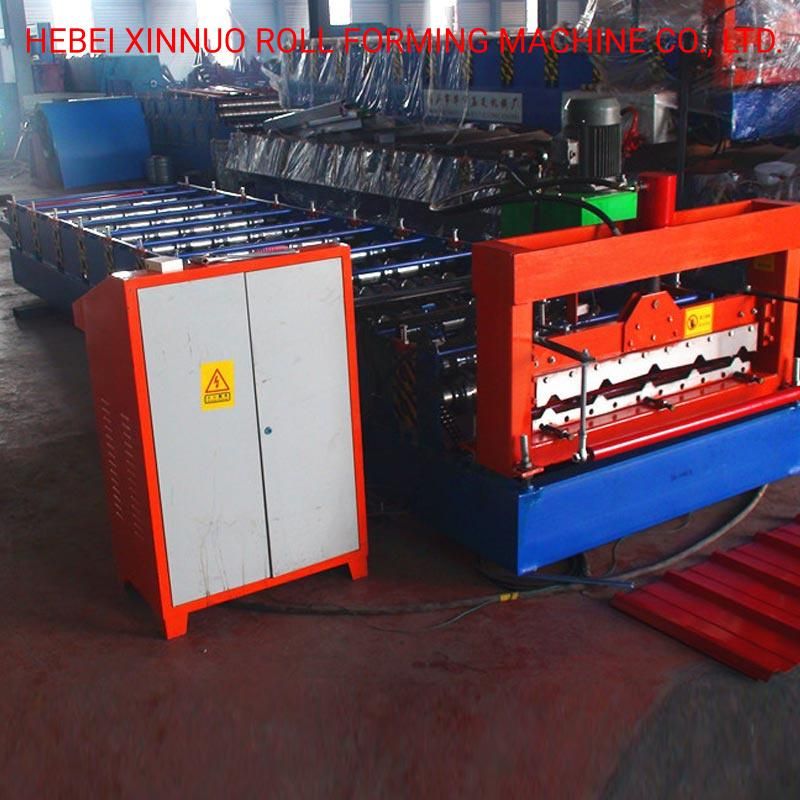

840 Colored Metal Making Steel Plate Roll Forming Machine

Configurations	Manual Uncoiler ,Guiding Platform ,Coil Strip Leveler ,Main Machine Of Roll Forming ,Electro-Motor, Glazed Tile Pressing Device ,Cutting Device ,Hydraulic Station ,PLC Control, Supporter Table.
Control System	PLC Delta Inverter
Main Frame	300mm H-Beam
Main Power	4 kw
Pump Power	3 kw
Power Supply	380V, 3-Phase,60Hz
Forming Speed	2-4m/min
Roll Station	11 stands
Roller Diameter	75-80mm
Hydraulic Pressure	10-12MPa

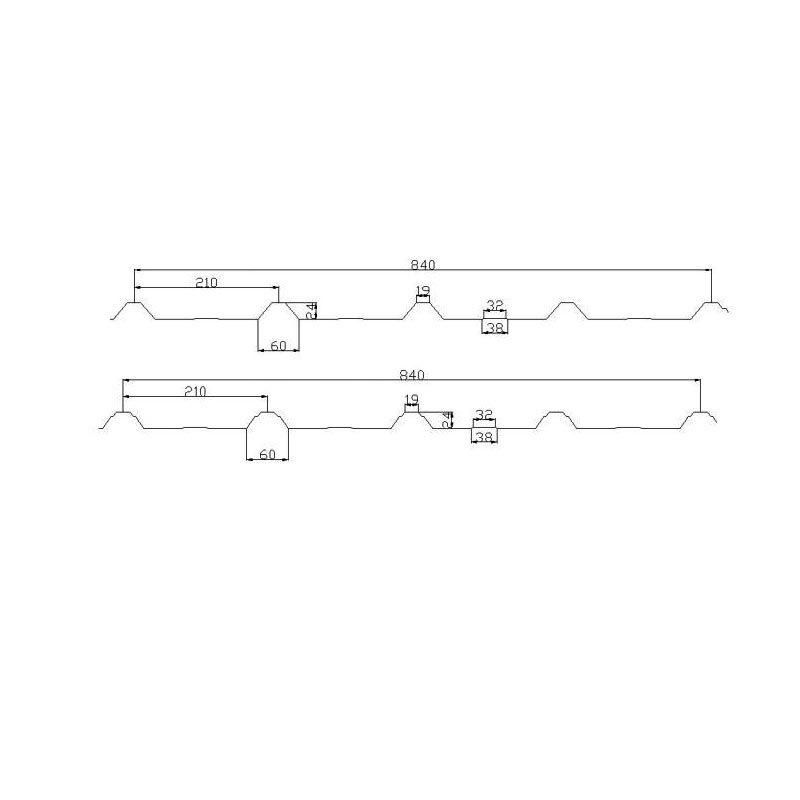

Forming Size	840mm
Feeding Thickness	0.3-0.8mm
Feeding Width	1000mm
Backboard Thickness	16mm
Chain Size	33mm
Cutter Standard	Cr12
Roller Standard	Cr12
Cr-Plating Size	0.05mm
Overall Size	7800×1650×1500mm
Total Weight	5T

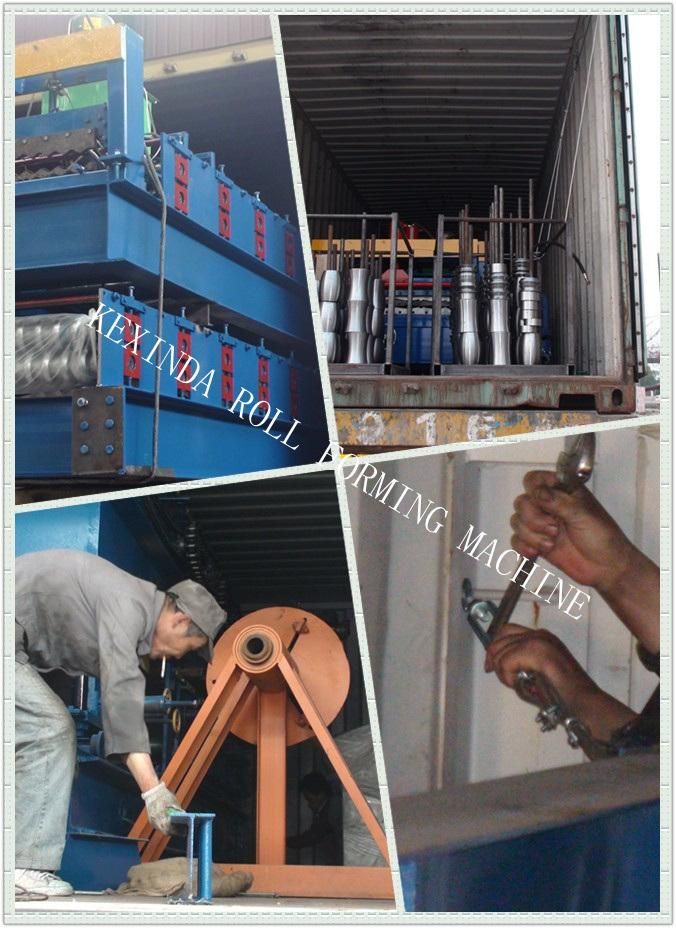

Packaging & Shipping



Company Information



FAQ



1:How to play order:



Inquiry---confirm the profile drawings and price---confirm the PI---arrange the deposit or L/C---then OK



2:How to visit our company:



Fly to Beijing airport: By high speed train From Beijing Nan to Cangzhou Xi(1 hour),then we can pick up you.



Fly to Shanghai Airport:By high speed train From Shanghai Hongqiao to Cangzhou Xi(4.5hours),then we can pick up you.



3:When we exported the machines:

We have beening making and exporting the machines since from the year of 1998.



4:If you want to get more pictures or videos of the machines,I can send them to you by Email or Skype
