• Model NO.：NM1081
• Customized：Customized
• Condition：New
• Control Type：Electric
• Automatic Grade：Automatic
• Name：Aluminum Downspout Pipe Machine
• Coil Material Thickness：0.4--0.8mm
• Processing Material：Galvanized Steel
• Roller Material：Cr12MOV
• Forming Speed：10-15m,Min
• PLC Brand：Panasonic
• Roll Forming Station：12 Stations
• Operation Type：Touching Screen
• Machine Weight：3 Tons
• Machine Color：Yellow and Blue
• Transport Package：Plastic Film
• Specification：4000mm*800mm*700mm(L*W*H)
• Trademark：Nexus Machinery
• Origin：Cangzhou, China
• HS Code：8455221000
• Production Capacity：10
• Package size per unit product：750.00cm * 80.00cm * 150.00cm
• Gross weight per unit product：5000.000kg

1



Name of commodity & specification

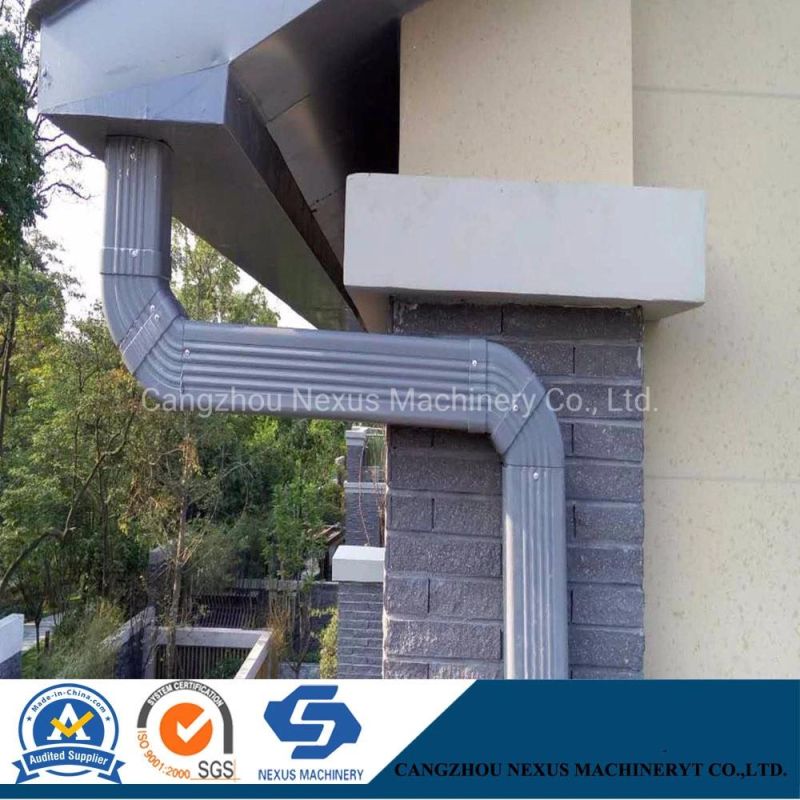

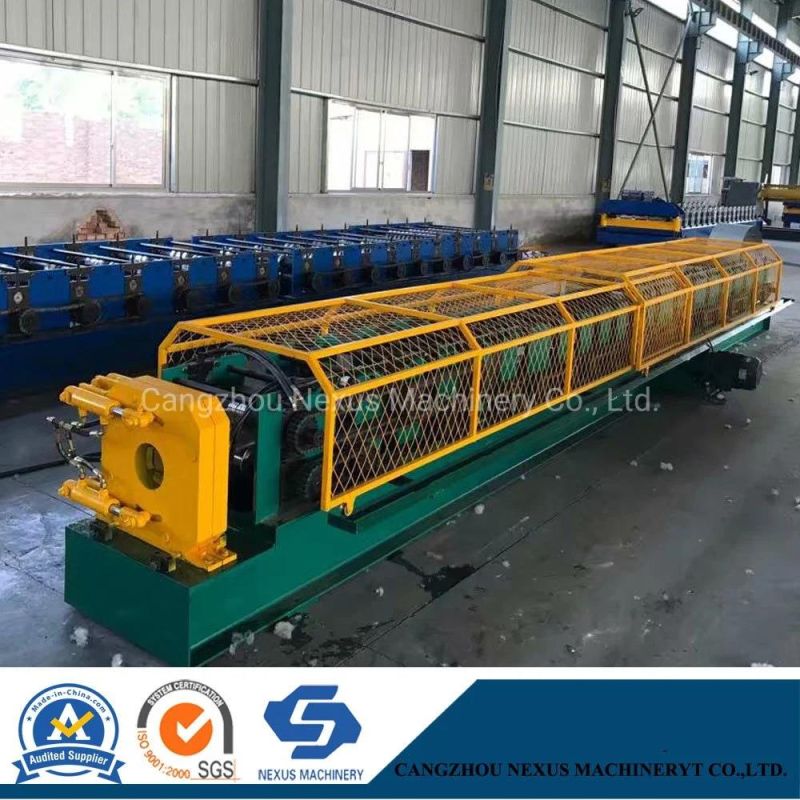

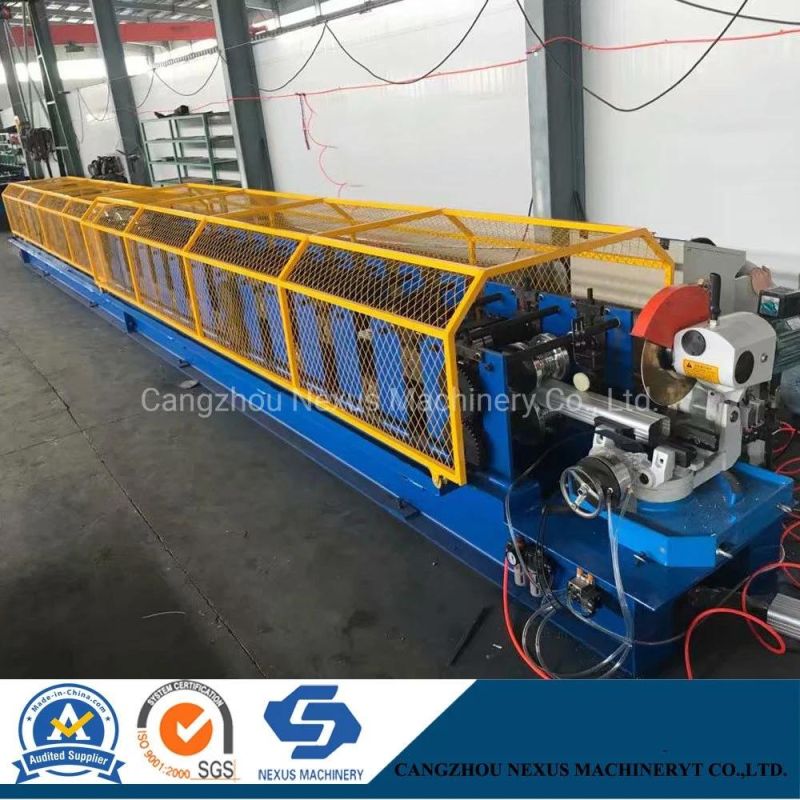

Hot Sale Downspout Roll Forming Machine for Water Falling Tube /Aluminum Downspout Pipe Machine

2

Dimension

15,500*1,250*1,600mm

3

Weight

About 8.5 T

4

Roller material

45# steel

5

Shafts

70mm

6

Forming steps

20

7

Main motor power

7.5 KW

8

Hydraulic motor power

4 KW

9

Voltage

380V /3phase/ 50 HZ

10

Material

Clour steel

11

Feeding width(Expansion width)

445 mm

12

Effective width

134*93 mm

13

Thickness

0.-5-0.6mm

14

Material of cutter&press

Cr12 , quenched

15

Productivity

6--10 m/min(not including the cutting time)

16

Control system

PLC box with inverter

17

Components



Material shelf                       1 set
Host machine                       1 set
Hydraulic station                 1 set
Computer control box          1 set
Cutting blade                       1 set

18

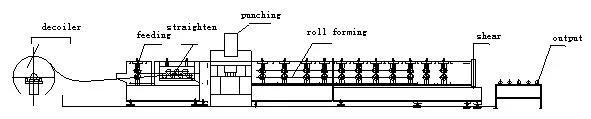

Workflow



Manual decoiling----feeding and guiding----

roll forming---- cut to length----run out table







19

Package

Naked

20

Minimum order quantity

1 set

21

Payment terms

T/T(30% T/T pay in advance, the remaining 70% pay before

ship)

22

Delivery time

45  working days later after receiving the deposit.

23

Warranty

One year limit warranty,we will provide the technical

support for the whole life.

24

Spare parts

Electromagnetic iron 2 pcs ,hydraulic oil pips 2 pcs ,

Travel switch 2 pcs ,chain 2 pcs ,bearings 2 pcs ,button

4 pcs

 Electric Element of Main Roll Forming Machine


ABOUT US:

Cangzhou Nexus Machinery Co.,Ltd is experienced manufacturer & exporter of cold roll forming machine with ISO quality system.
Our R&D department is staffed with senior engineers who has more than 20 years experience in metal forming machine industry, so we are able to assist customers with professional designing and solution.
Our range of products: roof tile roll forming machine, cladding roll forming machine, metal decking roll forming machines, C/U/Z/W/L steel purlin roll forming machine etc. We also can supply steel coils, roof panels to suit diverse requirements of our global customers.
Today, we have exported our machines to America, Chile, Mexico, Bolivia, Brazil, Colombia, Argentina, Ecuador, Honduras, Fiji, Papua New Guinea, Kuwait, Syria, Oman, Saudi Arabia, U.A.E, Nigeria, Tanzania,Ethiopia, Gana, Guinea,South Sudan, Algeria, Niger, Philippines,Indonesia,India, Azerbaijan and Kazakhstan.
We have rich experience for cold roll forming machine solution,competitive price and excellent service. We will continue to do our best to supply perfect products and service for customers. Invite you to contact us for further information.


Exhibition Photos:


Machine Loading Photos:

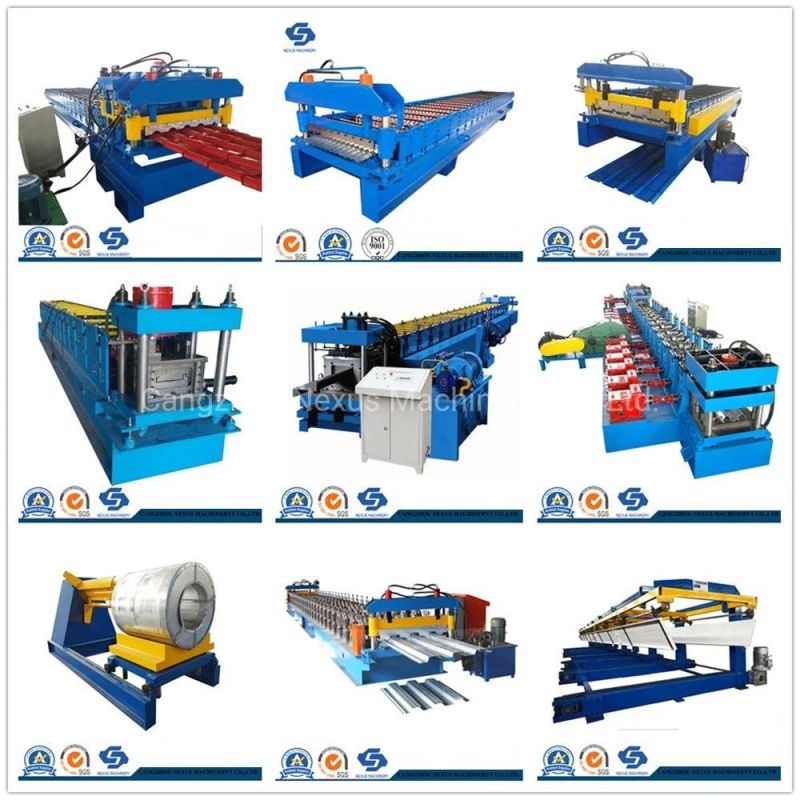

Hot-Sale Products you Might Be Interesting:

Our Service:

Pre-Sales Service
Our company has more than 20 years of production experience, experienced technical department will be based on your specific drawings and requirements to design machines, and give you the appropriate technical advice
* Inquiry and consulting support
* Sample testing support.
* View our Factory.

After-Sales Service

* Training how to instal the machine, training how to use the machine.
* Engineers available to service machinery overseas.
