5t/8t/10t Hydraulic Decoiler Uncoiler with Coil Car for Metal Forming Machine

Cangzhou Nexus Machinery Co., Ltd.
  • After-sales Service：Provide Overseas Service
  • Warranty：1 Year
  • Standard：DIN, ASTM, GOST, GB, JIS, ANSI, BS
  • Technics：Forging
  • Feature：Recycle
  • Material：Metal

Base Info

  • Model NO.：NM111
  • Product Name：5t,8t,10t Hydraulic Decoiler with Coil Car
  • Machine Usage：Roll Forming Line, Slitting and Cutting Line
  • Total Power：5.5kw+4kw
  • Capacity of Load：8t
  • Maximum Width for Coils：1300mm (Also Customized)
  • Hydraulic Pressure：16MPa
  • Expanding Range：480-560mm
  • Electricity Supply：380V,50Hz or Customized
  • Transducer：Sanjing Brand
  • Leading Time：30 Days
  • Transport Package：Wooden Box Package
  • Specification：3000mm*1800mm*1800mm (L*W*H)
  • Trademark：NEXUS MACHINERY
  • Origin：Cangzhou, China
  • HS Code：845590000
  • Production Capacity：50 Sets,Month

Description




 Expand by hydraulicSingle arm to put the coil Expanding range : 600-1400mmMotor power: 5.5 KW/7.5KWHydraulic power:5.5KW/ 7.5 KWHydraulic pressure:16MpaMaterial of shaft: Gcr45 steelMaterial of main machine body: 45# H steelCoil car: lifting by hydraulicLifting height: about 400mmRail length of coil car: 2.5m (also can customize) Size of decoiler: 2.8m X 3.8m X 2.5m H*L*WWeight of decoiler: about 4.5 tonsPLC:  Sanjing, famous brand in China Control: Buttons and switchesDecoiler color: yellow and blueVoltage: 380V,50HZ,3 Phases (also can customize)

2. Equipment list :

No.Product Name       QTY
15t/8t/10t Hydraulic Decoiler Uncoiler with Coil Car for Metal Forming Machine         1

3. Character of main structure:
  1. The structure is simple and the appearance of the machine is beautiful because we adopt the shape-steel structure and most of the connectors are screw which make the machine flexible and stronger.
  2. All the components of machine are from brand-famous enterprise so that they ensure the machine normal function very effectively.
  3. We adopt the automatic length-fixed forming and cutting to guarantee the length to be precise and the finished product clear without deforming .
  4. It is very easy to install the equipment and suitable for producing in the factory.
  5. Low noise with high efficiency.

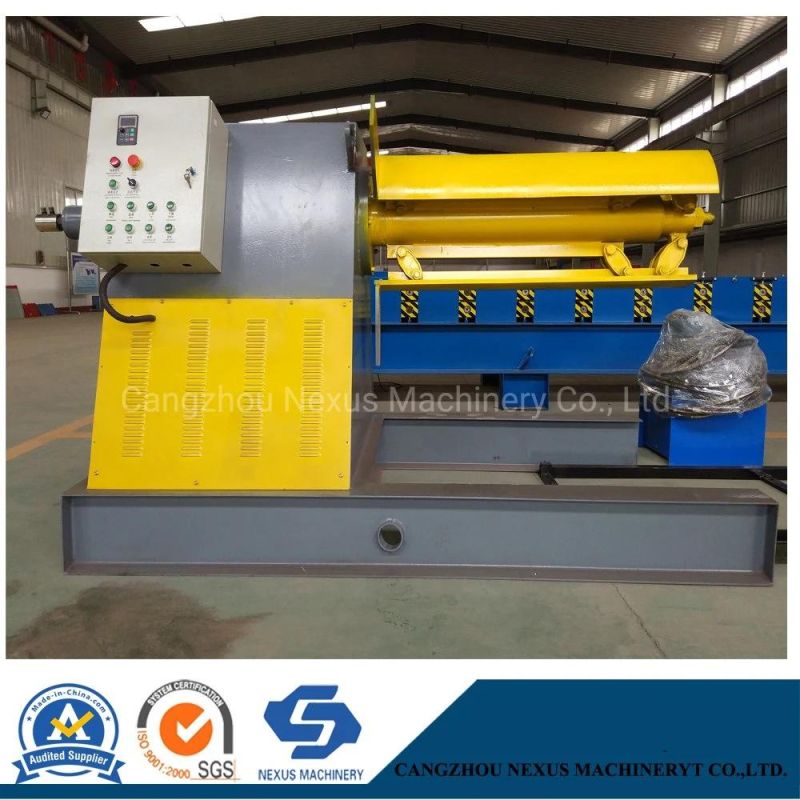

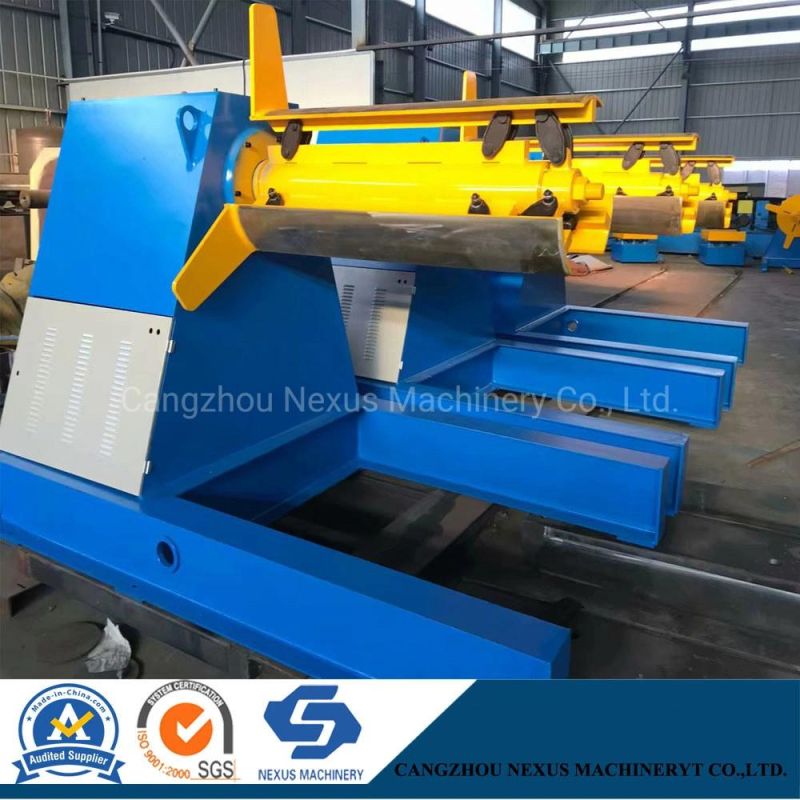

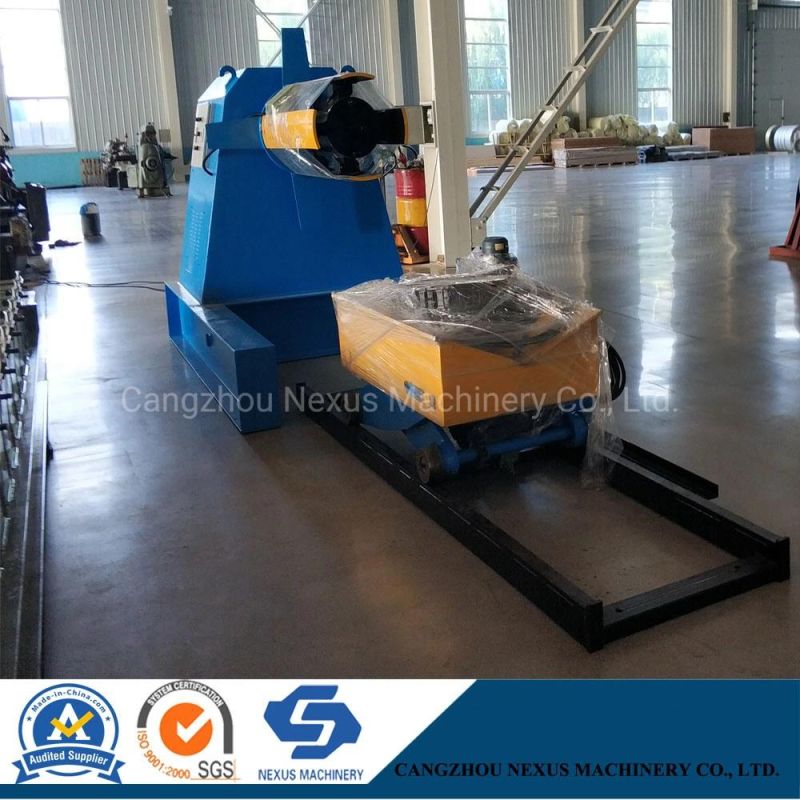

4. Photos of 5T/8T/10T Hydraulic Decoiler Uncoiler with Coil Car for Metal Forming Machine for Reference:
5t/8t/10t Hydraulic Decoiler Uncoiler with Coil Car for Metal Forming Machine5t/8t/10t Hydraulic Decoiler Uncoiler with Coil Car for Metal Forming Machine5t/8t/10t Hydraulic Decoiler Uncoiler with Coil Car for Metal Forming Machine
