• Model NO.：LY6-50
• Input Voltage：380V 50Hz
• Input Power：2.2kw
• Motor Rotation Speed：1420r,Min
• Max. Punch Pressure：60 Kn
• Travel：60 mm
• Max Closing Height：185mm
• Weight：1200kg
• Overall Dimension：900*900*1380 mm
• Transport Package：Wooden Case
• Specification：1550*770*1280 mm
• Trademark：Yuefeng
• Origin：Jinan Shandong, China
• HS Code：8477800000
• Production Capacity：20 Sets,Month

Basic Info.

Model NO. LY6-50 Input Voltage 380V 50Hz Input Power 2.2kw Motor Rotation Speed 1420r/Min Max. Punch Pressure 60 Kn Travel 60 mm Max Closing Height 185mm Weight 1200kg Overall Dimension 900*900*1380 mm Transport Package Wooden Case Specification 1550*770*1280 mm Trademark Yuefeng Origin Jinan Shandong, China HS Code 8477800000 Production Capacity 20 Sets/Month

Product Description

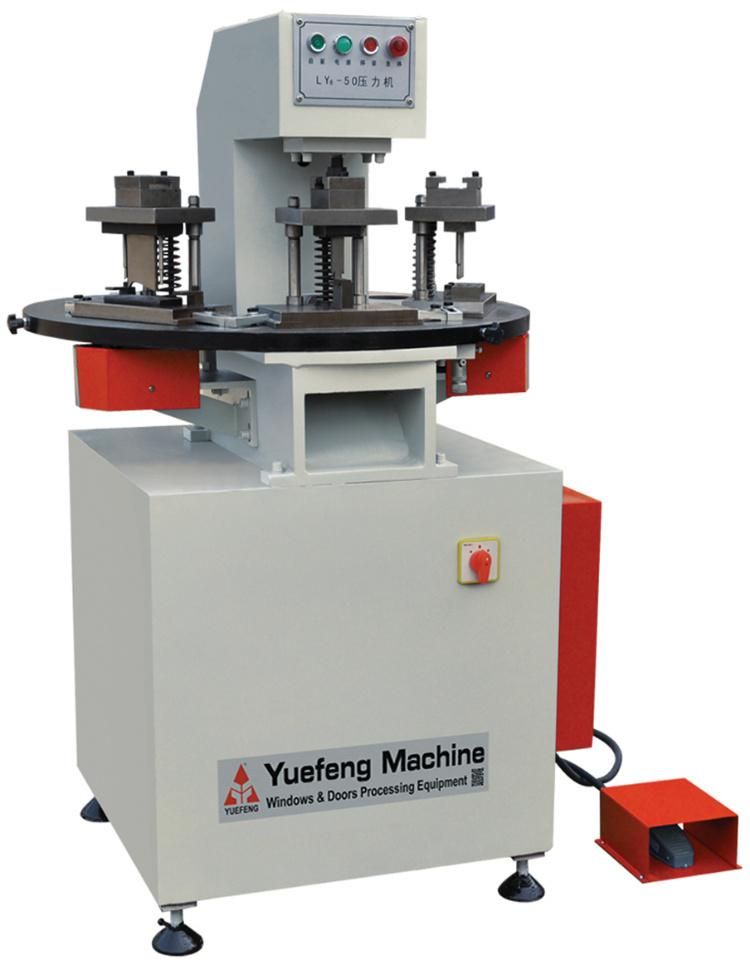

LY6-60   Aluminium Profiles Punching Machine
∧The machine used for punching bores process.
∧ Hydraulic power station ensures stability and power equality. Exchange combined mold conveniently.
∧ Disk-type worktable, can install six sets of moulds at the same time.
∧ Through rotating the worktable, change the different moulds, high efficiency.

Technical Parameter:

Model	LY6-60
Input voltage	380V 50Hz
Input power	2.2 kw
Motor rotation speed	1420r/min
Max. punch pressure	60KN
Travel	30mm
Max closing height	185mm
Overall dimension	900×900×1380mm
