• Model NO.：LJMJ-CNC-500D
• Input Voltage：380V 50Hz
• Input Power：3.8kw
• Air Pressure：0.5~0.8MPa
• Air Consumption：120L,Min
• Spindle Speed：3200r,Min
• Saw Blade Standard：500mm*4.4mm*30mm*Z120
• Saw Feeding Speed：0~3m,Min
• Cutting Height：120mm
• Auto Feeding Length：3~350mm
• Transport Package：Plastic Film or Depends on Customers
• Specification：1700*1600*1400mm
• Trademark：Yuefeng
• Origin：Jinan Shandong, China
• HS Code：8477800000
• Production Capacity：30 Sets,Month

Basic Info.

Model NO. LJMJ-CNC-500D Input Voltage 380V 50Hz Input Power 3.8kw Air Pressure 0.5~0.8MPa Air Consumption 120L/Min Spindle Speed 3200r/Min Saw Blade Standard 500mm*4.4mm*30mm*Z120 Saw Feeding Speed 0~3m/Min Cutting Height 120mm Auto Feeding Length 3~350mm Transport Package Plastic Film or Depends on Customers Specification 1700*1600*1400mm Trademark Yuefeng Origin Jinan Shandong, China HS Code 8477800000 Production Capacity 30 Sets/Month

Product Description

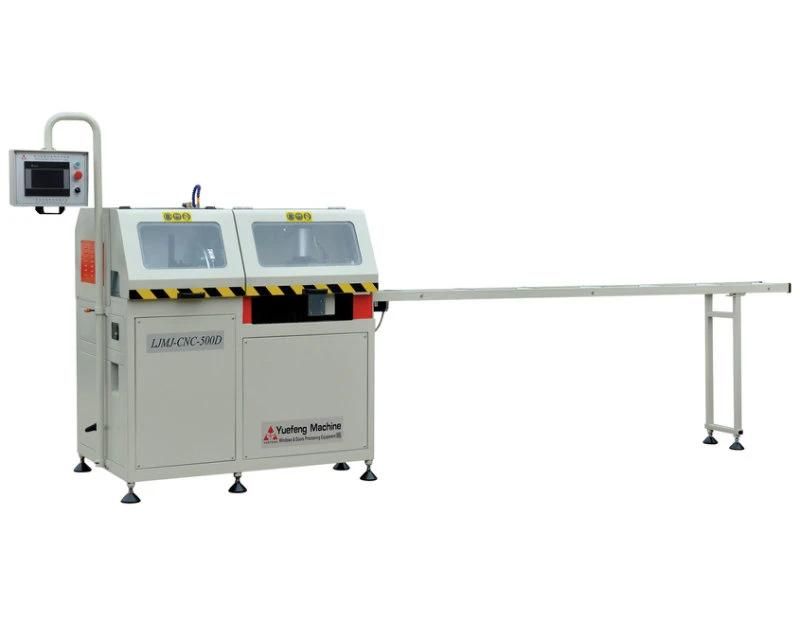

LJMJ-CNC-500D  Aluminum Window Corner Key Cutting Machine
>Used for cutting aluminum connectors.

> It controlled by ball screw and CNC system result high efficiency.

> Recording system record the numbers already cut.

> Automatic feeding system, can cut over-lengthy profiles.

> Imported carbide saw blade gives accurate processing, reliability and high durableness.

> Clamping and feeding process adopt pneumatic control, it has features of high automation, reliability and production efficiency.

Technical Parameter:


Model	LJMJ-CNC-500D
Input voltage	380V 50Hz
Input power	3.8Kw
Air pressure	0.5~0.8MPa
Air consumption	120L/min
Spindle speed	3200r/min
Saw blade standard	φ500×4.4×φ30×Z120
Saw feeding speed	0~3m/min
Cutting height	120mm
Auto feeding length	3~350mm
Overall dimension	1700×1600×1400mm
