Qt4-30 Diesel Engine Concrete Block Making Machine Hollow Brick Machine
Linyi Chuangyun Import & Export Co., Ltd.- Certification：CE, ISO, SGS,Co,Coc,Pvoc,Soncap
- Customized：Customized
- Automatic Grade：Manual
- Type：Hydroforming
- Model：Qt4-30 Block Making Machine
- Machine Type：Paving Block Making Machine
Base Info
- Model NO.：QT4-30
- Workers：2-3 Operators
- Diesel Engine Brand：Changchai
- Machine Power：15HP , 11.5kw
- Hydraulic Pressre：16MPa
- Working Area：400-1000m2
- Machine Operation：Easy and No Need Special Training
- Machine Capacity：2000-5000 Blocks , Day
- Why Choose：Easy Operation & Easy Maintenance
- Power Source：Diesel Engine , Electric Motor
- Warranty：1 Year
- Block Type：Solid Blocks, Pavers, Hourdis, Curbstones
- Feature：Hydraulic Diesel Block Machine
- Characterisitc：Cheapest Paving Block Machine
- Transport Package：Plywood Box with Iron Angle
- Specification：235 steel for machine frame
- Trademark：CYUN
- Origin：China
- HS Code：8474802000
- Production Capacity：5000 Sets ,Year
Description
Total: QT4-30 block making line total power is 20HP
Main technical parameter
QT4-30 diesel hydraulic paving block machine technical parameter
Theoretical production capacity

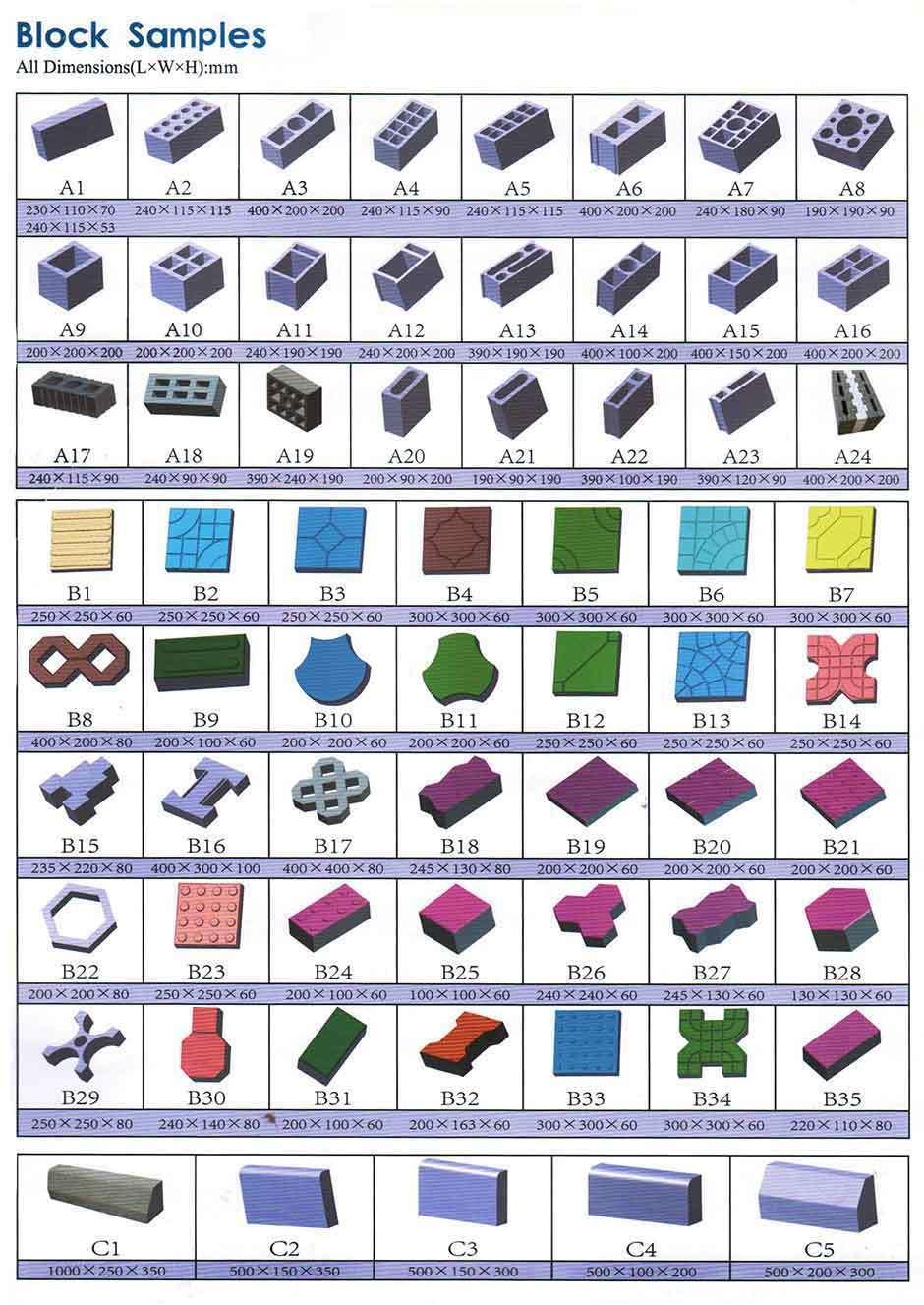

The machine can change moulds to produce different sizes of concrete blocks and paving blocks by changing moulds. Paver block with color face also available. Here are some products.
3. Worker Numbers : 4-5 Workers
Two Workers to load material into mixer
One Worker to operate block machine and add pallet to block machine
One or Two Workers to carry fresh blocks to curing sites.
4. Factory Area for QT4-30 cement brick making line: 600-1000M2
Shelter for Machines: 30M2 (6*5mm)
5. Pallet Number: 600pcs pallet for QT4-30 diesel hydraulic hollow brick machine.
Bamboo pallet, fiber (GMT) pallet and PVC pallet are available. According to Experiences and Feedback from our customers, we recommend you the Fiber Pallet:
Main technical parameter
QT4-30 diesel hydraulic paving block machine technical parameter
| Dimension of host machine | 1440x1330x1720 (LxWxH) |
| total machine power | 13.34 kW(18.0 HP) 2200 r/min |
| cycle per mould | 30s |
| Dimension of diesel engine hydraulic station | 1400x900x1320mm (LxWxH) |
| Diesel engine specification | Changchai ZS1105 |
| Weight | 1300KGS |
| Pallet size | 850x450x25mm |
| Block type | block, paver, curbstone and so on |
| Oil consumption | 2L/H |
| Diesel engine starting mode | Electric start |
| Rated pressure | 15Mpa |
| Vibration force | 30KN |
Theoretical production capacity
The machine can change moulds to produce different sizes of concrete blocks and paving blocks by changing moulds. Paver block with color face also available. Here are some products.
| Size(LxWxH) | Pcs/Mould | Pcs/Hour | Pcs/Shift |
| 400x200x200mm hollow | 4 | 480 | 3840 |
| 400x100x200mm hollow | 7 | 840 | 6720 |
| 400x150x200mm hollow | 5 | 600 | 4800 |
| 400x250x200mm hollow | 3 | 360 | 2880 |
| 200x160x60mm paver | 12 | 1440 | 11520 |
| 245x130x60mm paver | 9 | 1080 | 8640 |
| 200x100x60mm paver | 16 | 1920 | 15360 |
| 415x300x100mm curb | 2 | 240 | 1920 |
3. Worker Numbers : 4-5 Workers
Two Workers to load material into mixer
One Worker to operate block machine and add pallet to block machine
One or Two Workers to carry fresh blocks to curing sites.
4. Factory Area for QT4-30 cement brick making line: 600-1000M2
Shelter for Machines: 30M2 (6*5mm)
5. Pallet Number: 600pcs pallet for QT4-30 diesel hydraulic hollow brick machine.
Bamboo pallet, fiber (GMT) pallet and PVC pallet are available. According to Experiences and Feedback from our customers, we recommend you the Fiber Pallet:
