• Model NO.：CSHQX-2
• Air Consumption：500L,Min
• Profile Height：30-130mm
• Profile Width：30-120mm
• Welding Range Min.：500*650mm
• Welding Range Max.：1800*3000mm
• Dimension：13000*5500*1900mm
• Weight：5000kg
• Transport Package：Standard
• Specification：CSHQX-2
• Trademark：Truepro
• Origin：China
• HS Code：846599
• Production Capacity：500sets,Year

Basic Info.

Model NO. CSHQX-2 Air Consumption 500L/Min Profile Height 30-130mm Profile Width 30-120mm Welding Range Min. 500*650mm Welding Range Max. 1800*3000mm Dimension 13000*5500*1900mm Weight 5000kg Transport Package Standard Specification CSHQX-2 Trademark Truepro Origin China HS Code 846599 Production Capacity 500sets/Year

Product Description

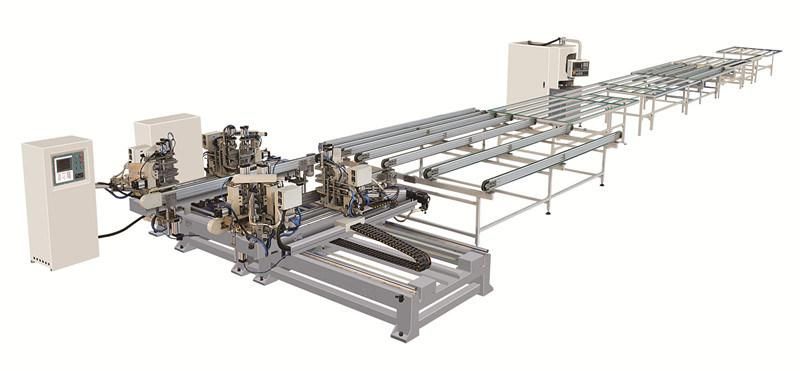

Automatic PVC/UPVC window door welding and cleaning production line


Equipment Features
Feature auto welding and cleaning:
--For the frame or sash auto welding and cleaning, composed of welding unit, manipulator and corner cleaning unit etc.
--Servo control system and industrial PC with window XP system.
--Communicate data with the control computer, auto program and auto select processing programs.
--Read data from bar code reader.
Feature of welding unit:
--Horizontal structure arrangement for the stable running.
--High processing precision and stable.
--Automatic size compensation.
--Easy-change for special fixture, increased corner strength.
--Steel stand and low center of gravity ensured stable welding.
Technical Parameter

Air pressure	0.5-0.8Mpa
Air consumption	500L/min
Input voltage	380v/220v 50Hz
Input power	14.5kw
Processing profile height	30-130mm
Processing profile width	30-120mm
Welding range	500 x650mm  1800 x3000mm
Overall dimension	13000 x5500 x1900mm
Weight	5000kg

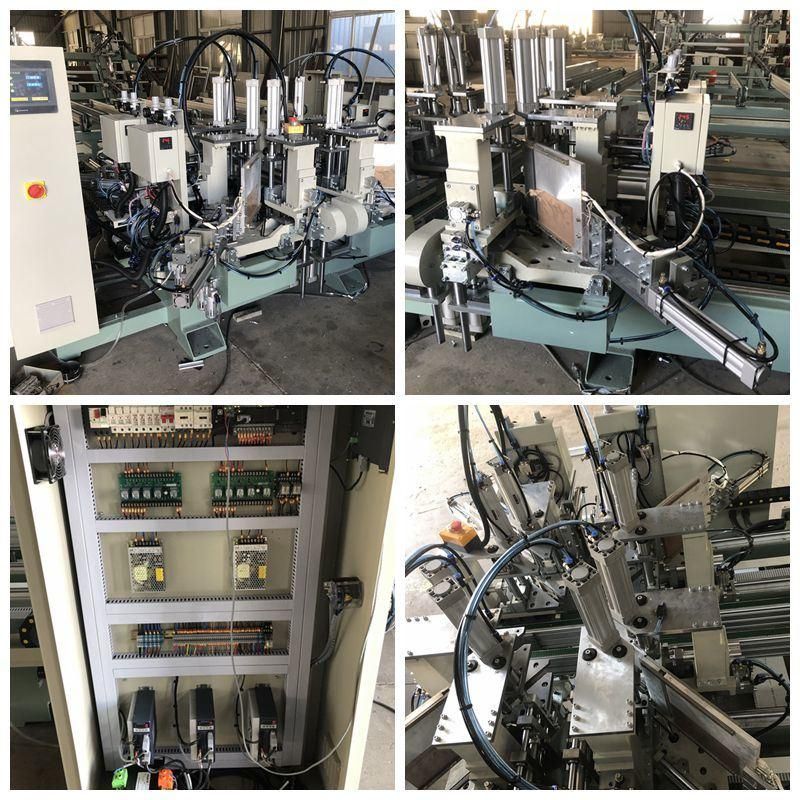

Machine details:





Jinan Truepro is a manufacturer of window machine, insulating glass processing machine and curtain wall machine with
well-equipped testing equipment and strong technical force. With a wide range, good quality, reasonable prices and stylish
designs, our products are extensively used in building trade and other industries. Hope we can cooperate with you.
We believe that "IT'S THE BEST THAT FITS MOST."
Every machine could be customized to meet your special requirement.




1. When can we arrange shippment?
We usually arrange shippment within 15 days after getting deopsit,
but customized machines should be more than 25 days.

2.What you can do if my machines have problems?
1) We can send you free components to you if your machines are in guarantee time.
2) We can dispatch our engineers to repair your machines

3.Do you provide equipment operation training?
A: Yes. We can send professional engineers to the working site for equipment installation, adjustment, and operation training.
All of our engineers have passport.

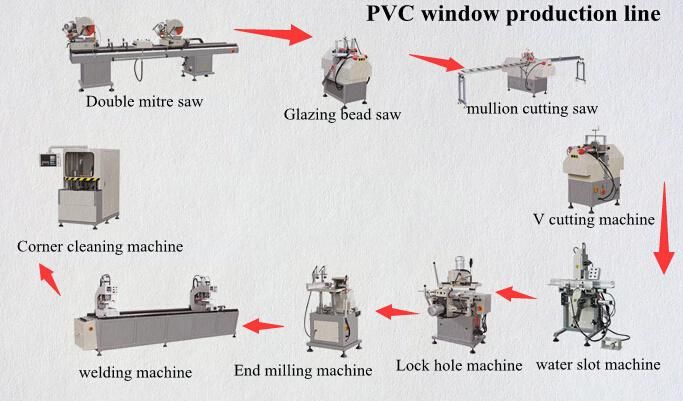

4. PVC window production line
