• Model NO.：LJXG-300*200
• Voltage：380V
• Motor Power：2.2kw
• Motor Speed：18000r,Min
• Working Pressure：0.6-0.8MPa
• Copy Routing Range：330X220mm
• Profile Section：300X100mm
• Diamension：3000X800X1600mm
• Weight：350kg
• Transport Package：Wooden Case
• Specification：3000x800x1600mm
• Trademark：SETH
• Origin：Shandong. China

Basic Info.

Model NO. LJXG-300*200 Voltage 380V Motor Power 2.2kw Motor Speed 18000r/Min Working Pressure 0.6-0.8MPa Copy Routing Range 330X220mm Profile Section 300X100mm Diamension 3000X800X1600mm Weight 350kg Transport Package Wooden Case Specification 3000x800x1600mm Trademark SETH Origin Shandong. China

Product Description

Jinan SETH Intelligent Equipment Co.Ltd.

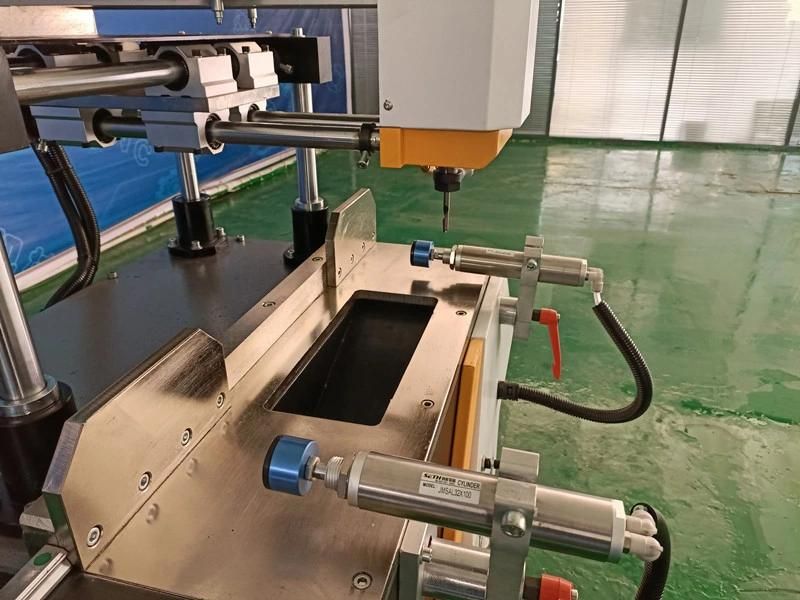

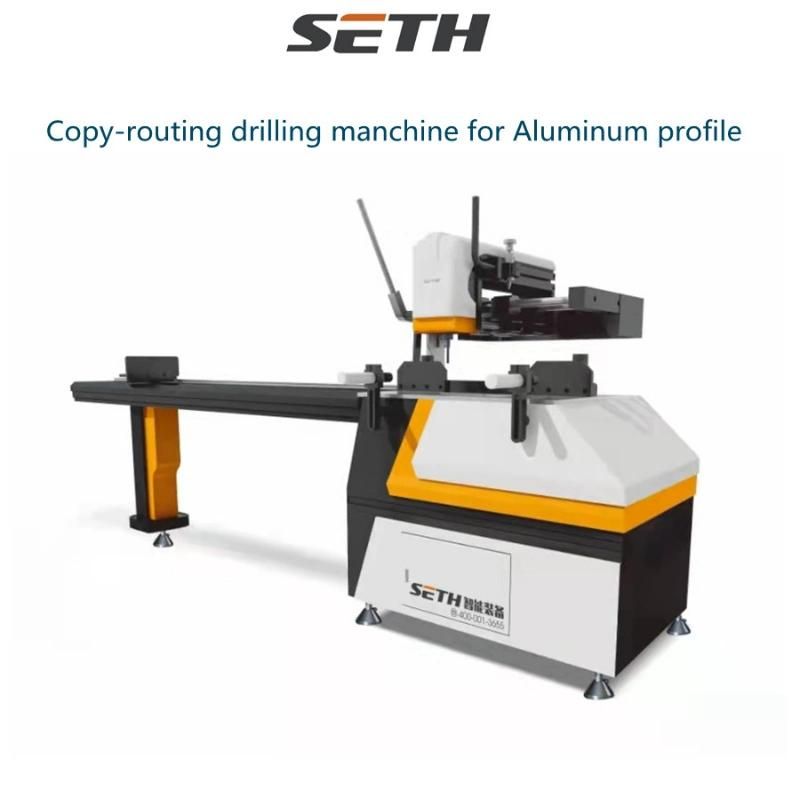

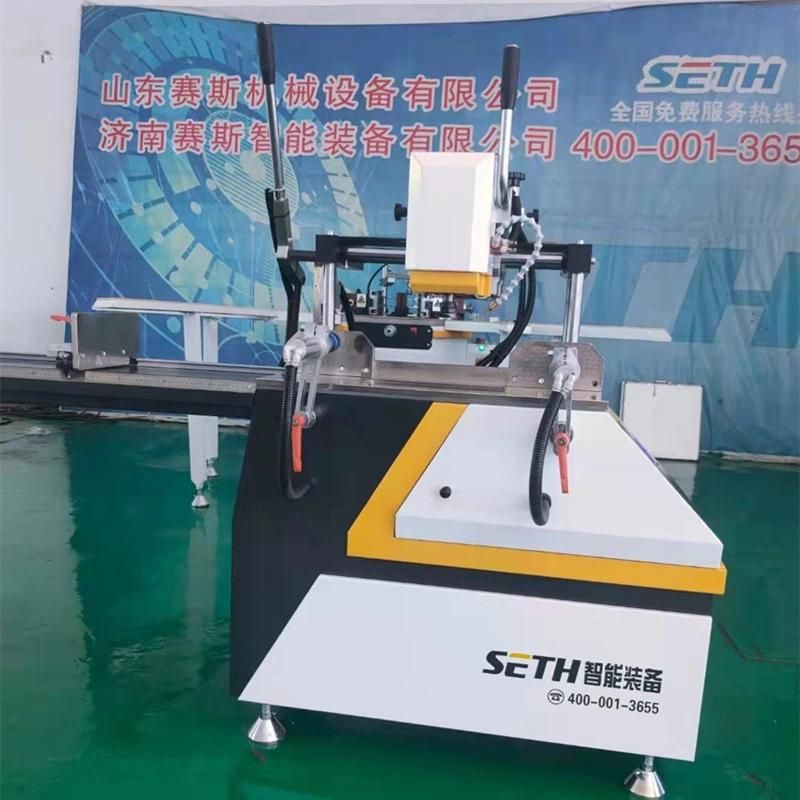

High Speed Spindle copy-routing Drilling Machine
1.Feature:  1.It is suitable for copying all kinds of holes, tenons  and grooves of aluminum profiles.
 2.Precision machining of linear guide rail makes the milling cutter move stably and flexibly and operate
   easily.
 3.The advanced milling cutter chuck is selected to match with the imported air-cooled integrated
    electric spindle, which makes the milling cutter clamping simple and convenient.
 4.Excellent air-oil filter atomization cooling system makes milling effect better.
2.Technical Parameters

Power supply	380V/50Hz
Power supply	2.2kW
Motor speed	18000r/min
Working pressure	0.6~0.8MPa
air consumption	2L/min
copy-routing range	300x220mm
milling cutting diameter	Ф6 Ф12mm
profile section	300x100mm
Overall dimension	3000x800x1600mm
weight	350kgs

3.Company profile:

Jinan SETH Intelligent Equipment Co.ltd.

Jinan SETH intelligent equipment co., ltd. specializes in the production of aluminum,upvc window and door machine,curtain wall and hollow glass processing machine equipment that can meet the needs of different clients, and can also be customized according to customer requirements of different grades of products.
The company has rich experience in production and more than 10 national patents and passed ISO9001,SGS,CE certifications, excellent product design and development engineers, skilled production engineers, experienced production management team and after-sales service that providing you with a strong guarantee.
our main products including aluminum&uPVC profile machining center, saw machine ,milling machine,welding machine,corner cleaning machine.corner crimping machine,punching&drilling machine.
Customer is the foundation, the company in line with the " quality first, customer first" principle, Please join hands with SETH to lead intelligence.

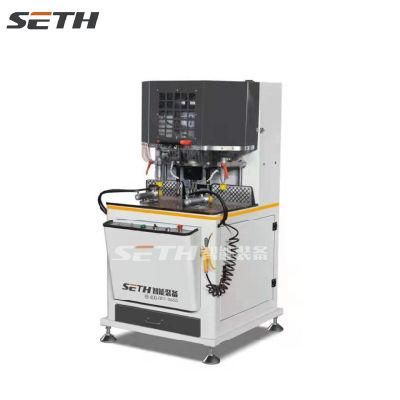

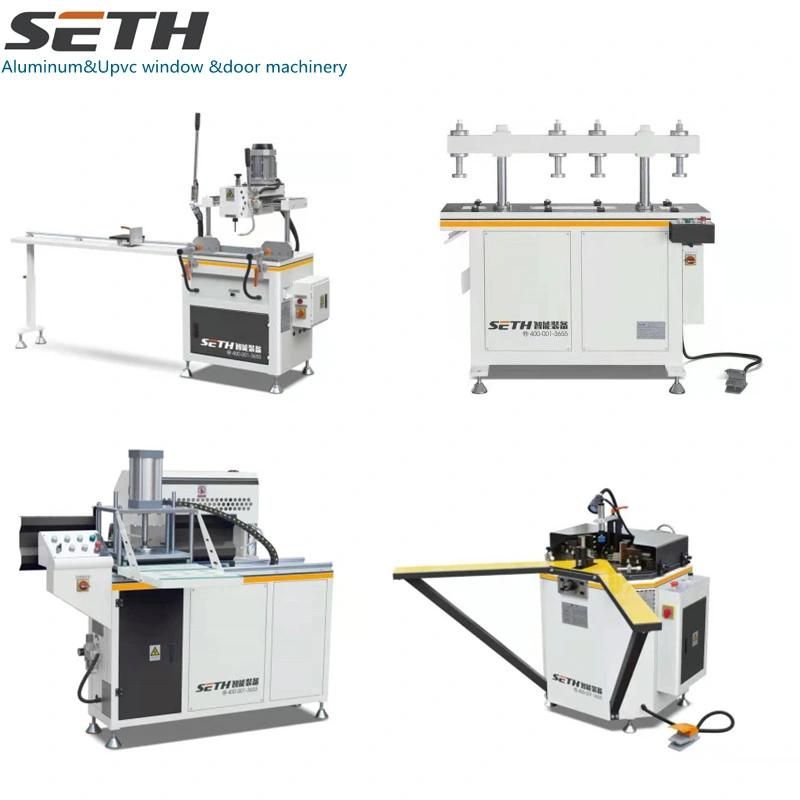

4.Hot selling:5.Package and delivery:6.Our Advantages:
Using newest technology
professional Technical & Engineering experts
10+ Years Experience
Realiable & Safe machine
Reasonable price
7.FAQ:   Q: Is SETH a manufacturer or trading company?
   A: We are the manufacturer and seller at the same time.SETH is one PROFESSIONAL window machine       company in china.

  Q: SETH's main products?
  A: Aluminum window machines: CNC cutting center, double miter saw, end milling machine, CNC milling  machine,   aluminum punching machine, end milling machine, copy router and corner connector saw, etc; Wood window machines: wood saw, wood window frame machine, vertical & horizontal drilling machine, dovtail making machine, wood planner, and tenon making machine, etc.
Q: SETH's  after-service?
   For Optional
A: 1option:
     we have engineers to install the machines and train your workers.
    Our customers should pay for our engineer's round trip tickets, board and lodging during testing and teaching,          subsidy USD70 per day.
   2 option:
    On-line Service and All documents and videos for Installation and train operation for free.

8.Certificates9.Exhibition
