Corrugated Aluminium Roofing Sheets Forming Machine Price
Cangzhou Nexus Machinery Co., Ltd.- Tile Type：Colored Steel
- Certification：CE, ISO
- Condition：New
- Customized：Customized
- Usage：Roof, Wall
- Transmission Method：Electric
Base Info
- Model NO.：NX80--300
- Raw Material：PPGI Sheet
- Thickness Range：0.3-0.8mm
- Machine Power：4kw+3kw
- Machine Weight：About 5 Tons
- Warrenty：12 Months
- Product Name：Wave Corrugated Roof Panel Roll Forming Machine
- Main Shaft Dia：70mm
- Material：45# Forge Steel and Quenched
- Roll Station：18 Groups
- Length Tolerance：1.5mm
- Transport Package：Plastic Film & Steel Wire Fixed
- Specification：6000mm*1500mm*1500mm(L*W*H)
- Trademark：NEXUS MACHINERY
- Origin：China
- HS Code：8455221000
- Production Capacity：30 Sets , Months
Description

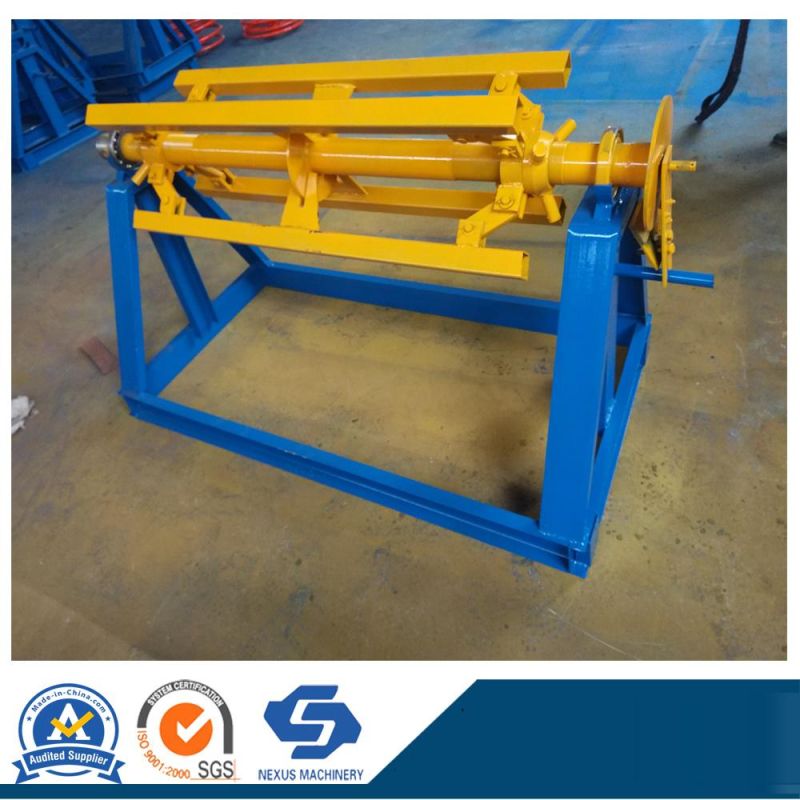

Manual decoilerCapacity 5ton Feeding width MAX 1300mm Expanding range 460-520mm

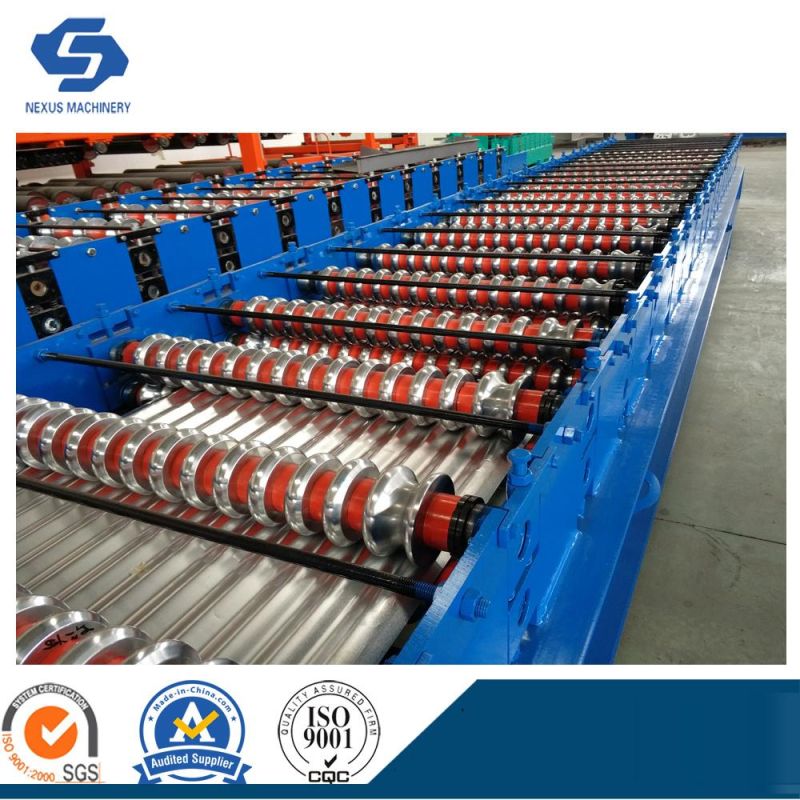

Corrugated aluminium roofing sheets forming machine price
4. Equipment list :
5. Character of main structure:
7. Why Choose US?
1. More than 10 years experiences in manufacturing roll forming machines.
2. We use Automatic control software to manage productive information makes the whole automatic control system has an improvement in automaticity.
3. High performance in operation, maintenance, and debugging. Easy to load and unload.
4. Good machine quality, Competitive price and Fast delivery time and superior service.
Corrugated aluminium roofing sheets forming machine price
| Main motor power | 4kw |
| Drive | 1'' single chain |
| Type: | wall panel |
| Main shaft dia | ¢70mm |
| material | 45# forge steel and quenched |
| Roller material | 45# high grade forge steel ,chrome coated 0.05mm |
| Roll station | 18 groups |
| Raw material | 0.3-0.8mm |
| Coil width | 1200mm |
| Working speed | 10m--15m/min(Exclude cutting time) |
| Length Tolerance | ±1.5mm |
| Weight of machine | About 5 ton |
| Size of machine | About 7500×1800×1500mm L x W x H |
| Color of machine | Yellow and Blue |
| Coder | Omron, made in Japan |
| Control | PLC Panasonic, made in Japan. 380V 50HZ,3phase (Also depend on client) |
| Computer operating panel | touching screen |
| Other electrical element | Schneider |
| Cutting | Hydraulic cutting. Auto cutting when reach the set length |
| Hydraulic power | 3KW |
| Blade material | Cr12mov,quenched 58°-62° |
| Working pressure | 16mpa |
| Cutting tolerance | +/- 1.0mm |
4. Equipment list :
| No. | Product Name | QTY |
| 1 | 5T Manual decoiler | 1 |
| 2 | 1064 Half Round Water Wave Corrugated Roof Panel Roll Forming Machine (Includes Hydraulic cutting, PLC computer, Electrical cabinet, Hydraulic system) | 1 |
| 3 | Passive Output table | 2 |
| Sum | 4 |
5. Character of main structure:
- The structure is simple and the appearance of the machine is beautiful because we adopt the shape-steel structure and most of the connectors are screw which make the machine flexible and stronger.
- All the components of machine are from brand-famous enterprise so that they ensure the machine normal function very effectively.
- We adopt the automatic length-fixed forming and cutting to guarantee the length to be precise and the finished product clear without deforming .
- It is very easy to install the equipment and suitable for producing in the factory.
- Low noise with high efficiency.
