Automatic Steel Machine Manufacture Omega Profile Drywall Machine Top Hat Roll Former
Frametec (Xiamen) Building Technology Co., Ltd.- After-sales Service：Engineers Oversea Support
- Warranty：1 Year
- Certification：CE, ISO9001, Icc, CSA, Saber & etc
- Customized：Customized
- Condition：New
- Control Type：CNC
Base Info
- Model NO.：LA10
- Automatic Grade：Automatic
- Working Material：Galvanized Sheet(Gi), Cold Roll Steel(CRC), Hot RO
- Motor：Servo Motor
- Yield Strength：235-440MPa
- Punching：Single Hole and Double Holes
- Thickness：1.5-3.0mm
- Width：50-250mm
- Flange：30-125mm
- Lips：10-40mm
- Cutter Material：Cr12MOV, Heat Treatment
- Control System：PLC
- PLC Brand：Japan Panasonic
- Decoiler：Manual,Hydraulic for Options
- Applilcation：Cold Forming Sectional Steel
- Forming Station：20 Stations
- Size Changing：Full-Automatic
- Transport Package：Naked
- Trademark：FrameTec
- Origin：China
- HS Code：8455221000
- Production Capacity：600 Sets,Year
Description
Machine Quick DetailsModel number: LA10 Omega Machine Condition: New Type: Other Roll Forming machine Brand Name: Frametec Max Production Capacity: 35M/min Power(W): 30KW Warranty: 1 year Place of Origin: China
Features of LA10 Omega Roll Forming Machine:
Our LA10 consists of decoiler, feeding and levelling device, punching system, pre-shear, roll forming system, hydraulic post cutting, run out table, hydraulic station and PLC(controlling system). Its special quick change feature: Assemble with liner guide way to make machine change web size easily and smoothly
Produce standard products with yield strength up to 440Mpa, Long production line, better profile shape control on final products; Time saving and labor saving, which is highly improved production efficiency and suitable for current production. This machine is easy to operate and run stable with good precision.

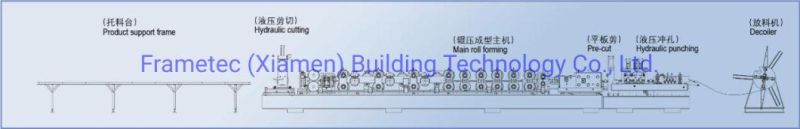

Flow chart: De-coiler - Leveling device -- pre- punching and pre-cutting - roll forming parts - stack
Main features of quickly change CZ purlin roll forming machine
The Advantages of CZ purlin machine AUTOMATIC size-change type are as follows:
1.Produce different purlin size(50-250mm) without changing rollers or spacers.
2.No need changing cutter for different size.
3.Easy operation, low maintenance cost
4.Infinite sizing(any size within machine range),help to save material
5.Optional Punch hole at any position of purlin web side and flange side
Main Components:

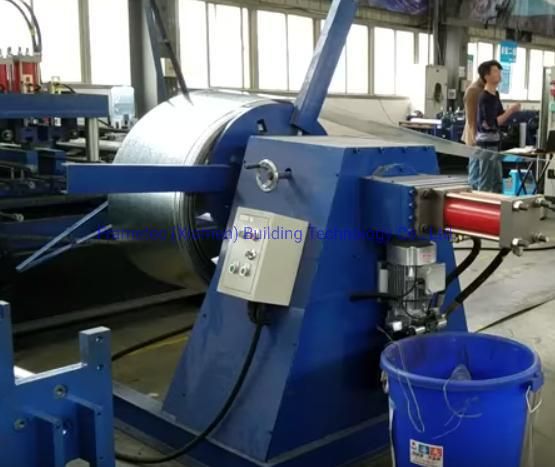

1. Manual De-coiler or Hydraulic Decoiler optional
De-coiler Type: automatic fasten and loosen
Weight capacity: 6T
2. Feeding and Leveling Device:
It used for making the material flat before feeding into the roll forming machine.
3.Pre-punching device
Punch on flat sheet. PLC control punch quantity and horizontal position; vertical position adjust by manual.
Web punching quantity& size: as per customer`s requirement
Flange punching quantity&size: as per customer`s requirement
Punching bar and punching die can be changed easily

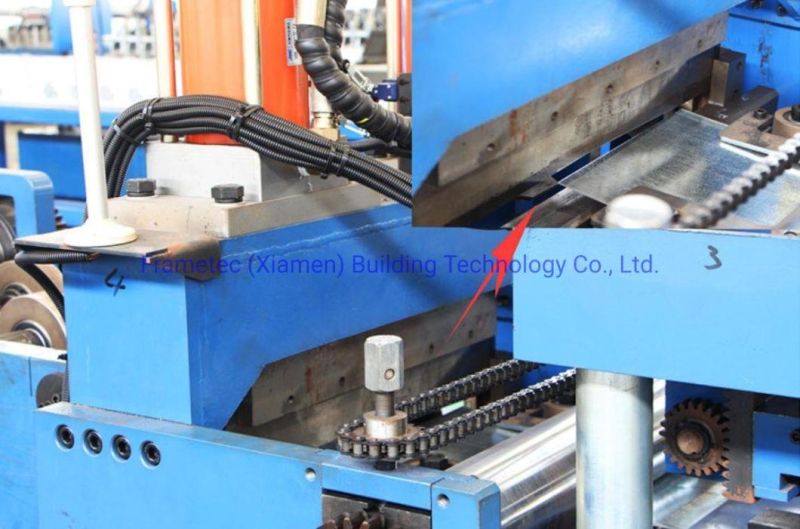

4.Pre-cutting device
It used to cut raw materials before roll forming
5.Main roll former
Main motor type: Servo motor
Tolerance +-1mm
Driving Type: 24A double Chain
Main motor power: 30 KW*1 set
Speed of forming: 12-18m/min (28m/min without punching holes)

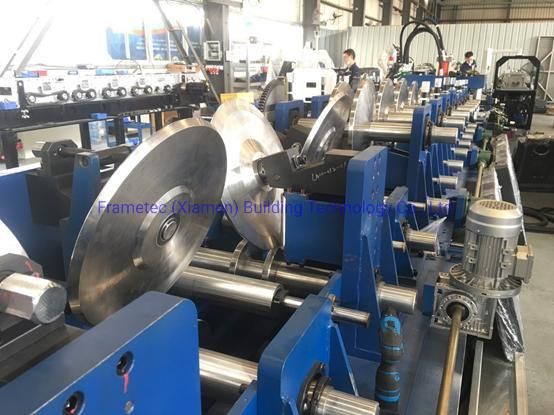

Roller: 20 groups rollers. Main rollers of this line are made by Cr12 mould steel material, all treated by full CNC precision machines,Heat treatment to HRC58-60 after CNC machining, fine turning
Shaft: Shafts of rollers are tooled by grinding machine for two times to ensure the precision of final product.
6.Hydraulic Cutting
One size requires one cutter blade
Cutting material: Cr12
Cr12MoV Cr12(total three blades)
Hydraulic motor power: 11 KW
Hydraulic Pressure: 16Mpa
7.Product Support Frame -1set 6 meter

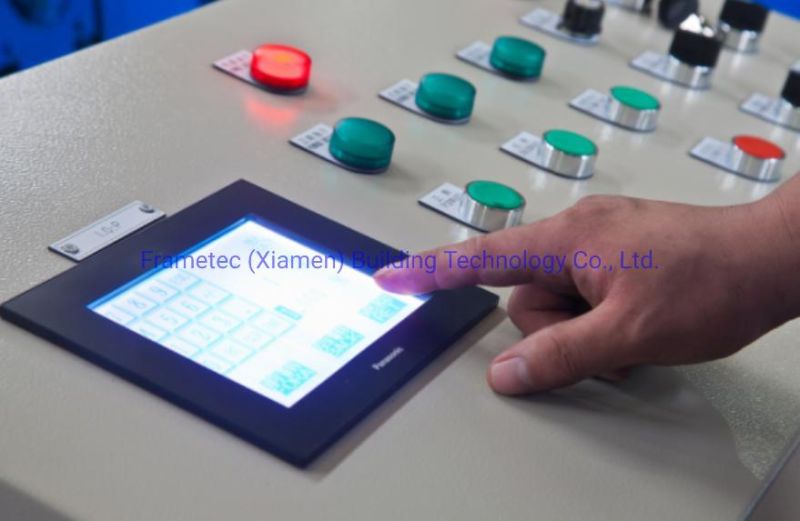

8.PLC Control System
Control the quantity &punching length& cutting length automatically
The Machine will be stopped while it is punching and cutting
Automatic Length measures and quantity counting (precision +- 1mm)

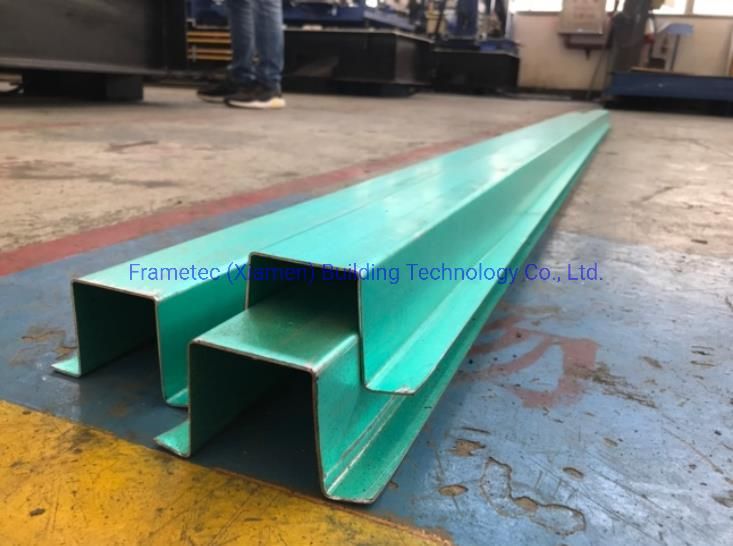

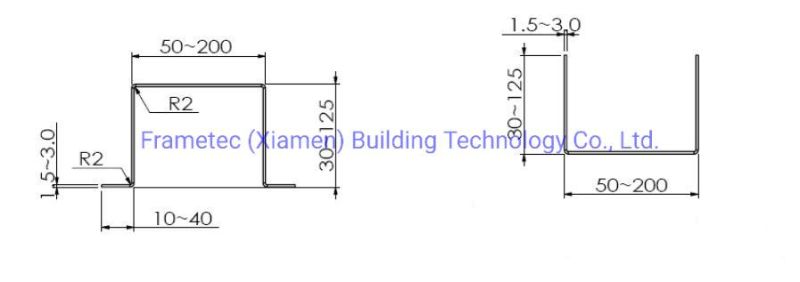

Profile effect:

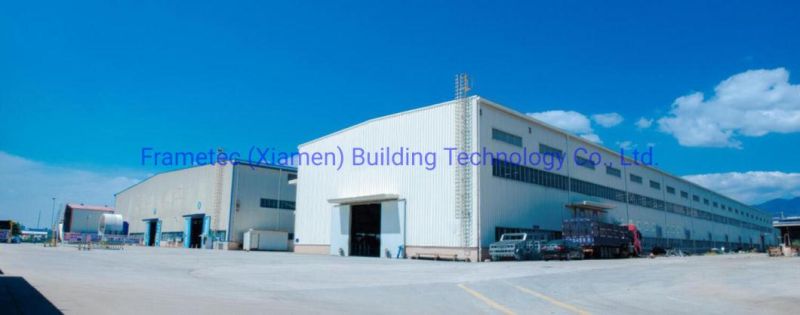

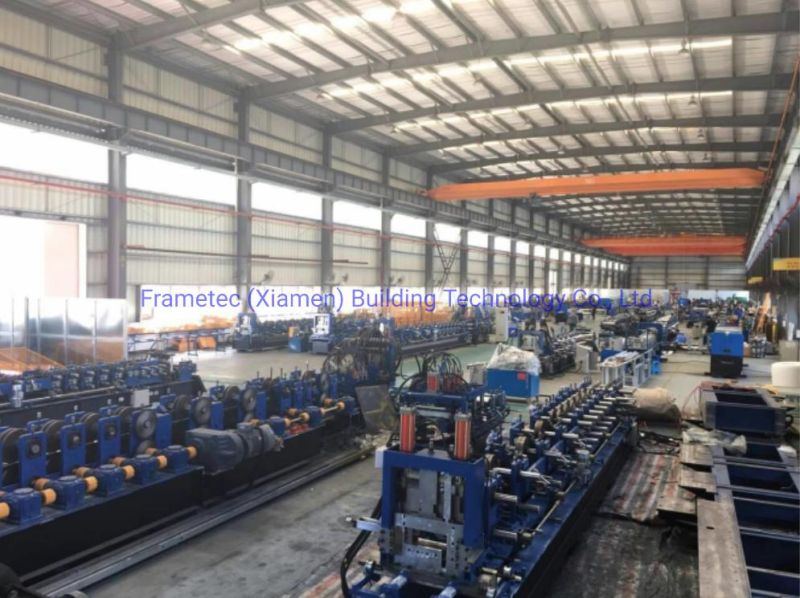

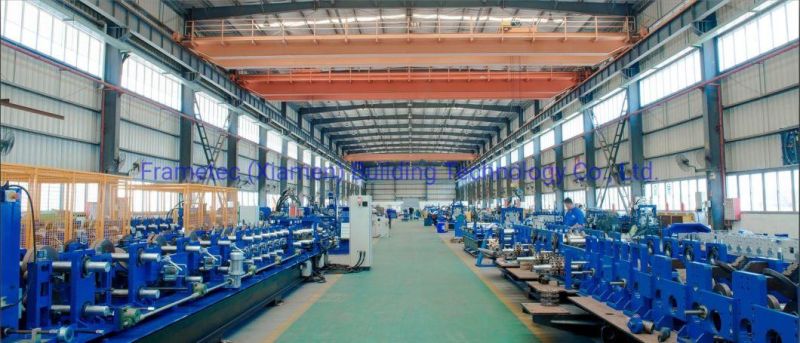

Our Factory
Why Choose us:
13+ years manufacturing experience in CZ purlin roll former
Competitive price and good quality
One year free warranty
Fast response of after sale service
Auto web size changing from 80mm to 350mm in 2 minutes
Can be customized by clients' requirements
Easy operate and easy to maintain
Self-developed of post cutter, one blade to cutter all size of final products
Features of LA10 Omega Roll Forming Machine:
Our LA10 consists of decoiler, feeding and levelling device, punching system, pre-shear, roll forming system, hydraulic post cutting, run out table, hydraulic station and PLC(controlling system). Its special quick change feature: Assemble with liner guide way to make machine change web size easily and smoothly
Produce standard products with yield strength up to 440Mpa, Long production line, better profile shape control on final products; Time saving and labor saving, which is highly improved production efficiency and suitable for current production. This machine is easy to operate and run stable with good precision.
Flow chart: De-coiler - Leveling device -- pre- punching and pre-cutting - roll forming parts - stack
Main features of quickly change CZ purlin roll forming machine
The Advantages of CZ purlin machine AUTOMATIC size-change type are as follows:
1.Produce different purlin size(50-250mm) without changing rollers or spacers.
2.No need changing cutter for different size.
3.Easy operation, low maintenance cost
4.Infinite sizing(any size within machine range),help to save material
5.Optional Punch hole at any position of purlin web side and flange side
Main Components:
1. Manual De-coiler or Hydraulic Decoiler optional
De-coiler Type: automatic fasten and loosen
Weight capacity: 6T
2. Feeding and Leveling Device:
It used for making the material flat before feeding into the roll forming machine.
3.Pre-punching device
Punch on flat sheet. PLC control punch quantity and horizontal position; vertical position adjust by manual.
Web punching quantity& size: as per customer`s requirement
Flange punching quantity&size: as per customer`s requirement
Punching bar and punching die can be changed easily
4.Pre-cutting device
It used to cut raw materials before roll forming
5.Main roll former
Main motor type: Servo motor
Tolerance +-1mm
Driving Type: 24A double Chain
Main motor power: 30 KW*1 set
Speed of forming: 12-18m/min (28m/min without punching holes)
Roller: 20 groups rollers. Main rollers of this line are made by Cr12 mould steel material, all treated by full CNC precision machines,Heat treatment to HRC58-60 after CNC machining, fine turning
Shaft: Shafts of rollers are tooled by grinding machine for two times to ensure the precision of final product.
6.Hydraulic Cutting
One size requires one cutter blade
Cutting material: Cr12
Cr12MoV Cr12(total three blades)
Hydraulic motor power: 11 KW
Hydraulic Pressure: 16Mpa
7.Product Support Frame -1set 6 meter
8.PLC Control System
Control the quantity &punching length& cutting length automatically
The Machine will be stopped while it is punching and cutting
Automatic Length measures and quantity counting (precision +- 1mm)
Profile effect:
Our Factory
Why Choose us:
13+ years manufacturing experience in CZ purlin roll former
Competitive price and good quality
One year free warranty
Fast response of after sale service
Auto web size changing from 80mm to 350mm in 2 minutes
Can be customized by clients' requirements
Easy operate and easy to maintain
Self-developed of post cutter, one blade to cutter all size of final products
