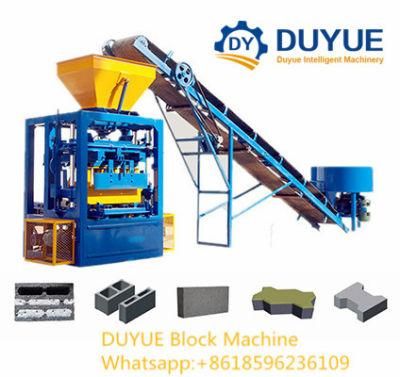

German Technology Qt4-24 Semi Automatic Hollow /Solid /Paver/ Concrete Brick Block Making
Linyi Duyue Import and Export Co., Ltd.- Certification:CE, ISO, Son
- Customized:Customized
- Automatic Grade:Semiautomatic
- Type:Hydraulic Shock
- After-Sales Service Provided:Engineers Available to Service Machinery Overseas
- Vibration Force:35.5kn
Base Info
- Model NO.:Qt4-24
- Shaping Cycle:20-24s
- Pallet Size:850*550*25mm
- Mixer Model:Jq350
- Total Weight:3000 Kgs
- Block Type:Solid Hollow and Paver Blocks
- Motor:Siemens Brand Motors
- Mould Technology:Heat Treatment
- Color:as Your Request

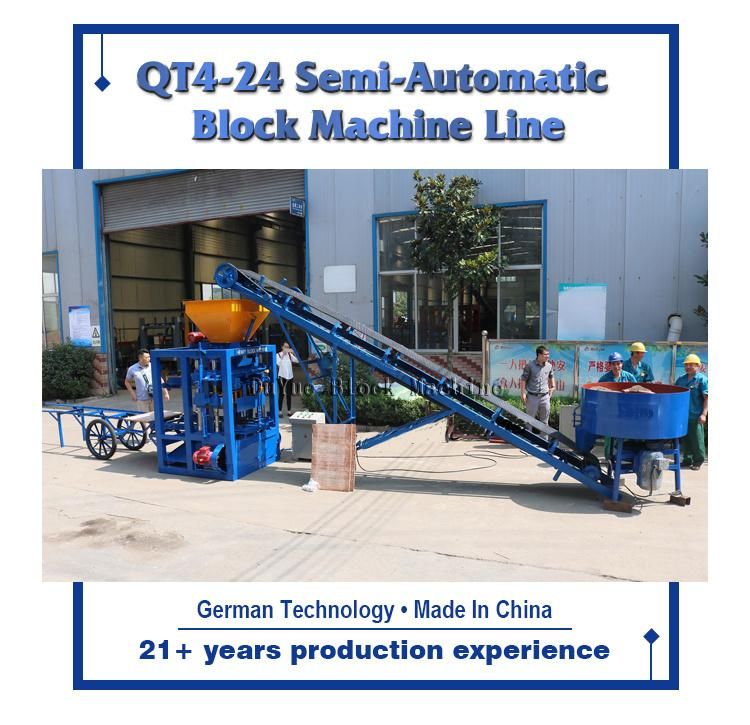

- Name:Qt4-24 Semi-Automatic Block Machine Line
- Transport Package:Container
- Specification:2060*1730*2580mm
- Trademark:DUYUE
- Origin:China (Mainland)
- HS Code:8474802000
Description
Basic Info.
Model NO. Qt4-24 Shaping Cycle 20-24s Pallet Size 850*550*25mm Mixer Model Jq350 Total Weight 3000 Kgs Block Type Solid Hollow and Paver Blocks Motor Siemens Brand Motors Mould Technology Heat Treatment Color as Your Request Name Qt4-24 Semi-Automatic Block Machine Line Transport Package Container Specification 2060*1730*2580mm Trademark DUYUE Origin China (Mainland) HS Code 8474802000Product Description
![German Technology Qt4-24 Semi Automatic Hollow /Solid /Paver/ Concrete Brick Block Making](http://www.923276.com/uploads/image/2021/99/c5/9f/1f/c1e3917edfae5e59e1ef7780b33988ba.jpg)
![German Technology Qt4-24 Semi Automatic Hollow /Solid /Paver/ Concrete Brick Block Making](http://www.923276.com/uploads/image/2021/a7/f5/6d/16/1ab62859979bdb756dbcacf39f69ea50.jpg)
Production description
1. Using the manual force control and jog control together, the operation is simple and efficient;
2. Using four polesoriented manner and ultralong orientation bear to ensure the precise movementof the pressure head and mould;
3. Using the ultra strong steel and special welding techniques,it is strong and of high resistancetovibration;

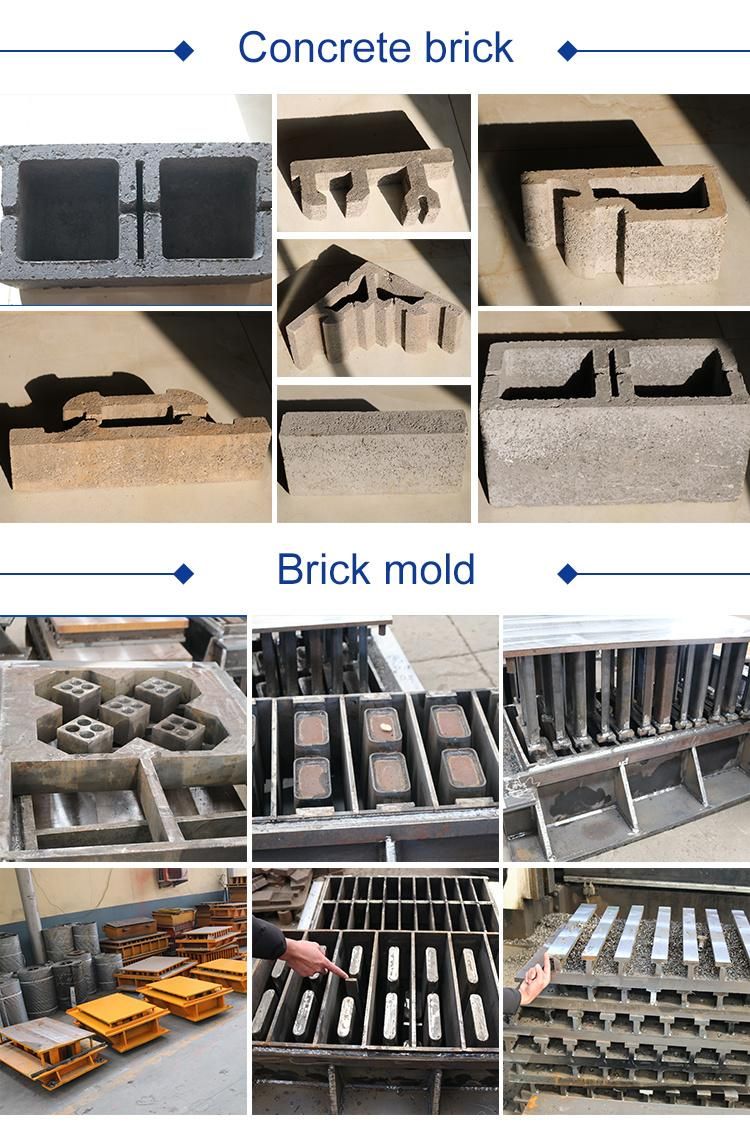

4. It is a multiuseful hollow block machine which could produce road blocks, curb stones, blocks,hollow bricks and other shapes of different specifications of concrete products via changing theblock mould;
5. imported electrical appliances, sealing parts and parts of hydraulic components, the equipment'scomprehensive performance is stable and reliable;
6. Using mechanical drive, it is a collection of compact structure, easy maintenance, operationflexible and good reliability;
7. The products which produced by semi-automatic block machine are all of high strength,gooddensity, good appearance,accurate size and regular shapes;
8. The semiautomatic block forming machine can achieve high eficiency if utilizing large dosage offly ash and slag,could save you more investment and give you a fast turnover.

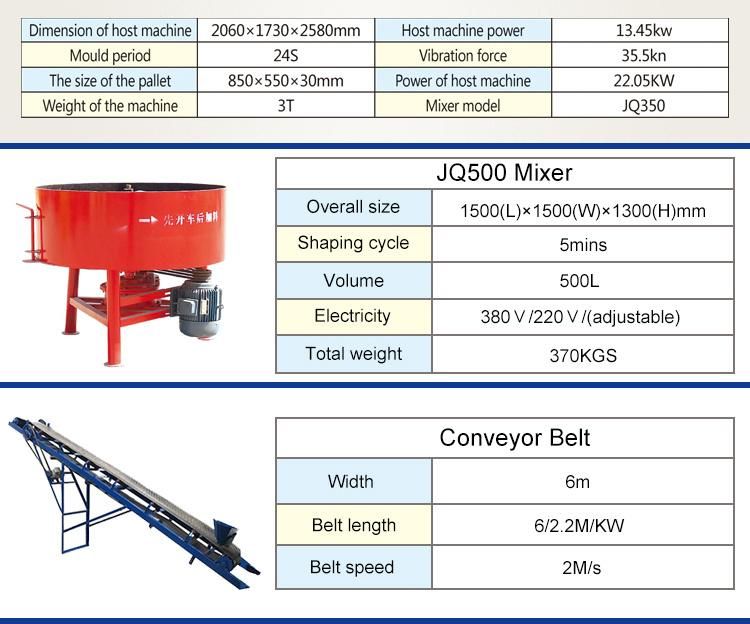

Main technical parameters
![German Technology Qt4-24 Semi Automatic Hollow /Solid /Paver/ Concrete Brick Block Making](http://www.923276.com/uploads/image/2021/f8/71/67/b8/41cf01bb9834617e0c796f16708a423d.jpg)

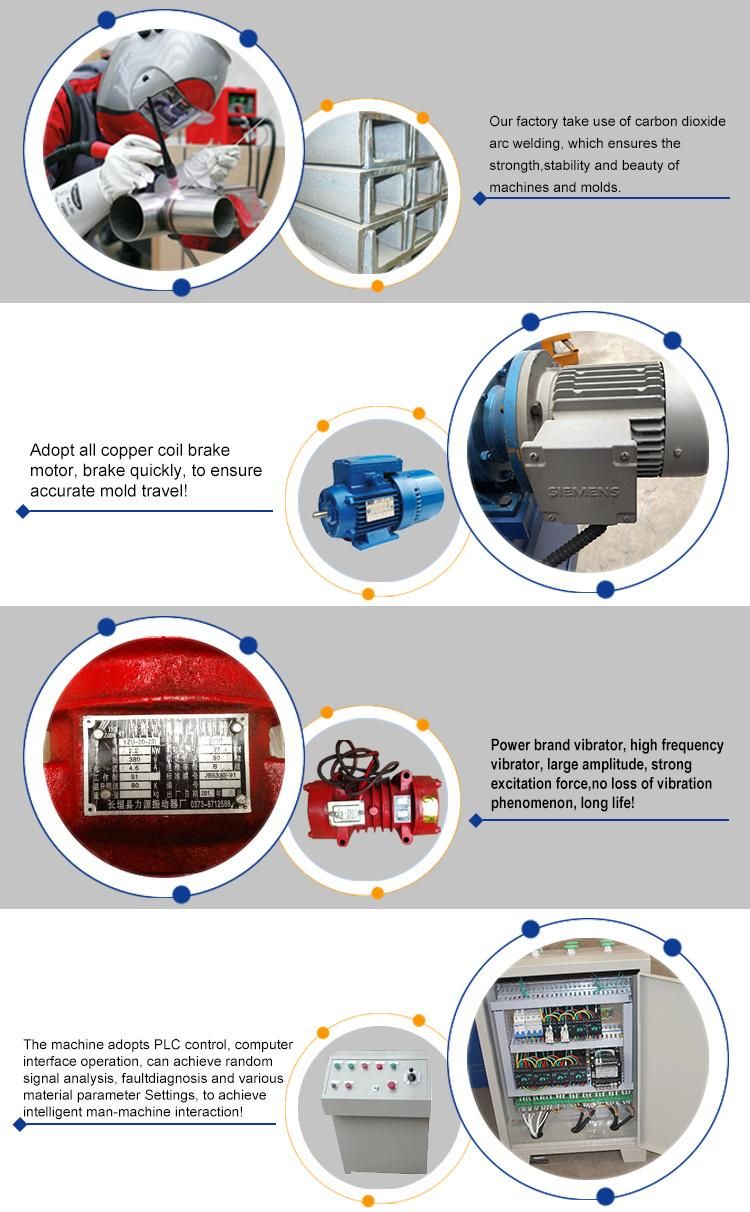

Product details
![German Technology Qt4-24 Semi Automatic Hollow /Solid /Paver/ Concrete Brick Block Making](http://www.923276.com/uploads/image/2021/1d/81/4c/17/dcce7b074de803b3ff75cf1c624ce884.jpg)
![German Technology Qt4-24 Semi Automatic Hollow /Solid /Paver/ Concrete Brick Block Making](http://www.923276.com/uploads/image/2021/c9/a7/0f/a9/ec070e2d7d168138c85e30116d9c9389.jpg)
![German Technology Qt4-24 Semi Automatic Hollow /Solid /Paver/ Concrete Brick Block Making](http://www.923276.com/uploads/image/2021/fe/c9/74/c2/0f5049eaca7b01481ccb0a7da8efad21.jpg)
![German Technology Qt4-24 Semi Automatic Hollow /Solid /Paver/ Concrete Brick Block Making](http://www.923276.com/uploads/image/2021/a4/27/57/07/d1cc3b5dfd3bfa608f85c8dcafd19631.jpg)
![German Technology Qt4-24 Semi Automatic Hollow /Solid /Paver/ Concrete Brick Block Making](http://www.923276.com/uploads/image/2021/6c/cd/4b/61/044c53a29e4d28be966b3b3f32b9bd96.jpg)
![German Technology Qt4-24 Semi Automatic Hollow /Solid /Paver/ Concrete Brick Block Making](http://www.923276.com/uploads/image/2021/57/41/b5/db/9c6b4271015d2e17d587fd5bc5d02da5.jpg)
Duyue Industry Co.,LTD
