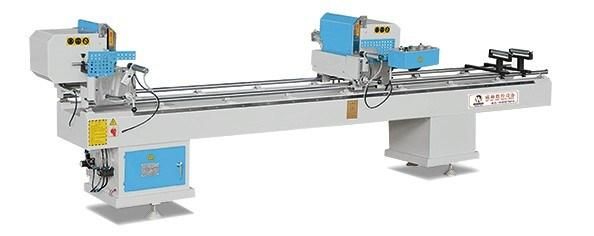

45 Degree and 90 Degree Automatic Cutting Aluminum Profile CNC Double Head Cutting Saw

Shandong Zunbo CNC Equipment Co., Ltd.
  • After-sales Service：Lifetime Maintenance
  • Warranty：1 Year
  • Condition：New
  • Certification：ISO, CE
  • Automatic Grade：Automatic
  • CNC or Not：CNC

Base Info

  • Model NO.：LJB2-400B
  • Voltage：380V
  • Numerical Control：CNC,Mnc
  • Performance Classification：MID-Range CNC Machine Tools
  • Application：Window
  • Specification：5200*1800*1500 mm
  • Trademark：Zunbo
  • Origin：China

Description

Basic Info.

Model NO. LJB2-400B Voltage 380V Numerical Control CNC/Mnc Performance Classification MID-Range CNC Machine Tools Application Window Specification 5200*1800*1500 mm Trademark Zunbo Origin China

Product Description

Product Description:

Model: LJB2-400B
Used for cutting of aluminum and plastic profile.
Impoded carbides blade is of accurate processing and high endurance.
The two heads can work alone or work together.
To cut out a section of desired length and two end angles.
Right head adopts motor drive.
Auto-opening shield maked the operation safety.


Technical Parameter:

Power source: 380V 50HZ
Input Power: 2.2KW
Working pressure: 0.6~0.8MPa
Air consumption: 100L/min
Cutting length: Max 3500mm min 450mm
Cutting width: max 120mm
Cutting thickness: max 105mm
Rotational speed: 2800r/min
Dimensions: 4000× 1120× 1450 mm
