• Model NO.：CLMG-120
• Input Power：1.5kw
• Rating Oil Pressure：15MPa
• Air Pressure：0.5-0.8MPa
• Motor Rotational Speed：1400r,Min
• Profile Max. Height：120mm
• Profile Width：90mm
• General Pressure of Corner Combining：48kn
• Machine Dimension：1300*1200*1300mm
• Weight：300kg
• Transport Package：Wooden
• Specification：CLMG-120
• Trademark：Truepro
• Origin：China
• HS Code：846510
• Production Capacity：500sets,Year

Basic Info.

Model NO. CLMG-120 Input Power 1.5kw Rating Oil Pressure 15MPa Air Pressure 0.5-0.8MPa Motor Rotational Speed 1400r/Min Profile Max. Height 120mm Profile Width 90mm General Pressure of Corner Combining 48kn Machine Dimension 1300*1200*1300mm Weight 300kg Transport Package Wooden Specification CLMG-120 Trademark Truepro Origin China HS Code 846510 Production Capacity 500sets/Year

Product Description

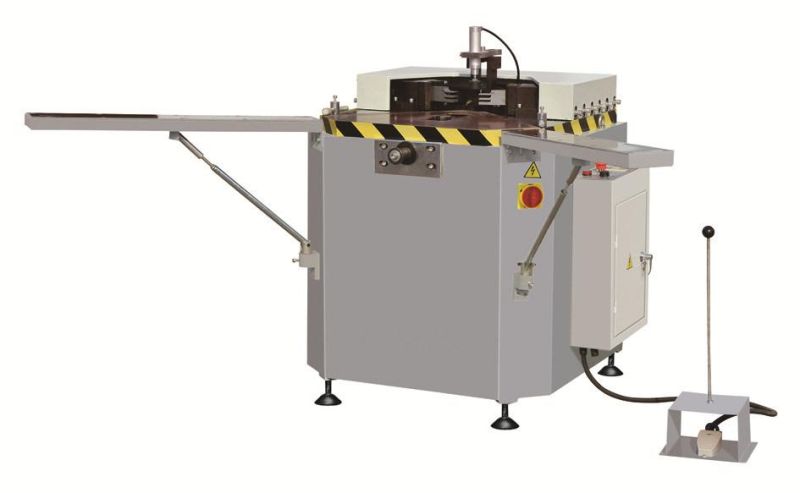

Single head corner crimping machine for fabricating aluminum windows and doors


Machine feature:
1.Adopts mechanical linkage structure, realizing completely synchronous corner crimping.
2. Inner corner location device adopt adjustable locating device. It is suitable for various sections and sizes.
Parameter:

Model	CLMG-120
Power Supply	380V/50HZ
Input Power	1.5KW
Air Pressure	0.6~0.8MPa
Motor Rotational Speed	1400r/min
Profile processing height	(Max)120mm
General pressure of corner combining	48KN
The adjustable range of the main location block	54mm
Air consumption	2L/min
Capability of oil box	20L
Corner crimping casing movement journey	85mm
Profile width	90mm
Connection seam error	≤0.15mm
Overall Dimension	1300*1200*1300mm
Weight	300Kg

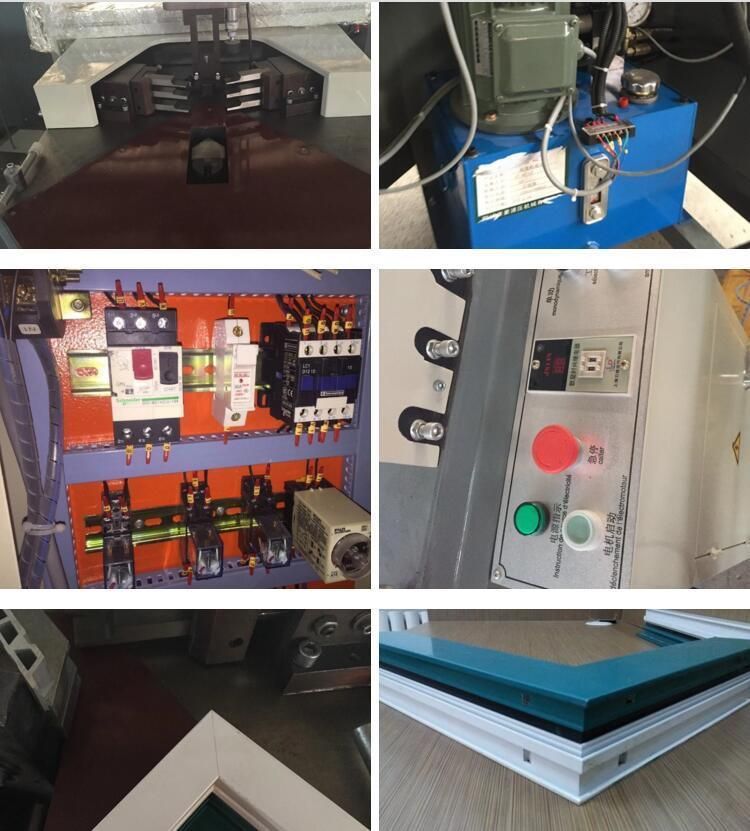

Machine details:



Jinan Truepro is a manufacturer of window machine, insulating glass processing machine and curtain wall machine with
well-equipped testing equipment and strong technical force. With a wide range, good quality, reasonable prices and stylish
designs, our products are extensively used in building trade and other industries. Hope we can cooperate with you.
We believe that "IT'S THE BEST THAT FITS MOST."
Every machine could be customized to meet your special requirement.




1. When can we arrange shippment?
We usually arrange shippment within 15 days after getting deopsit,
but customized machines should be more than 25 days.

2.What you can do if my machines have problems?
1) We can send you free components to you if your machines are in guarantee time.
2) We can dispatch our engineers to repair your machines

3.Do you provide equipment operation training?
A: Yes. We can send professional engineers to the working site for equipment installation, adjustment, and operation training.
All of our engineers have passport.

4. If I make Aluminum window and door, how many basic machines do i need?
1).double head cutting saw
2).Lock hole copy milling machine
3).End milling machine
4).Automatic Corner connector automatic cutting saw
5).Single head Corner combining machine
