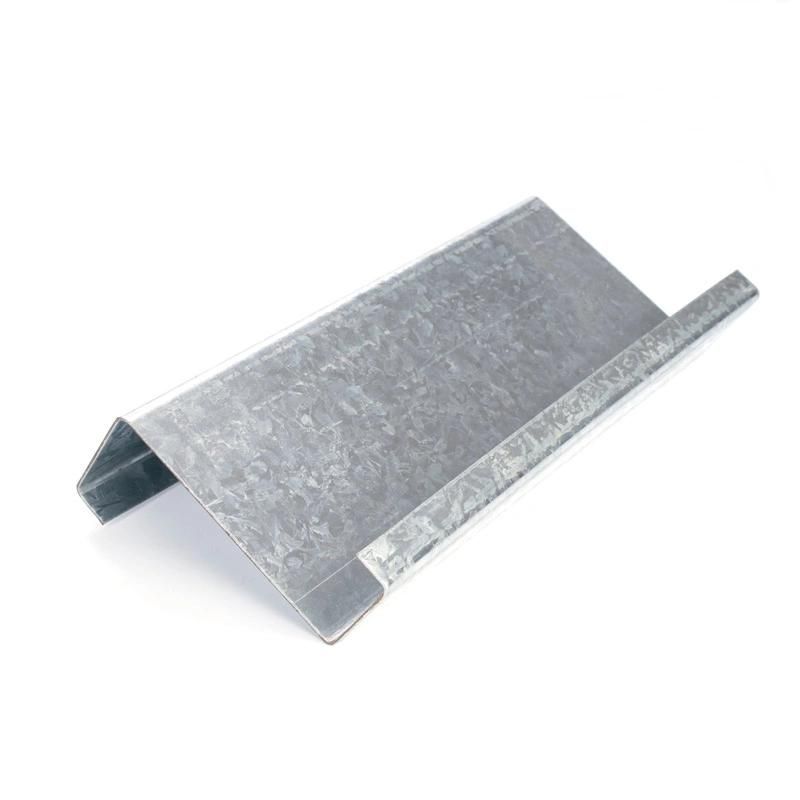

Sigma C Purlins Roll Forming Machine Unovo

Unovo Machinery Co., Ltd.
  • After-sales Service:We Provide Installation Service
  • Warranty:12 Months
  • Certification:CE, ISO
  • Condition:New
  • Customized:Customized
  • Transmission Method:Hydraulic Pressure

Base Info

  • Model NO.:UN011
  • Color:Blue Yellow
  • Material:Hot Roll Steel, Cold Roll Steel, Galvanized Steel
  • Thickness:1.8mm, 2.0mm, 2.5mm, 3.0mm
  • Transport Package:Directly Load Into Container Without Pack
  • Specification:100*80mm
  • Trademark:UNOVO
  • Origin:China
  • HS Code:8455229090
  • Production Capacity:20 Sets

Description

Overview Product Description

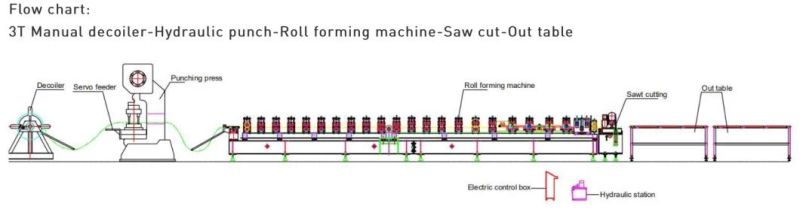

Product Parameters1,Automatic De-coiler 3Tons, 5 Tons, 10 Tons, de-coiler is an option

1, Single head design
2, Loading weight: 3Tons
3, Automatic open coil
4, Hydraulic automatic expansion and tightening
5, Press coil arm
6, Suitable width: <300mm
7, Coil Inner Diameter: ¢500±20mm
8, Coil External Diameter: ≤1500mm
9, Power: 1.5KW2,Servo Feeder & Punching Machine1, Servo feeding,
2, 4 punching stations,
3, Servo motor power: 1.3KW
4, Servo motor brand: Japan Yaskawa
5, Suitable width: <300mm

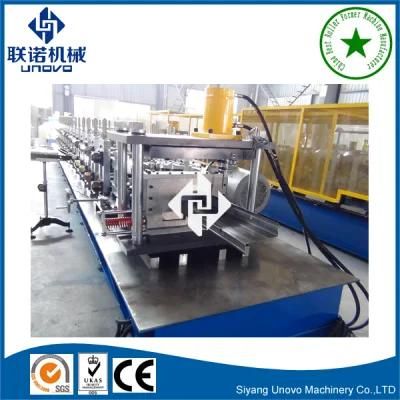

6, Punching mold fast positioning, repeat positioning.3,Roll Forming Machine1, Driven system: reducer + chain
2, Main machine power: 15KW*2 Sets,
3, Motor brand: Beijing Chao Tong Bu servo motor
4, Module Components fast positioning, repeat positioning
5, Forming stations: 24 groups stations4,Servo Track Cutting Machine1, Hydraulic single station,
2, Cutting force: 30Tons,
3, Cutting type: stop cutting
4, Module Components fast positioning, repeat positioning5,Computer Control Box1, Japan Mitsubishi motion controller PLC
2, Japan Yaskawa Servo System
3, With human machine interface touch screen
4, Schneider weak current control6,Hydraulic Station1,Hydraulic system power: 15KW
2,Hydraulic value: Huade,
3,With fan cooling system
