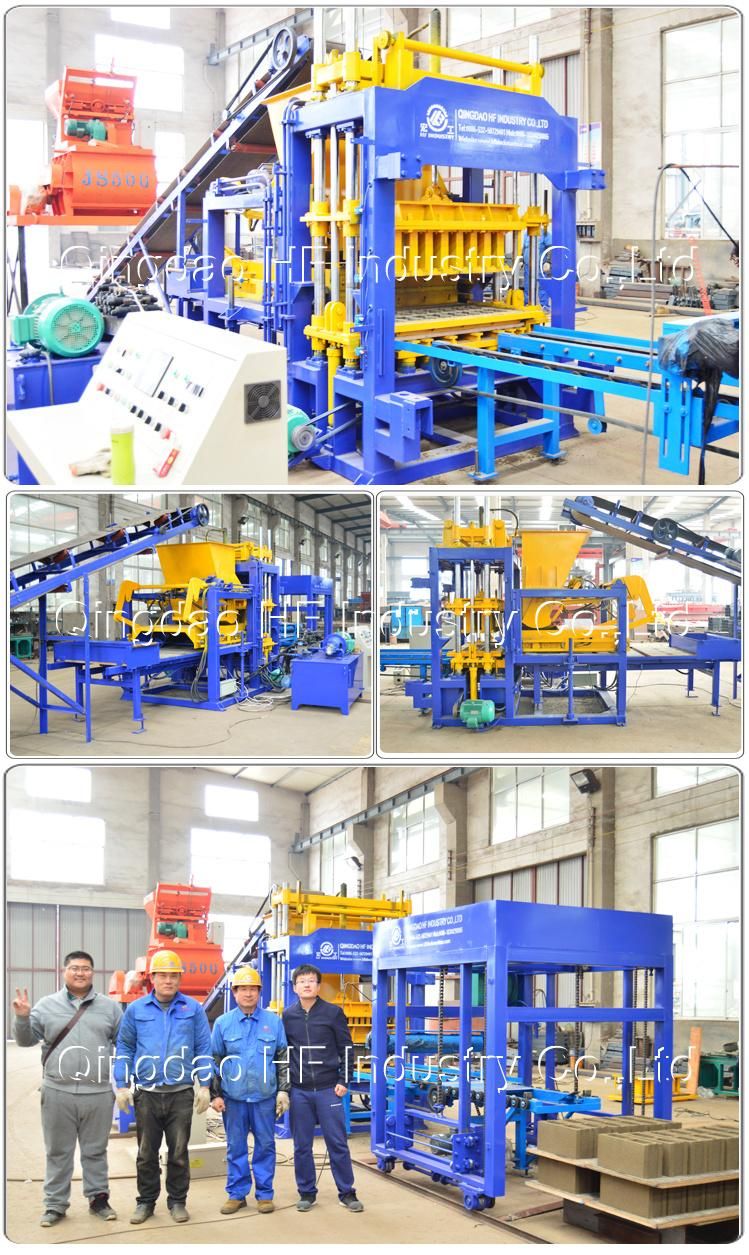

Automatic Block Machine Line Qt5-15 Fully Automatic Concrete Block Making Machine
Qingdao HF Machinery Co., Ltd.- Certification：CE, ISO
- Customized：Customized
- Automatic Grade：Automatic
- Type：Vibration Molding
- Machine Name：Automatic Block Making Machine
- Machine Model：Qt5-15
Base Info
- Model NO.：QT5-15
- Cycle Time：15-20s
- Pallet Size：1100X550mm
- Host Machine Power：26.5
- Rated Pressure：16MPa
- Host Machine Weight：5500kg
- Vibration Form：Platform Vibration
- Overall Dimension：5120X1950X2810mm
- Factory Area：2000m2
- Transport Package：Export Standard
- Specification：5120x1950x2810mm
- Trademark：HONGGONG
- Origin：China
- HS Code：8474802000
- Production Capacity：50 Set Per Month
Description
1. Our QT5-15 hollow block making machine with electric and hydraulic system, each procedure action locks with each other to guarantee the machine operate safely, easily and dependability.
2. Through mold-releasing oil cyclinder, the mold box was locked into the vibration table with high rigidity to reach the synchronous vibration, so that the concrete can be fluidified and exhausted in two or three seconds to ensure the high-density, especially suitable to produce the standard blocks, which can be piled up immediately so that the pallet investment can be saved directly.

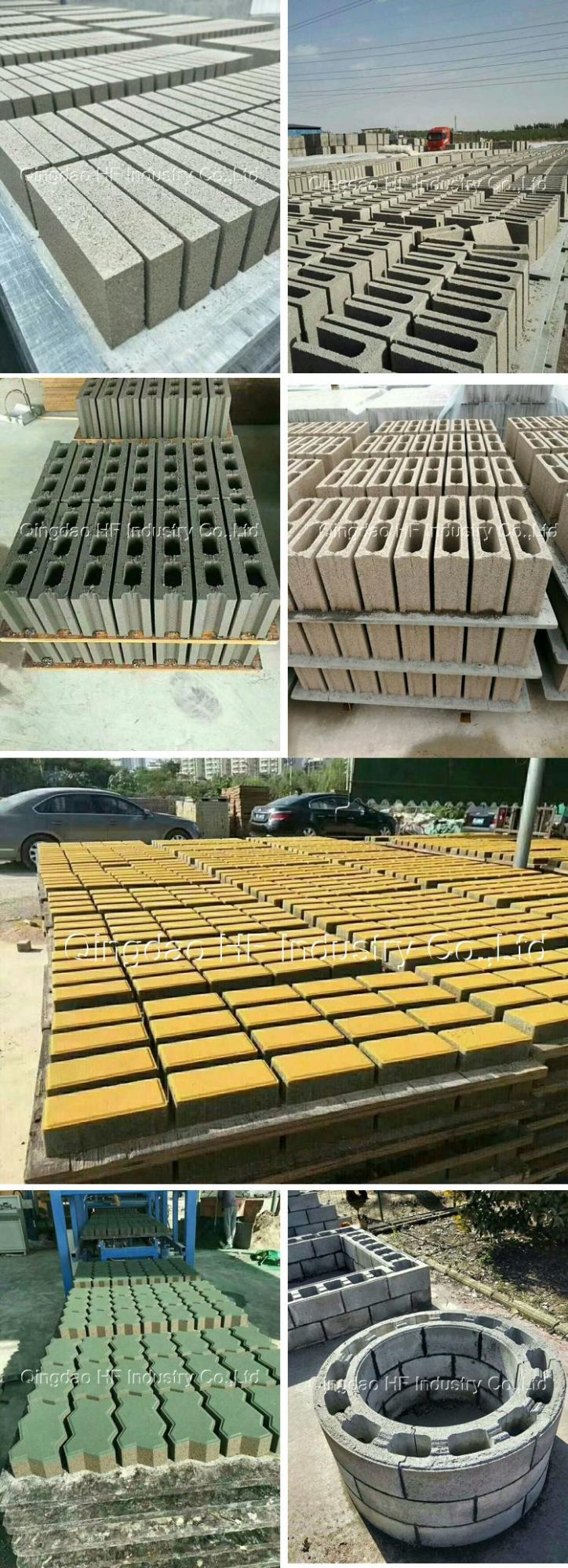

3. The unique forcing charge system can make use of various kinds of industrial waster and material such as coal ash, cement, sand, stone, slag, and so on. The machine can severs several purposes and produce various specification standard bricks, concrete blocks, porous blocks, paving bricks etc.
Technical Parameter

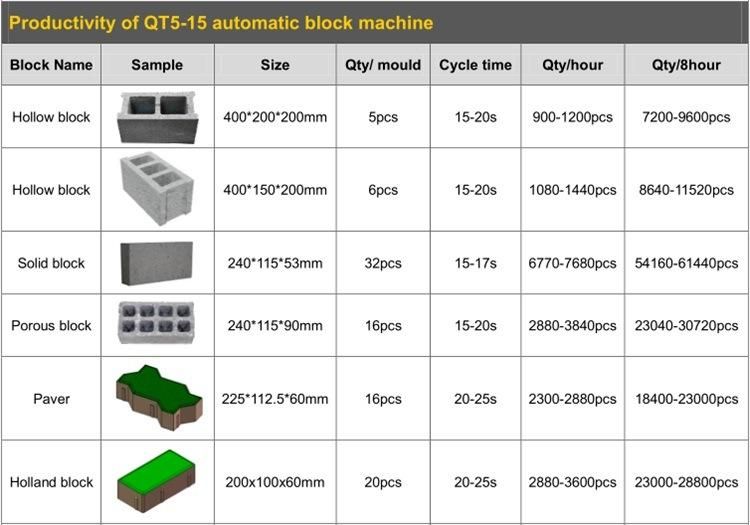

Productivity
