• Model NO.：Qt4-24
• Shaping Cycle：20-24s
• Mixer Model：Jq350
• Motor：Siemens Brand Motors
• Block Type：Solid Hollow and Paver Blocks
• Color：as Your Requst
• Transport Package：Container
• Specification：2060*1730*2580mm
• Trademark：DUYUE
• Origin：China
• HS Code：8474802000

Basic Info.

Model NO. Qt4-24 Shaping Cycle 20-24s Mixer Model Jq350 Motor Siemens Brand Motors Block Type Solid Hollow and Paver Blocks Color as Your Requst Transport Package Container Specification 2060*1730*2580mm Trademark DUYUE Origin China HS Code 8474802000

Product Description

Production description
1. Using the manual force control and jog control together, the operation is simple and efficient;
2. Using four polesoriented manner and ultralong orientation bear to ensure the precise movementof the pressure head and mould;
3. Using the ultra strong steel and special welding techniques,it is strong and of high resistancetovibration;
4. It is a multiuseful hollow block machine which could produce road blocks, curb stones, blocks,hollow bricks and other shapes of different specifications of concrete products via changing theblock mould;
5. imported electrical appliances, sealing parts and parts of hydraulic components, the equipment'scomprehensive performance is stable and reliable;
6. Using mechanical drive, it is a collection of compact structure, easy maintenance, operationflexible and good reliability;
7. The products which produced by semi-automatic block machine are all of high strength,gooddensity, good appearance,accurate size and regular shapes;
8. The semiautomatic block forming machine can achieve high eficiency if utilizing large dosage offly ash and slag,could save you more investment and give you a fast turnover.

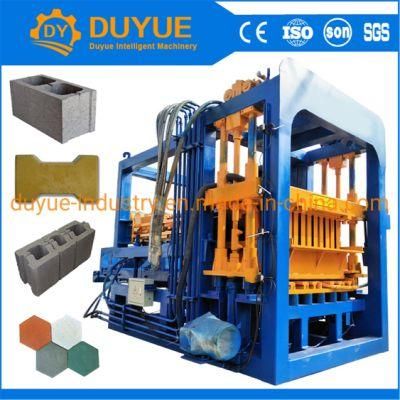

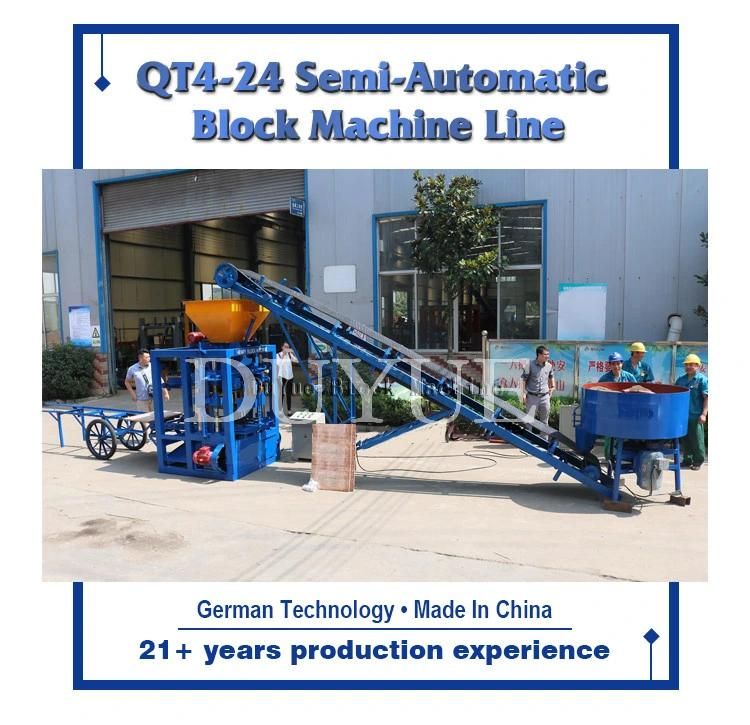

QT4-24 block making machine


Overall size	2060(L)*1730(W)*2580(H)mm
Shqping cycle	24-30  seconds
Pallet size	850*450*25mm(bamboo)
	850*9450*20mm(Plastic)
Vibration vibrator	Max.4000R/Min
Upper vibrator	2.2KW
Nether vibrator	6KW
Electricity	380v220v
Total weight	3000KGS

Main technical parameters

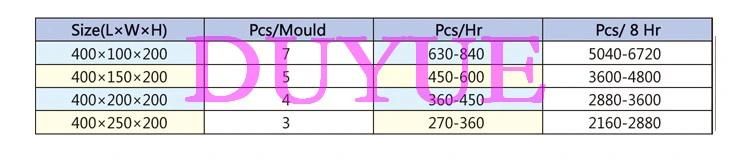

Theoretical production capacity
