• Model NO.：GEIT
• Product Name：Glazed Tile Roofing Sheet Machine
• Raw Material：PPGI,PPGL
• Color：as Per Customers Request
• Roller Material：#45 Steel
• Main Frame：350h Steel
• Cutting Type：Hydraulic Cutting
• Thickness：0.3-0.8mm
• Control System：PLC
• Shaft Material：#45 Steel
• Drive Mode：Chain
• Transport Package：Standard Packing
• Specification：7.5X1.6X1.6M
• Trademark：GEIT
• Origin：China
• HS Code：8455221000
• Production Capacity：5000,Year

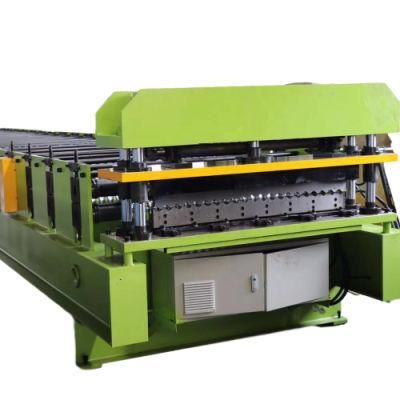

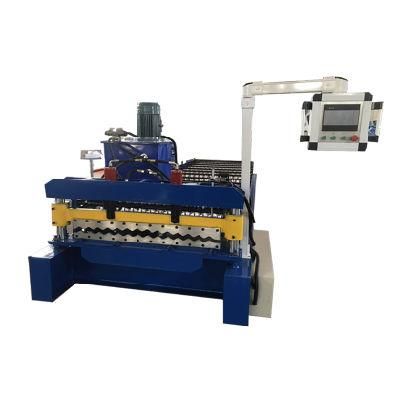

A snapshot of whole machine, we can customize up layer and down layer according to your request.

Up layer can be trapezoidal, corrugated or glazed tile roofing sheet
Down layer can be trapezoidal, corrugated or glazed tile roofing sheet

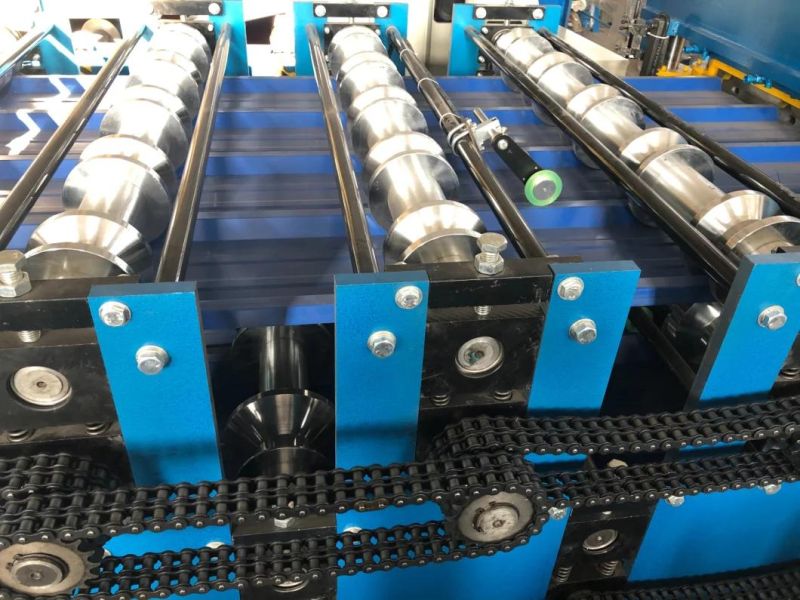

 Forming rollers

Raw material: #45 steel/Gcr15
After forging, machining, quenching, secondary machining, chrome plating and other processes

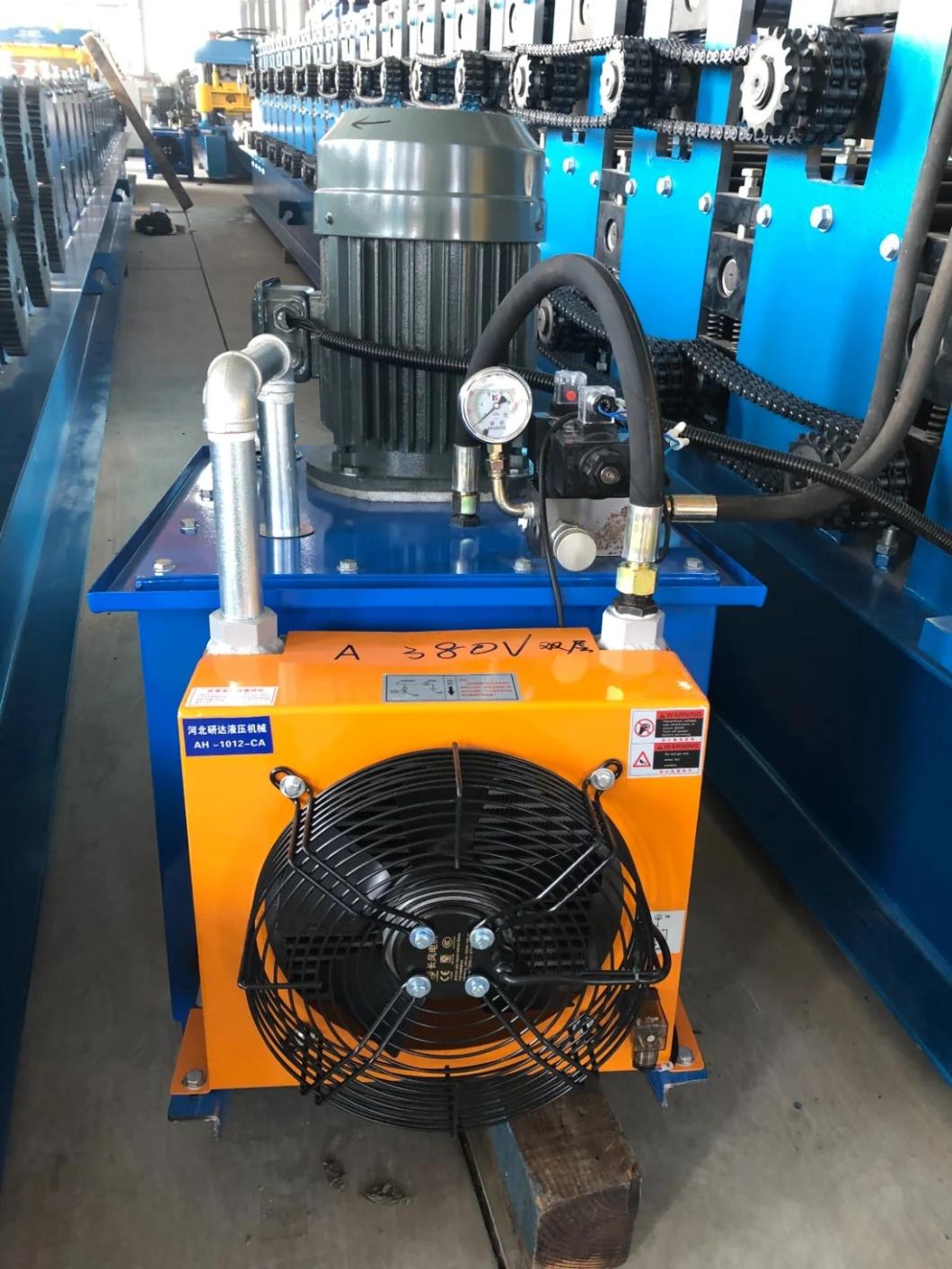

 Hydraulic decoiler with loading car or you can get manual decoiler Hydraulic pump station
Large valves are generally used, which are not easy to block or break PLC control system to control cutting length and quantity


Packing list

 5T Manual decoiler1Optional configurationMain roll forming machine1 Hydraulic station1 PLC Control system1 Products receiving table1Optional configuration

Factory outlook
