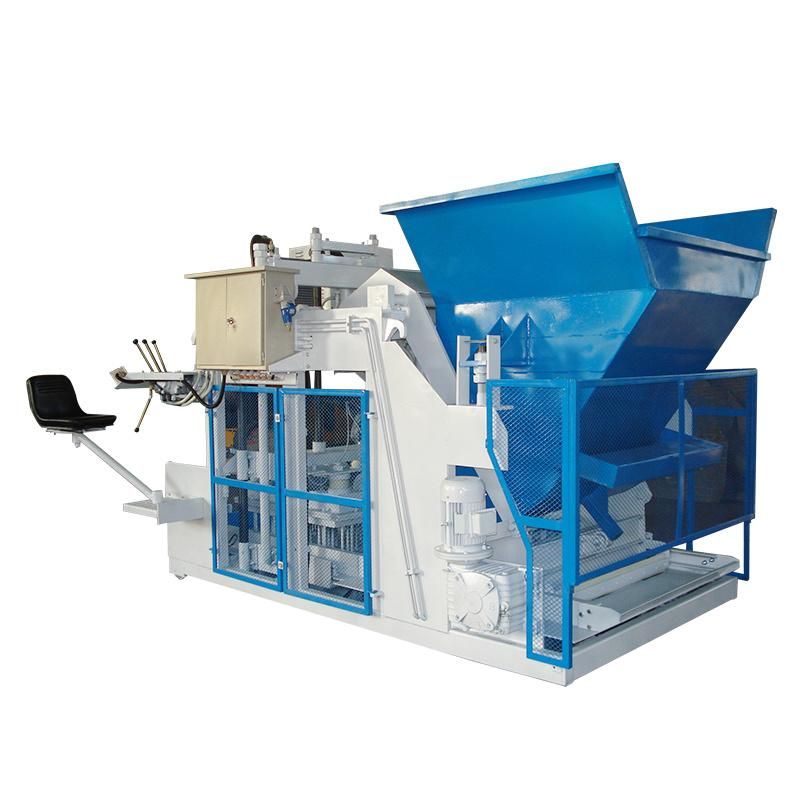

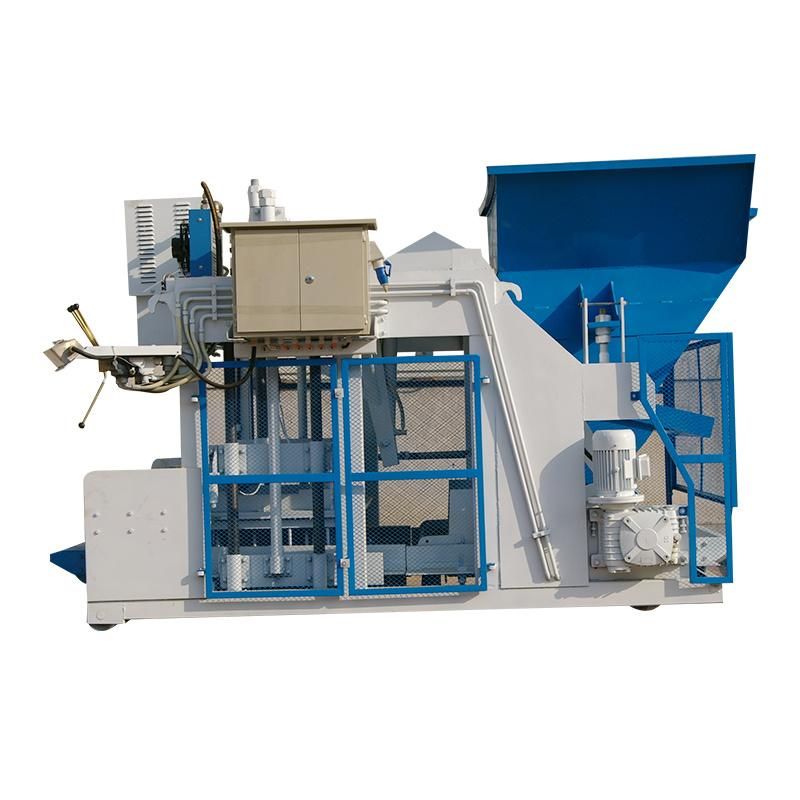

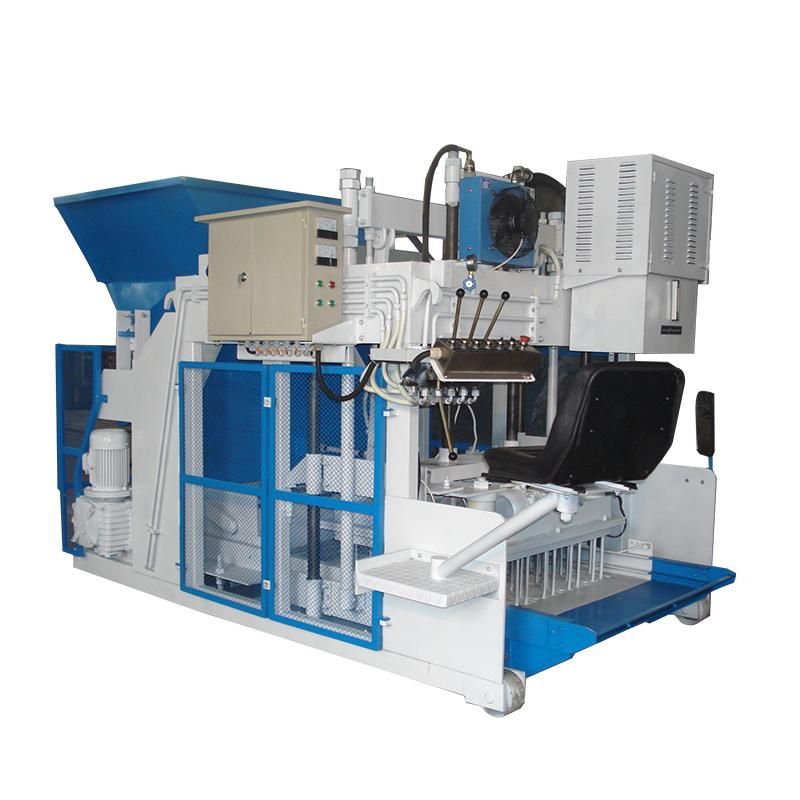

Qmy12-15 Mobile Concrete Hollow Block Making Machine with Top Brand Motors
Shandong Shiyue Intelligent Machinery Co., Ltd.- Certification：CE, ISO
- Customized：Customized
- Automatic Grade：Automatic
- Type：Hydraulic Shock
- Product Name：Hollow Block Making Machine
- Walking Type：Hydraulic
Base Info
- Model NO.：QMY12-15
- Color：Client Requirement
- Vibration Frequency：2800-4500 ( R,Min)
- Weight：4500kgs
- Block Type：Hollow Block,Solid Block
- Molding Cycle：15s
- Vibration Type：Mould Vibration
- Raw Material：Cement,Sand,etc
- Power：16kw
- Transport Package：Standard Export Package
- Specification：4500x2100x1850
- Trademark：SHIYUE
- Origin：China
- HS Code：8474802000
- Production Capacity：5000set,Year
Description
Technical Parameters
Overall Dimension
3250*2100*2300mm
Rated Pressure
16-21MPa
Main Vibration Form
Mould Vibration
Vibration Frequency
2800~4500 ( r/min)
Pallet
No need
Molding cycle
15-20(s)
Overall Power
16kw
Vibration Force
60KN
Total Mass
4.5T
Demolding method
Hydraulic
yes
Factory Area
500m2,the bigger the better
Applied Products
Concrete blocks, hollow/solid bloc
Raw Material
Crushed stone, sand , cement, dust, and fly ash, gravel, slag, and other raw material , etc.
Advantage of QMY12-15 automatic block machine
1.This is a mobile blcok machine.
2.This machine can produce any size of hollow blocks and big solid block.
3.No need pallet,will save much cost.
4.One person can operate it.
5.Save electric power
6.high capacity
