• Model NO.：HFB5250A
• Molding Method：Hydraulic
• Total Power：66 Kw
• Force：120 Kn
• Control Mode：PLC Control Fully-Automatic
• Weight：14.5t
• Molding Cycle：15-20s
• Raw Material：Fly Ash ,Cement,Concrter,Sand,Lime,Industrial Wast
• Pallet Size：1420X920X30
• Product：Hollow,Solid,Porous Block and So on
• Feature：Latest
• Transport Package：Sea Worthy Packing
• Specification：8200x2600x3020 mm
• Trademark：Hongfa
• Origin：China
• HS Code：8474802000
• Production Capacity：100 Sets,Year

Basic Info.

Model NO. HFB5250A Molding Method Hydraulic Total Power 66 Kw Force 120 Kn Control Mode PLC Control Fully-Automatic Weight 14.5t Molding Cycle 15-20s Raw Material Fly Ash /Cement/Concrter/Sand/Lime/Industrial Wast Pallet Size 1420X920X30 Product Hollow/Solid/Porous Block and So on Feature Latest Transport Package Sea Worthy Packing Specification 8200x2600x3020 mm Trademark Hongfa Origin China HS Code 8474802000 Production Capacity 100 Sets/Year

Product Description

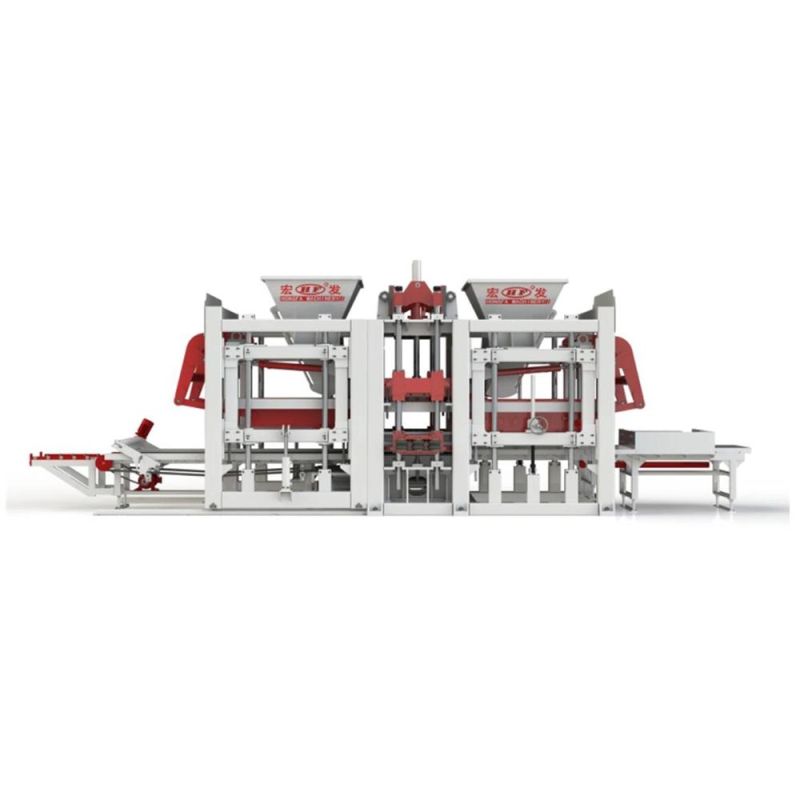

                                                 hydraulic curbstone machine

Machine Structure:
1. We adopted imported parts from Germany in some critical parts of our machine to enhance
its durability and performance
2. The main frame is built of strong hollow and rectangle steel with thickness 200*200mm with
10mm
3. Adding 2 pcs of guiding shafts and one adjusting wheel on each side ,so it can be very easy
and faster to adjust the materials feeder height.
4. Vibration source (Vibration table) is isolated with the main frame to prevent the destructive
vibration damage on the main frame
5. Complex structural mechanic design is applied on the vibration table instead of traditional
one to strengthen the table and reduce its self weight

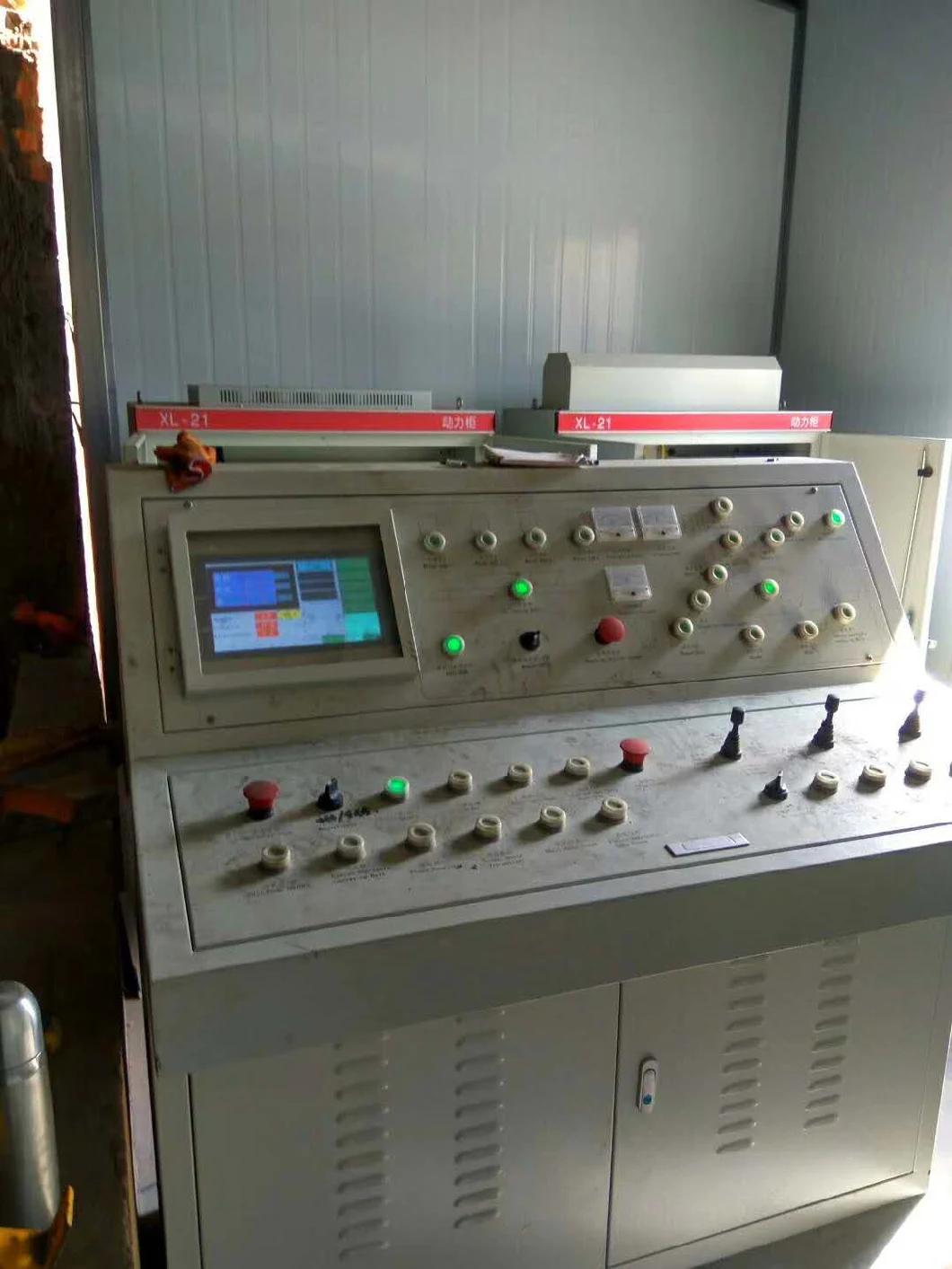

Control System:
Siemens PLC intelligent panel. Man-machine interface, control system equipped with
complete logic control, production program, malfunction diagnosis system and remote control
function.

Vibration system:
1. The vibration table is equipped with 3 pcs of airbags in each side, it can perfectly absorb the
vibration and protect the machine.
2. There are vibrator and vibration case and extra 2 pcs of Cardan shaft and one Synchronous
box, which can increase the vibration synchronization.
3. Using dry vibration case, so running faster and no oil leaking .
4. Adding 5 more Over-pressure-proof supports on the bottom-mould support platform and the
supporting bar with heat treatment (more durable and make sure no pallet broken when
demoulding )

Maintenance:
As regular and proper maintenance and repair are keys to success for a factory, however, the
traditional designs of the machine cannot fulfill the above needs. Therefore, we have a series
of modification to solve those problems
1. All the parts were designed to be easily changeable
2. We changed the bolts and nuts design from welding
3. All the parts were tool and worker accessible

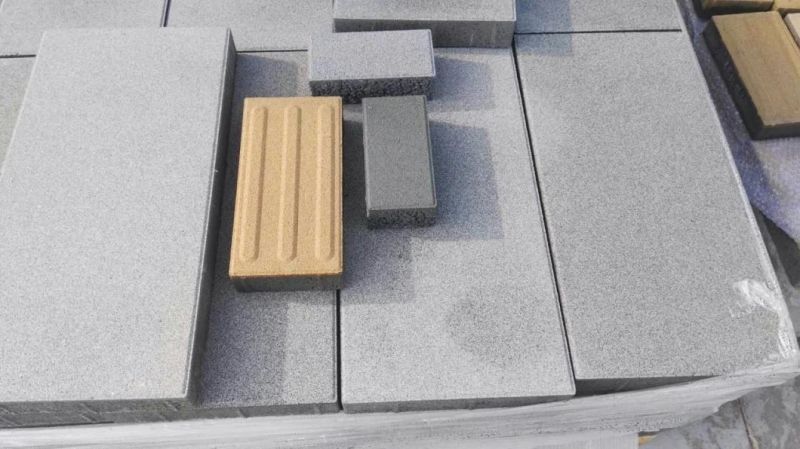

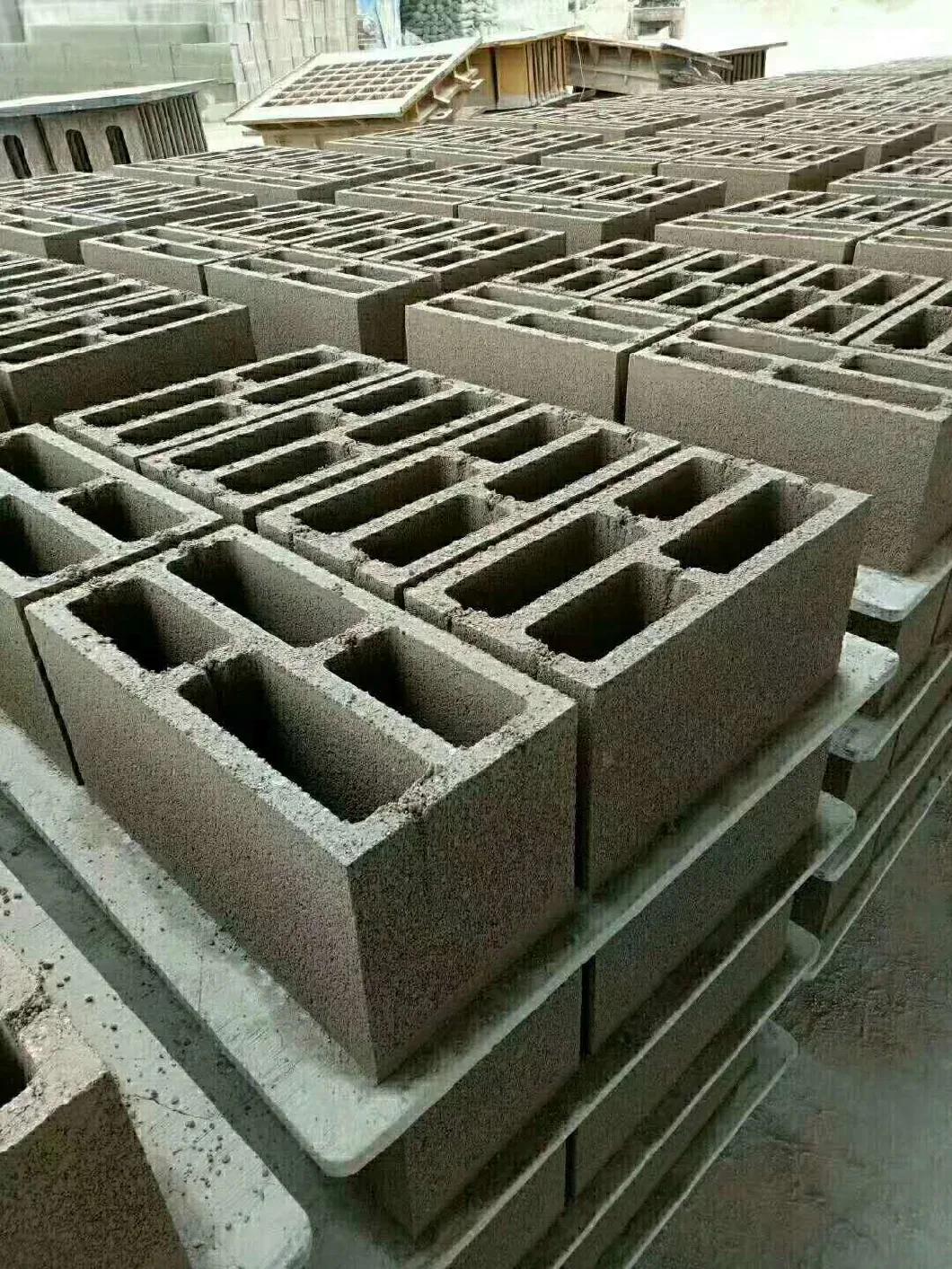

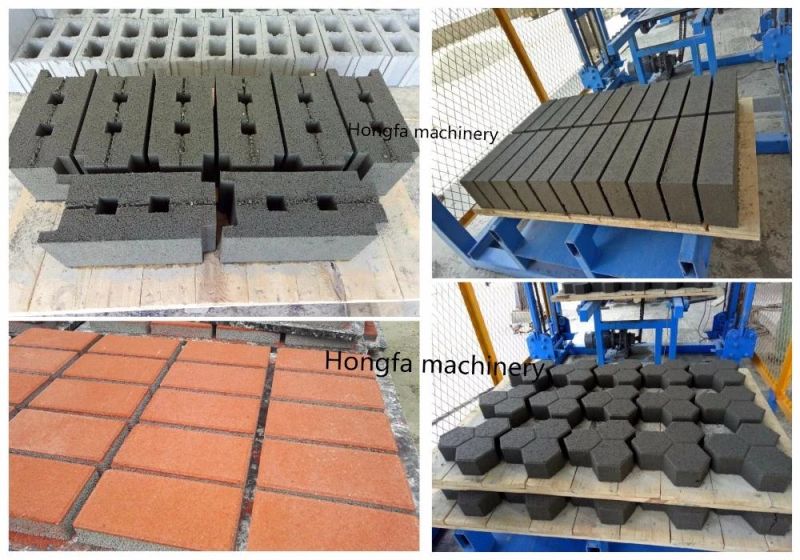

Applied products:

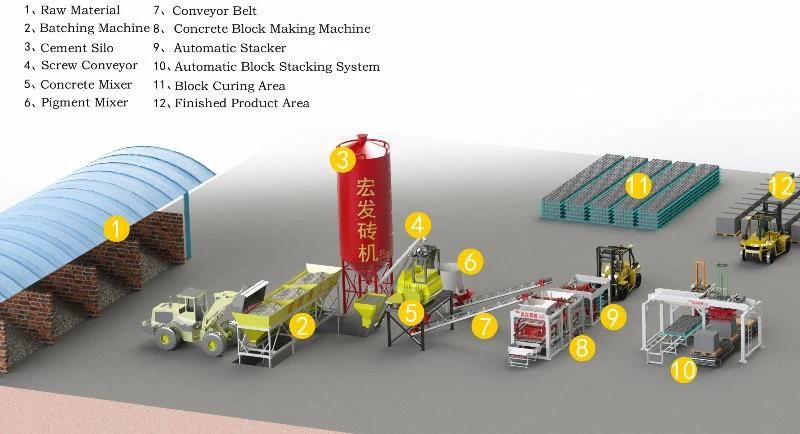

Fully automatic concrete block production line:



About us:
We are a construction and building material equipments manufacturer mainly produces all kinds of AAC block production line, concrete mixing plant, mixer, concrete block making machine, concrete tile making machine, concrete pipe making machine etc, with more than 27 years experience and being the biggest manufacturer at present. All the products are conformity with the standard of the state and gets the ISO9001 certificate and also honored as " One of The Top Ten Famous Brands of Brick and Tile Field in China"and other honors. Hope to cooperate with you .

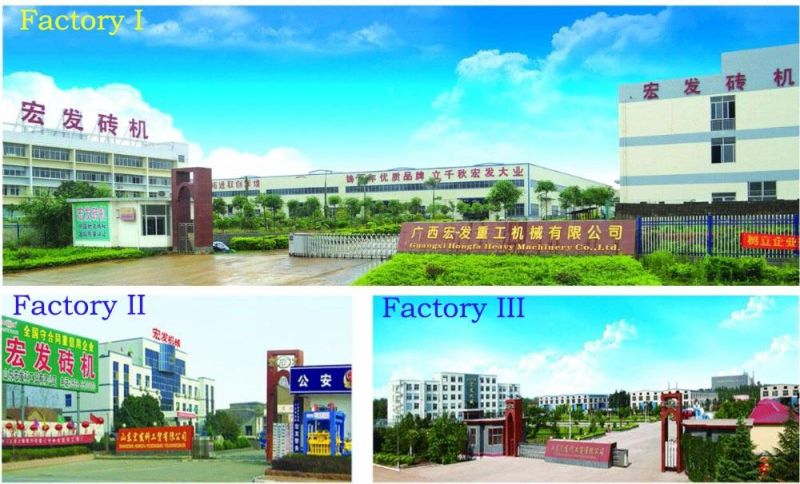

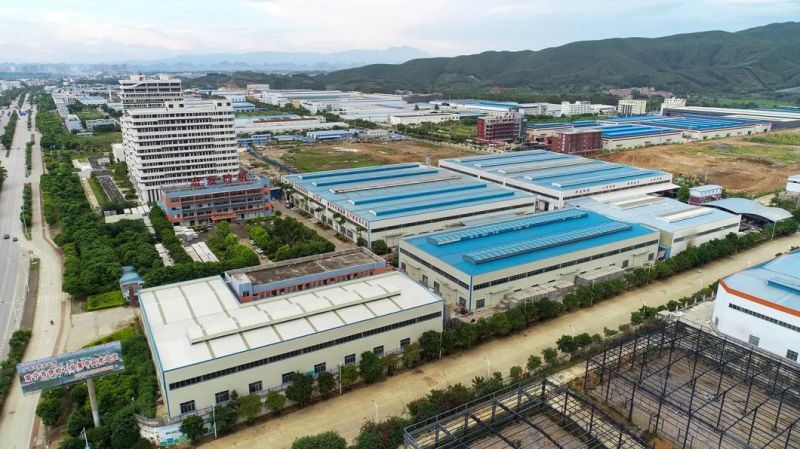

HONGFA workshop:


Our honors:
1.One of Top Ten Influential Brands in China Brick &Tile Industry
2.China National Enterprise Abiding By Contract & Keeping Good Faith
3.Quality and Credibility of the Dual-protection Demonstration Unit
4.High and New Technology Enterprise
5.Famous Trademark of China
6.Star Enterprise with China Patent
7.AAA Grade Credit Enterprise
8.Consumer Satisfaction Unit
9.One of Top 100 building Material Industry Brands of China
10.One of Top Ten Good Faith Units
11.Advanced Exporter in Guangxi Province
12.Advance Quality Management Unit

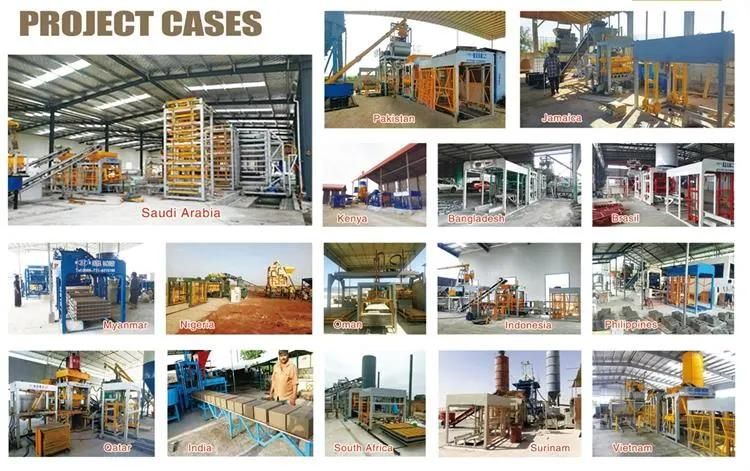

Customers over the world:


Our service:
Pre-Sale Service
Analyze the customer's need and market prospect;
Provide perfect solution to set up a factory.In-Sale Service:
Provide service of installation:
Provide training for operator and maintenance person.After-sale Service:
Provide free consultation;
Supply parts service.
We are an ISO9001 and CE certified company,
Our quality and on time delivery is your guarantee to a successful project.
