Concrete Cement Brick Machine Brick Mould Qtj4-40/ Cement Sand Interlocking Paver Block Machinery

Shandong Xinming International Trade Co., Ltd.
  • Certification：CE, ISO
  • Customized：Customized
  • Automatic Grade：Semiautomatic
  • Type：Vibration Molding
  • Pallet Size：850*550*20mm
  • Mold Period：40 Seconds

Base Info

  • Model NO.：QTJ4-40
  • Power Type：Electric Motor
  • Total Weight：1500kgs
  • Color：Optional
  • Vibration Force：20kn
  • Electricity：380V,220V(Adjustable)
  • Host Machine Po：8.8kw
  • Block Type：Hollow,Paver,Solid,Curbstone Block
  • Upper Vibrator：2.2kw
  • Nether Vibrator：4.4kw
  • Labor：2-3 Workers
  • Mixer Model：Jp350 Mixer
  • Standard Hollow：400*200*200
  • Block Material：Sand,Cement,Cinder,Stone etc
  • Transport Package：Nude in Container,LCL
  • Specification：1580*1100*2300mm
  • Trademark：Xinming
  • Origin：China
  • HS Code：8474802000
  • Production Capacity：500PCS,Month

Description

ItemBlockProduction Capacity Photo1Hollow/soild Block
400*200*200mm4pcs/mold
2880pcs/8hConcrete Cement Brick Machine Brick Mould Qtj4-40/ Cement Sand Interlocking Paver Block Machinery
 2Hollow/soild Block
400*150*200mm5pcs/mold
3600pcs/8h3Hollow/soild Block
400*100*200mm7pcs/mold
5040pcs/8h4Hollow/soild Block
250*112.5*60mm12pcs/mold
8640pcs/8h5Hollow/soild Block
200*100*80mm14pcs/mold
10080pcs/8h6Hollow/soild Block
225*112.5*60mm14pcs/mold
10080pcs/8h
Concrete Cement Brick Machine Brick Mould Qtj4-40/ Cement Sand Interlocking Paver Block MachineryConcrete Cement Brick Machine Brick Mould Qtj4-40/ Cement Sand Interlocking Paver Block Machinery




>> Main Technical Specification
  1. Maintance: QTJ4-40 hollow solid block making machine is easy in maintance. please clean the mixer and mold after everyday work and fasten screws and add              lubrication oil to moving parts before every day work.

  2. Install Service: We will ship machine in whole one. you only connect elecctricity line with block machine, the machine can work. the manual and installtion video is avaible.

  3. Guarantee Time:  One year. we will supply free accessories with machine for one year use. and Technical service and spare parts are avaible in all time.

Overall Dimension :1580×1100×2100  (mm)Main Vibration Form :Platform vibrationCycle Time :40 secondsMotors Power :8.8KWPallet Size :850*550*20 (mm)Raw Materials :crushed stone, sand, cement, dust and coal fly ash, cinder, slag, gangue, gravel, perlite and other industrial wastes.Applied Products :concrete blocks, solid/hollow/cellular masonry products, paving stones with or without face mix, garden and landscaping products, slabs, edgers, kerbstones, grass blocks, slope blocks, etc.Concrete Cement Brick Machine Brick Mould Qtj4-40/ Cement Sand Interlocking Paver Block Machinery
Concrete Cement Brick Machine Brick Mould Qtj4-40/ Cement Sand Interlocking Paver Block Machinery

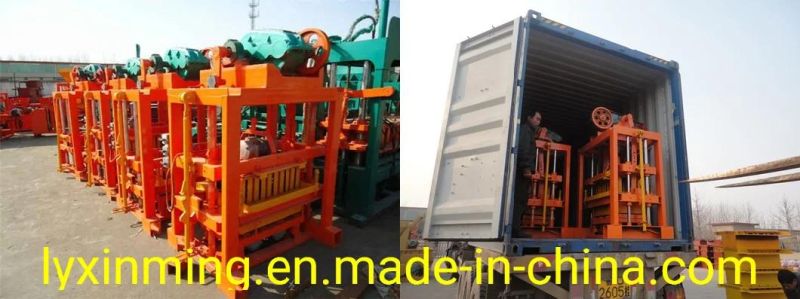

>> Packaging & Shipping
QTJ4-40 is one of our best-selling machines. This type of concrete block making machine is a fully automatic hydraulic vibration machine with high output, low power and affordable price.
