• Model NO.：312
• Main Frame：350h
• Color：Can Be Choosed
• Control System：PLC
• Transport Package：Container
• Specification：6000*1000*1600mm
• Trademark：kexinda
• Origin：Hebei
• HS Code：8455221000
• Production Capacity：3000sets

Suitable material

galvanized steel  colored coil

Thickness of the plate

0.3-0.8mm

Productivity

8-12m/min

Roller steps

14 rows

Roller material

45# steel

Diameter of active shaft

70mm

Wall thickness of the main forming machine

14mm steel plate

Main forming machine body

300mm H steel

Transmission chain

0.6'' (inside hang)

Reducer

2.2kw Xingxing Cycloid which works stably and no noise

control systerm

Matsushita or Mitsubishi PLC control systerm

Dimensions of major structure

4000mm*500mm*1100mm

Counte

Omron

Voiltage

Single phase/ 220-240 volts

Processes: Manual decoiler-Roll forming machine-PLC system-Hydraulic system-Post cut-Stacking

Components of line:

NO

Name

Unit

Qty

1

Manual decoiler

set

1

2

Main machine for roll forming

set

1

3

PLC Control system

set

1

4

Hydraulic system

set

1

5

Post cut

set

1

6

Stacking

set

1

Sales terms

Terms of Payment:   30% of the total contract value paid by T/T as down payment, the rest 70% of the total contract value to be paid by T/T after inspection by buyer in seller's factory while before delivery.

Delivery:                 30 days after receipt of advance payment

Service:             we sent technician to your country to fix the machine.

The buyer should bear all the cost including: visa , Roundtrip ticket and suitable accommodation, also buyer should pay the salary 50USD/day.

Warranty:            12 months limited warranty

During warranty: parts are free but buyer pay for the shipping fee

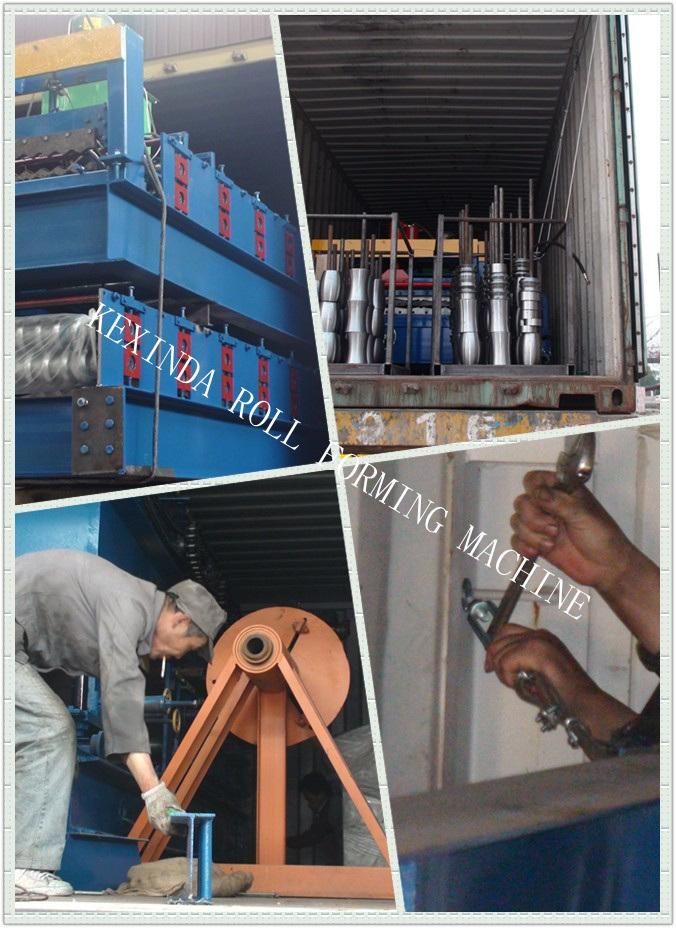

Packaging & Shipping

1:How to play order:

Inquiry---confirm the profile drawings and price---confirm the PI---arrange the deposit or L/C---then OK

2:How to visit our company:

Fly to Beijing airport: By high speed train From Beijing Nan to Cangzhou Xi(1 hour),then we can pick up you.

Fly to Shanghai Airport:By high speed train From Shanghai Hongqiao to Cangzhou Xi(4.5hours),then we can pick up you.

If any questions,you can call me mobile phone at any times:0086-15613790178

3:When we exported the machines:

We have beening making and exporting the machines since from the year of 1998.

4:If you want to get more pictures or videos of the machines,I can send them to you by Email or Skype
