• Place of Origin：China
• Brand：Bohai
• Application：Construction
• Transport Package：Packed in Container
• Specification：5500mmx1500mmx2000mm
• Trademark：BOHAI
• Origin：Liaoning Province of China
• HS Code：8455229090
• Production Capacity：20 Sets,Month

Basic Info.

Place of Origin China Brand Bohai Application Construction Transport Package Packed in Container Specification 5500mmx1500mmx2000mm Trademark BOHAI Origin Liaoning Province of China HS Code 8455229090 Production Capacity 20 Sets/Month

Product Description

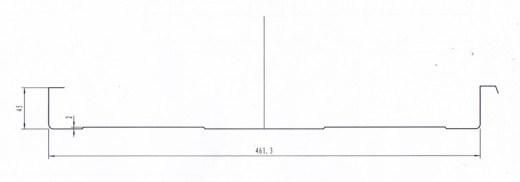

Profile

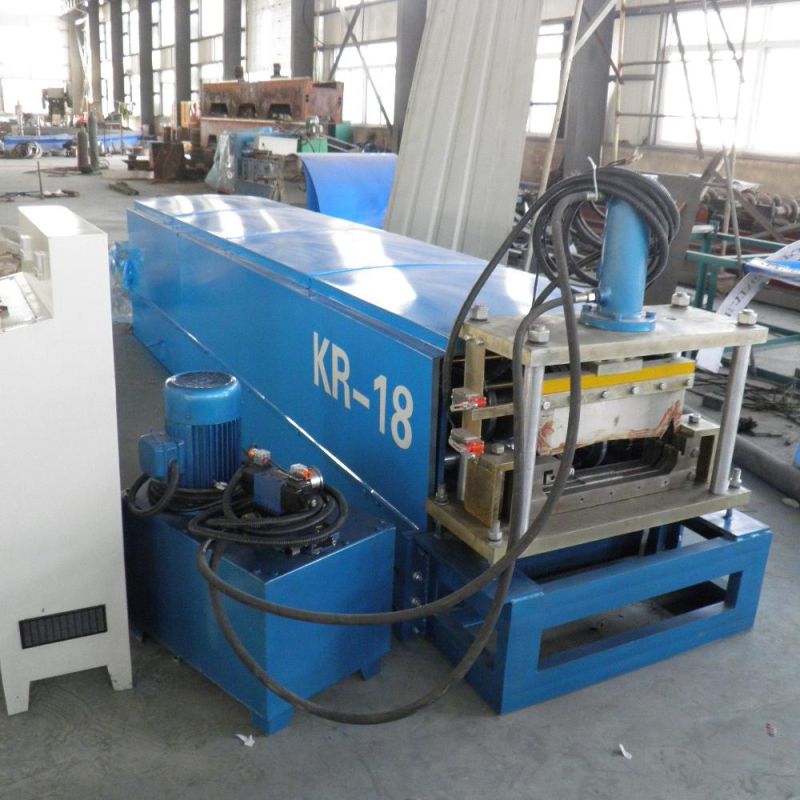

Main technical parameter
1. Chassis: 250mm U-steel structural steel welding
2. Forming type: Chain drive
3. Diameter of axle: 65mm
4. Chain: 16A
5. Forming motor power: 5.5kw
6. Forming speed: 8-15m/min
7. Forming rollers: 12 steps
8. Roller material: 45#steel, coated hard chrome
9. Thickness of coated hard chrome: 0.05mm
10. Hydraulic station motor: 3kw
11. Hydraulic oil pump: Gear pump
12. Cutting type: Hydroform cutter
13. Material of cutting part: Cr12, heat treatment HRC58° -60°
14. Thickness of coils: 0.5-1.3mm
15. Length scale precision: ± 2mm
16. Transducer: YASKAWA
17. Controlling system: PLC, touch screen
18. Power: 220V 60Hz 3 phase, 15KW electric generator
19. Size: 5500mmx1500mmx2000mm
20. Weight: 5 tons

Name	Amount
Decoiler	1
Sewing machine	2
Collectiontable	1
Clamp	4
Bearing(208#)	4
Drive chain	3(run)
Chain link	3
half-section	3
Super pliers	1
Metal scissors	1
Wrench	1
Travel switch	1(set)

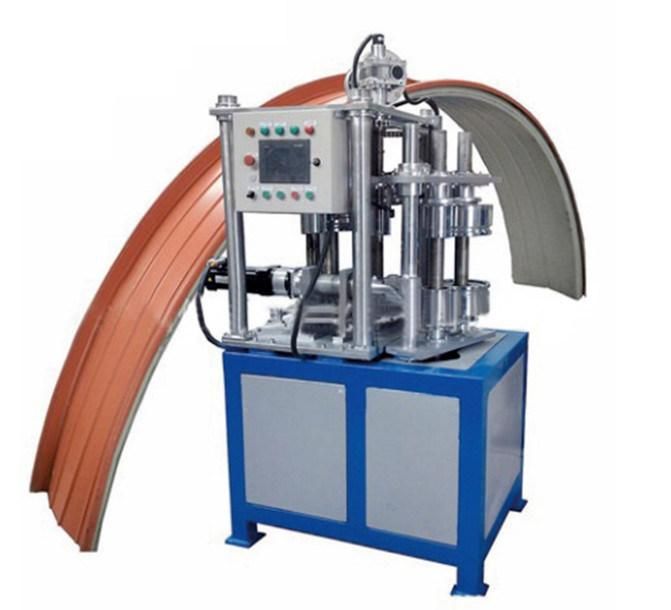

KR bending machine
