Ly2-10 Automatic Earth Cement Soil Clay Interlocking Block/Brick Making Machinery for Sale

Shandong Shiyue Intelligent Machinery Co., Ltd.
  • Certification：CE, ISO, Tt
  • Customized：Customized
  • Automatic Grade：Automatic
  • Type：Hydraulic Shock
  • Overall Power：7.5kw
  • Molding Cycle：10s

Base Info

  • Model NO.：LY2-10
  • Rated Pressure：16MPa
  • Market：Global Market
  • Color：According to Custoemrs′ Need
  • Warranty：12 Months
  • Power Source：Electric Motor
  • Capaity：5000PCS-6000PCS
  • Total Mass：1500kgs
  • Name：Interlocking Brick,Block Making Machine for Sale
  • Transport Package：According to Customer′ Need
  • Specification：1300*1800*2400mm
  • Trademark：shiyue
  • Origin：Shandong Province China
  • Production Capacity：5000 Sets One Year

Description

Basic Info.

Model NO. LY2-10 Rated Pressure 16MPa Market Global Market Color According to Custoemrs′ Need Warranty 12 Months Power Source Electric Motor Capaity 5000PCS-6000PCS Total Mass 1500kgs Name Interlocking Brick/Block Making Machine for Sale Transport Package According to Customer′ Need Specification 1300*1800*2400mm Trademark shiyue Origin Shandong Province China Production Capacity 5000 Sets One Year

Product Description

Introduction

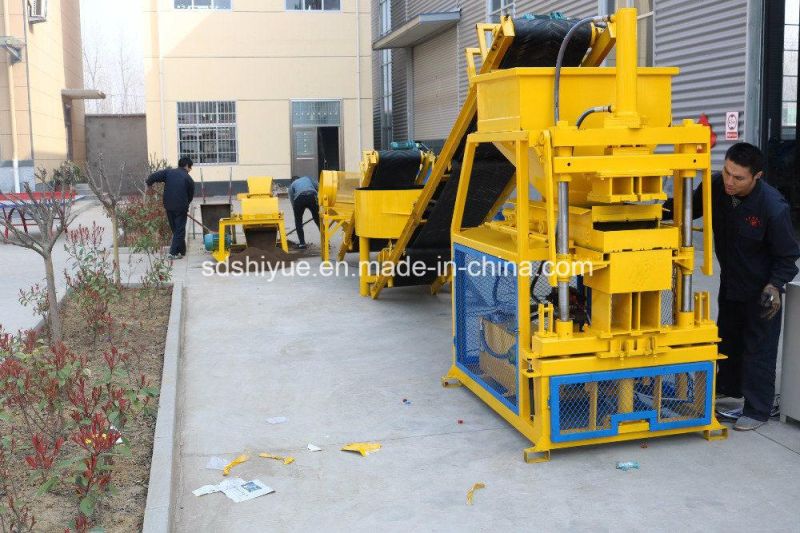

A. LY2-10 interlocking brick machine is our new clay and cement brick making machine.

B. It is semi-automatic operation machine. Its material feeding, mould pressing, and mould lifting automaticlly.

C. The most versatile of the market, for enable varied models of blocks, bricks and floors in only one equipment, without the need of buy another machine.

D. Easy operation, easy maintenance which is your ideal machine for your business.

Main Parameters

Machine power

7.5kw

Molding cycle

10s

Capacity

6000pcs/8hours

Raw material

Clay, soil, earth, mud, concrete, cement, fly ash,etc.

Machine weight

1500KGS

Overall size

1300*1800*2400mm

Worker

1-3 people

Hydraulic pressure

16 Mpa

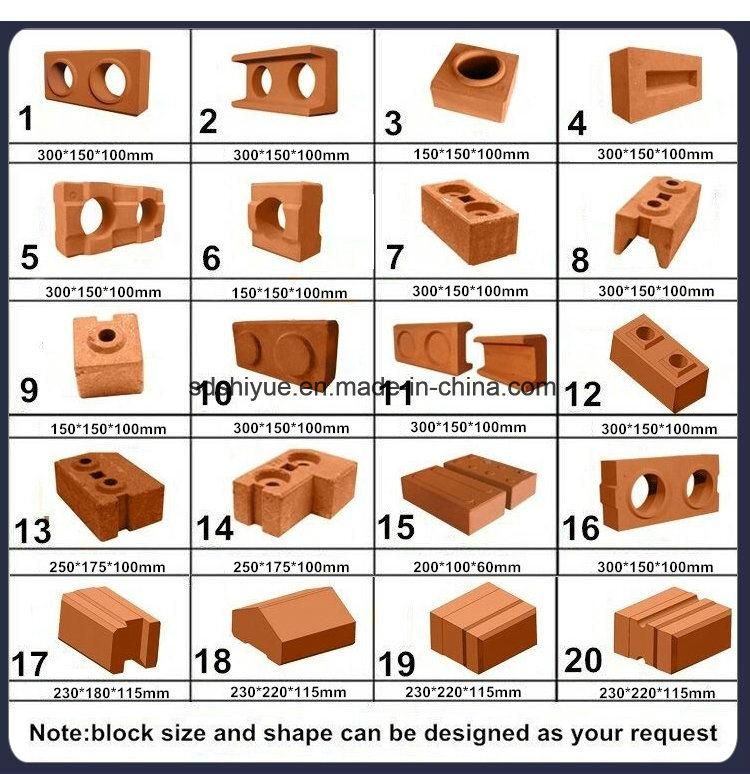

Productivity

No.

Block size

Pcs/mould

Pcs/hour

Pcs/8hours

1

300*150*100mm

250*125*75mm

1

750

6000

Product Details

Ly2-10 Automatic Earth Cement Soil Clay Interlocking Block/Brick Making Machinery for Sale

Shipping and delivery

1. The whole brick machine production line equipment is mainly the full container sea shipping,

2. Brick machine equipments finish manufacturing and testing, next to clean up, and then do another paint protection,

3. Before shipment to use plastic film winding, wrapped the entire brick machine in case of water or moisture,

4. Then load brick machines into the container by forklift,

5. During loading to tighten the machine with reinforcement ring in container, so as to avoid the damage by transport bumps on the brick machine.


Our service

Pre-sale
(1) Professional suggestions (raw material matching, machine selection, plan
The condition of build factory, feasibility analysis for brick machine production line)
(2) Device model choice (recommend the best machine according to the raw material,
capacity and the size of brick)
(3) Welcome to visit our factory and production line anytime

Sale:
(1) Update the production scheduling in time
(2) Quality supervision
(3) Product acceptance
(4) Shipping on time

After-sale:
(1) The engineer will guide to carry out the plant at the clients side.
(2) Set up, fix,and operate
(3) Will not stop training the operator until they are satisfied at clients side.
(4) 24 hours service
(5) Recall clients regularly ,get feedback in time,keep well communication with each other.

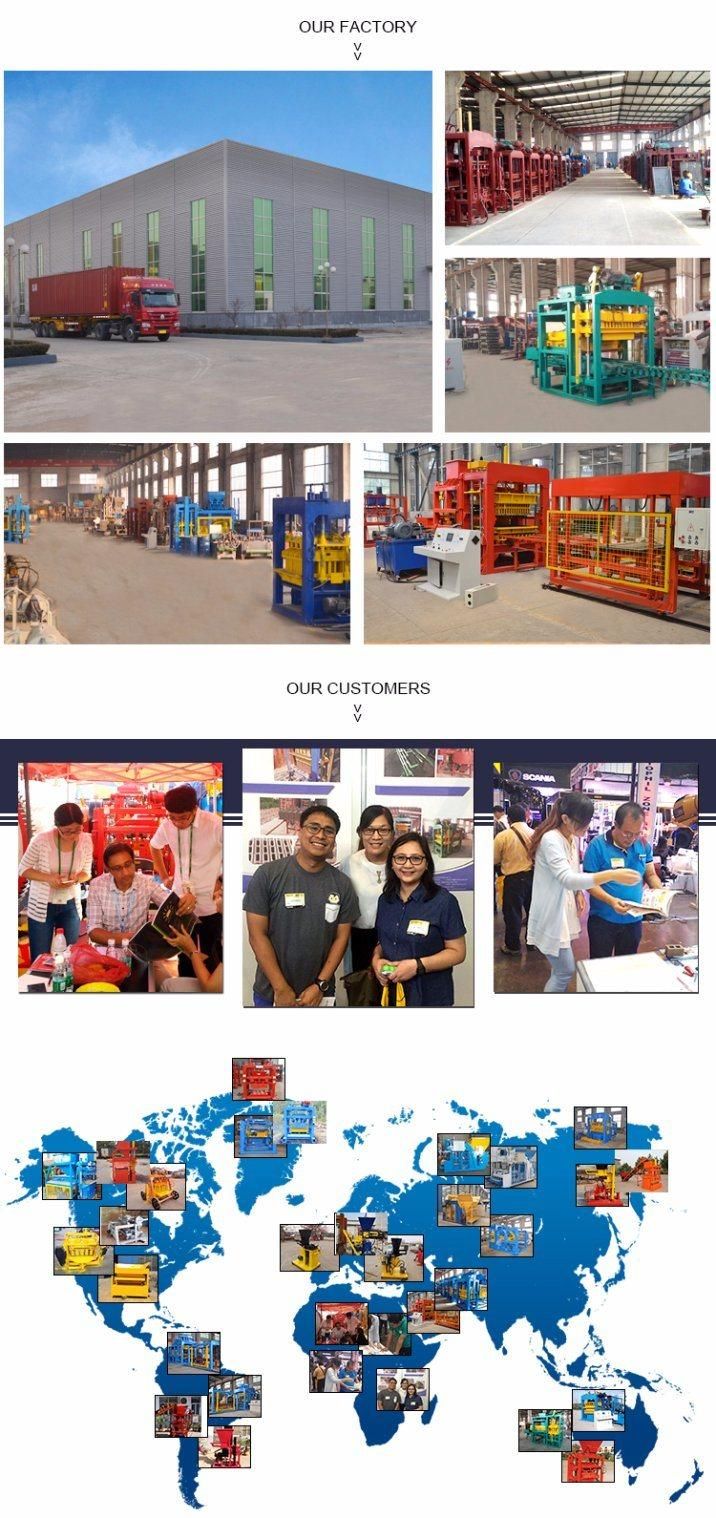

Our factory
Shiyue Machinery is located in Linyi,Shandong. With advanced technologies and rich experiences on manufacture. We have specialized in stationary block machine,mobile block machine, clay block machine, crusher,pipe making machine, pole making machine,concrete mixing plant etc.After 27-year's effort,we have receive good reputation from many countries such as India, the United States, Russia, the United Kingdom, the Philippines, Canada, Australia, South Africa, Pakistan, Brazil, Malaysia, Sri Lanka, Mexico, Nigeria, Kenya etc.What's more,our machines have won'Product patent award',and 'product innovation award' and so on.Shiyue machinery your best choice for your


Ly2-10 Automatic Earth Cement Soil Clay Interlocking Block/Brick Making Machinery for Sale

Ly2-10 Automatic Earth Cement Soil Clay Interlocking Block/Brick Making Machinery for SaleFAQ

1.Question:Does the machine could change mold?
Answer:Yes,this machine could change different kinds of mold.The machine could produce interlock, paver size depending on your local requirements.
2.Question:What is the electric voltage and rate?
Answer:Our local electric voltage is 380v, 3phase, 50hertz, the electricl voltage can be revised according to local situation.
3.Question:How about the service life of this machine?
Answer:This machine could work for about 6-10 years if your side maintain well.
4.Question:What's your machine warrenty?
Answer:12 months guarantee,we send more spare parts for you when shipping machine to you.
5.Question: The mode of transportation.
 Answer: by sea, by land or by rail according to customer local need
