Best Selling High Capacity Qt6-15 Full Automaric Hydraulic Concrete Block Brick Making Machinery for New Business

Shandong Xinming International Trade Co., Ltd.
  • After-sales Service：Engineer Can Fly Abroad to Provide Guidance
  • Warranty：2 Years
  • Certification：CE, ISO
  • Customized：Customized
  • Automatic Grade：Automatic
  • Type：Hydraulic Shock

Base Info

  • Model NO.：QT6-15
  • Host Machine Power：29.1 Kw
  • Rated Pressure：21MPa
  • Weight of Block Machine：8tons
  • Labor：1-3workers
  • Block Type：Hollow Solid Paver
  • Brick Material：Cement Sand Stone
  • Standard Hollow Block：400*200*200
  • Color：Optional
  • Mold Period：10-15s
  • The Size of Pallet：960*700*20mnm
  • Transport Package：Plywood Box with Iron Frame
  • Specification：3750*1600*2650mm
  • Trademark：XINMING
  • Origin：Shandong, Linyi
  • HS Code：8474802000
  • Production Capacity：50000sets,Year

Description

QT6-15 concrete block making machine
1.A multi-purpose machine.through the replacement of mold,produce different types of hollow brick,solid brick,paver brick.
2.The hydraulic system uses a unique proportional valve multi-channel control system,all-round adjustment of any action,so that the equipment is running more reliable and sensitive.
3.The electrical system adopt PLC intelligent control system,procedure interlocks,electrical frequency starting way makes the equipment to have the big vibration power,the noise low,high amplitude,makes the product perfect.
4.Unique mandatory material spreading,adapting to different mold cavity changes in the special arch rod to play a forced arch and the effect of the second mixing,ensuring maximum degree of high permeability fly ash spreading uniformity.

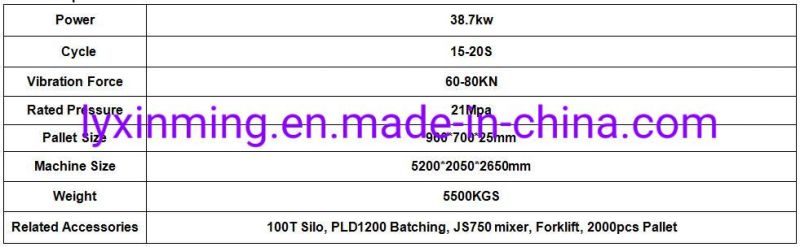

Best Selling High Capacity Qt6-15 Full Automaric Hydraulic Concrete Block Brick Making Machinery for New BusinessTechnical Specification

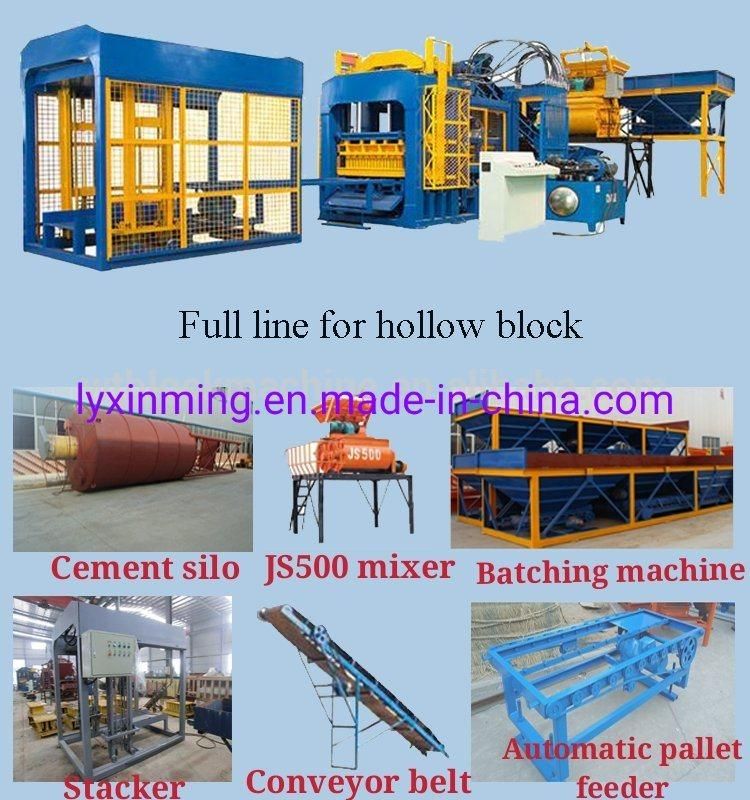

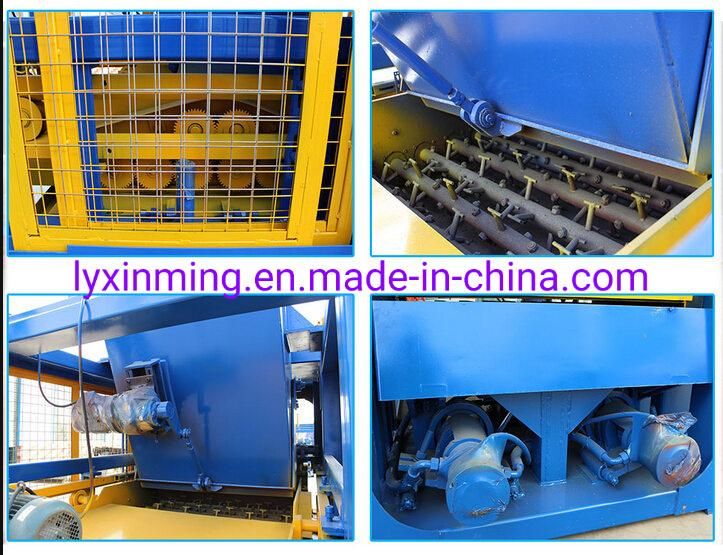

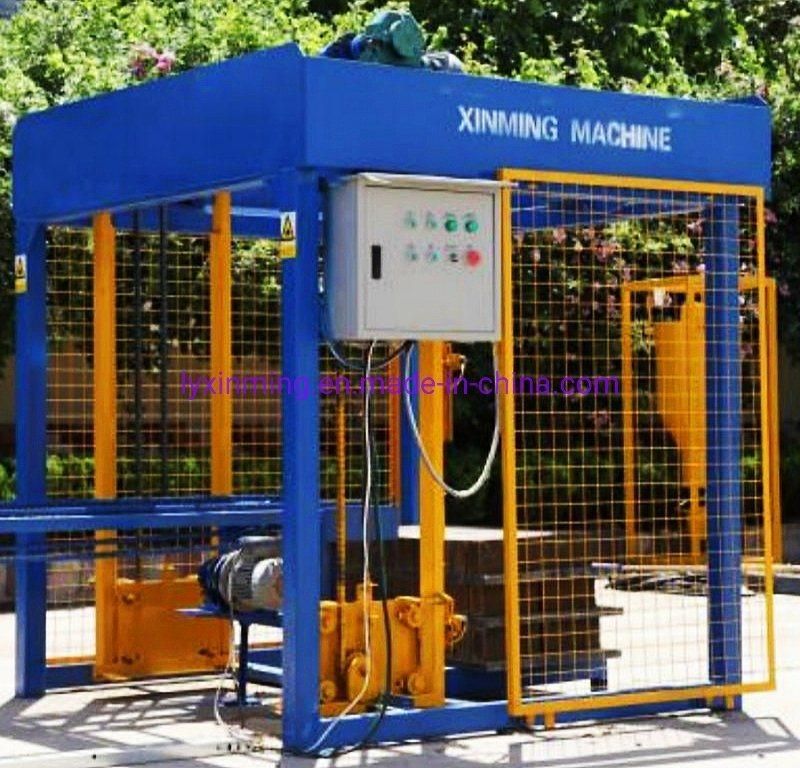

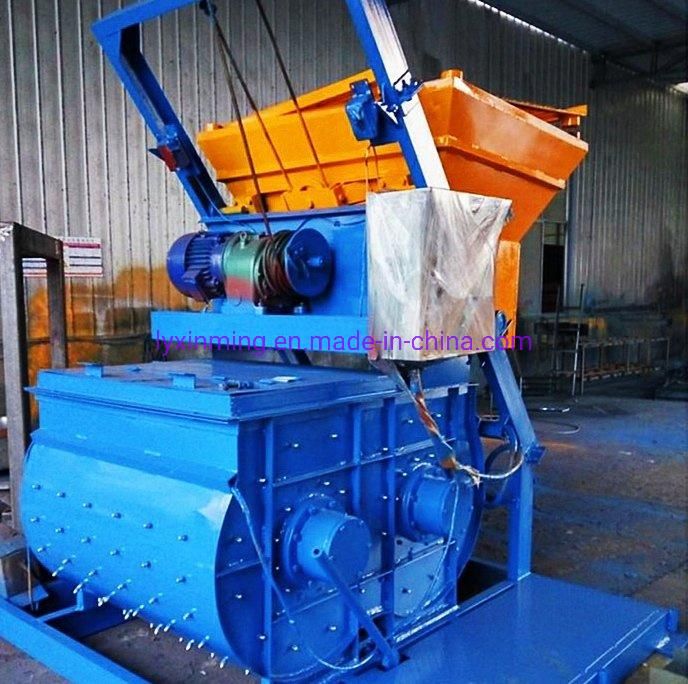

Best Selling High Capacity Qt6-15 Full Automaric Hydraulic Concrete Block Brick Making Machinery for New BusinessBest Selling High Capacity Qt6-15 Full Automaric Hydraulic Concrete Block Brick Making Machinery for New BusinessMain Accessories NamePicturePowerFunctionJS500 MixerBest Selling High Capacity Qt6-15 Full Automaric Hydraulic Concrete Block Brick Making Machinery for New Business34.1KWMxi the Sand,crusheed stone,Cement and water into concreteStackerBest Selling High Capacity Qt6-15 Full Automaric Hydraulic Concrete Block Brick Making Machinery for New Business3KWPut the cartons packed in containers on the pallet according to a certain arrangement,stack them automatically,and then push them out,which is convenient for forklift transportation. Main Parts Best Selling High Capacity Qt6-15 Full Automaric Hydraulic Concrete Block Brick Making Machinery for New BusinessPLC Control System

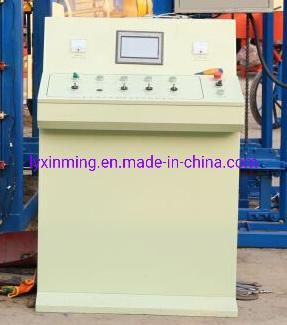

Function:PLC is a remote control system used to replay relay,executive logic and other sequential control functions.

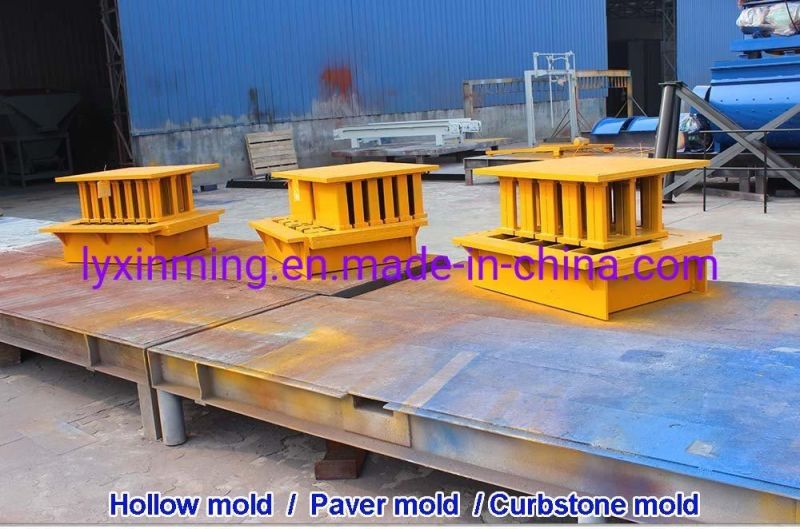

Advantage:PLC has the characteristica of strong universality,convenient use,wide adaptability,high reliability,strong anti-interference ability and simple prongramming. Block mould
Function:Comprise an upper die and a lower die,and that interaction between the upper die and the low die prevents the periphery of the punched material from being deform.

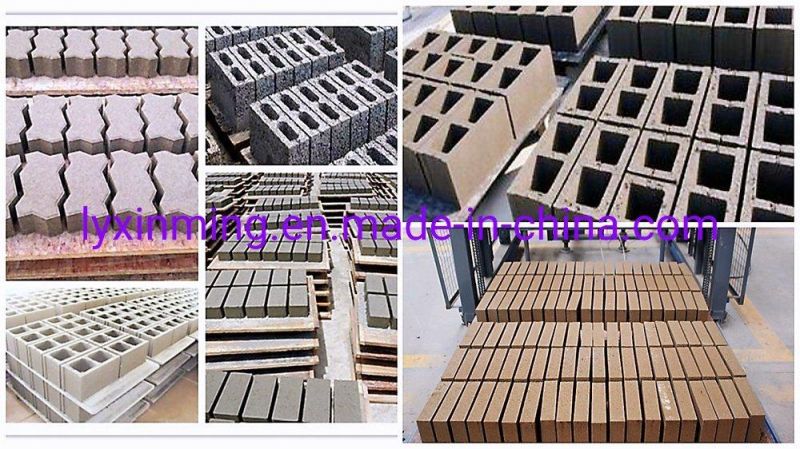

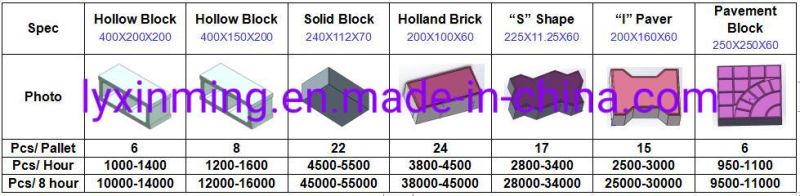

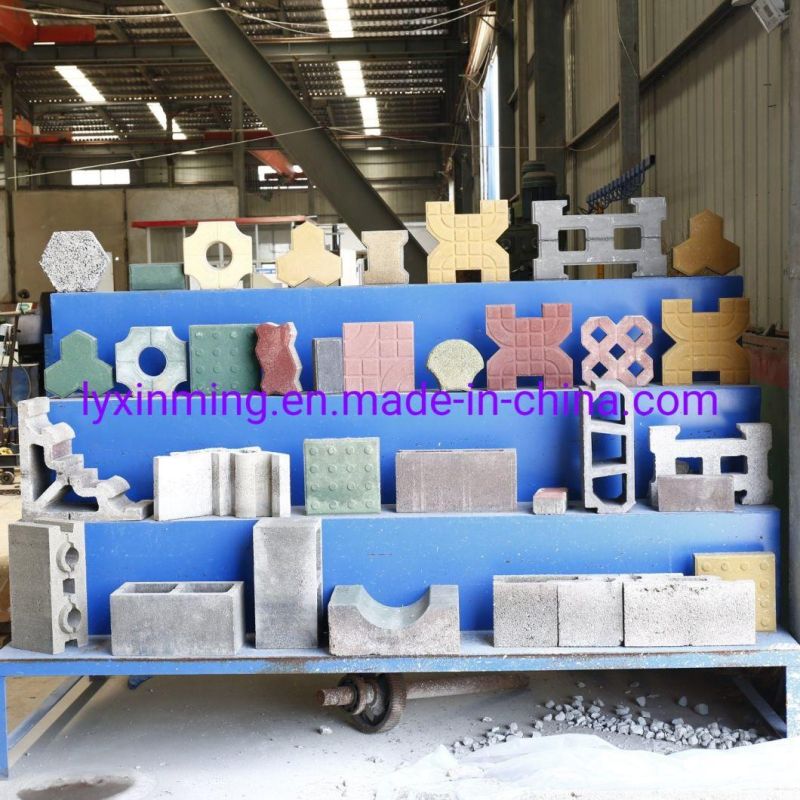

Advantage:After carbonization and wire cutting technology,the mold is more wear-resistant and has a longer service life.Best Selling High Capacity Qt6-15 Full Automaric Hydraulic Concrete Block Brick Making Machinery for New Business Production Capacity Best Selling High Capacity Qt6-15 Full Automaric Hydraulic Concrete Block Brick Making Machinery for New Business Production Samples

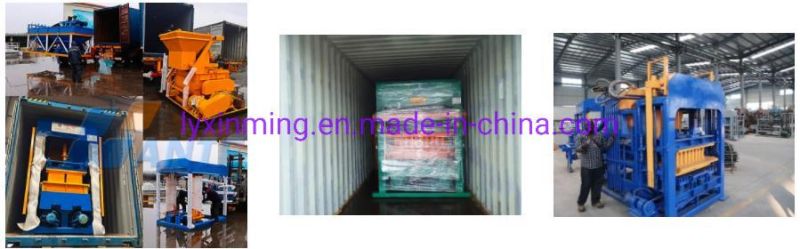

Best Selling High Capacity Qt6-15 Full Automaric Hydraulic Concrete Block Brick Making Machinery for New BusinessBest Selling High Capacity Qt6-15 Full Automaric Hydraulic Concrete Block Brick Making Machinery for New BusinessPackage&Delivery 1.Packing:Seal the whole body with plastic wrap and put it in ironform plywood box.
2.Terms of delivery:From our factory to Qingdao Port,China
3.Guarantee:A warranty period for the Machine is 12 months.

Best Selling High Capacity Qt6-15 Full Automaric Hydraulic Concrete Block Brick Making Machinery for New BusinessOur Services
1.Before-sale services:
1)Guide customers to choose the best appliable machine type;provide the advanced,energy-saving and practical technological process.
2)We are responsible for the process chart and design.
2.Sale services:
1)Products must be inspected strictly before selling.
2)In accordance with the agreements stipulated in the contract.
3)We will organize delivery.
3.After-sale services:
1)Our company will send professional engineers to guide eith device installation,debugging and training operators until customers are fully satisfied.Moreover,we will design and manufacture products,according to the special requirements of customers.
2)Because of the problems caused by quality rather than human factors,we repair them free of charge.The quality guarantee period for machines is one year except the wearing parts.Company information
