• Model NO.：DX 112
• Usage：Roof, Wall, Floor
• Transmission Method：Hydraulic Pressure
• Effective：Easy Operation
• Type：Steel
• Method：Roll Forming Machine
• Processing：Steel
• Product：Steel
• Brick Raw Material：Steel
• Automation：Automatic
• Tolerance：1.0mm
• Name：U C Omega Profile Keel Roll Forming Machine
• Color：According Customers Requriement
• Transport Package：No
• Specification：CE
• Trademark：DIXIN
• Origin：Cangzhou City, Hebei Province, China
• HS Code：84552210
• Production Capacity：20sets,Per Month

         Main parameter1Suitable materialColor steel sheet ,galvanized steel sheet, aluminium sheet2Width of material1000mm or as you required 3Thickness of material0.3-0.8mm or as your needs4Working speed8-12m/min, can be 20m/min5Main motor power5.5kw with cycloidal reducer6Hydraulic station power4kw7Electrical control systemPLC control system 8Shaft diameter75mm10Dimension6.8*1.5*1.5m11WeightAbout 3.2 T12Voltage380V 3phase 50HZ or as the customer's requirements13Material of rollerHigh grade 45# forged steel14Material of cuttingCr12
2. Specific description

(1) Manual decoiler
Un-powered, single head, max capacity: 5000kg

(2) hydraulic pump station
It is controlled by gear wheel oil pump, after filling the hydraulic oil into the hydraulic oil tank, the pump drive the cutting machine to begin the cutting job.

(3) Computer control cabinet
It adopts TaiDa PLC to control, the target sheet length is adjustable.
Computed mode has two modes: Automatic and manual.
Touch screen.

(4) Output table
It is used to load the finished sheet. This kind is convenient for shipment.

(5) Spare parts

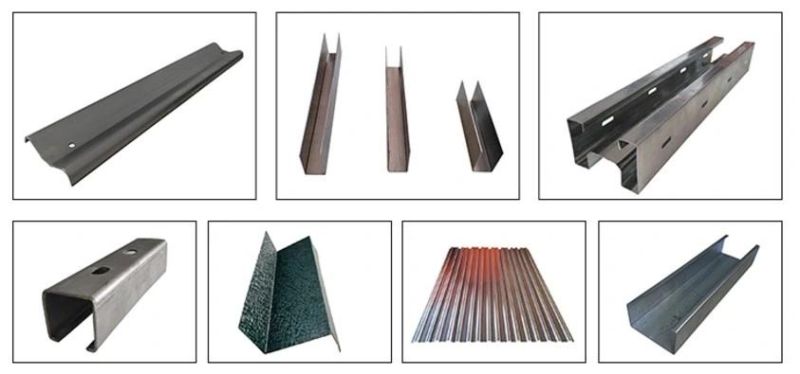

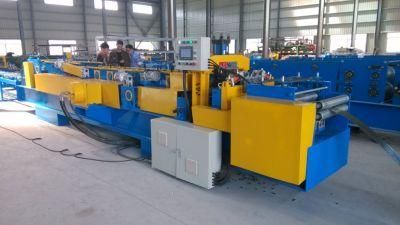

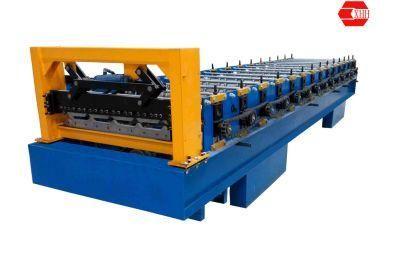

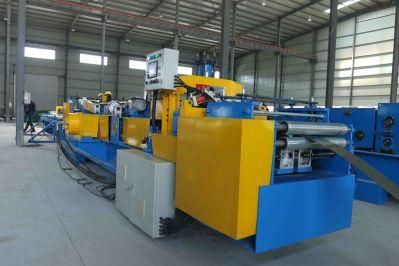

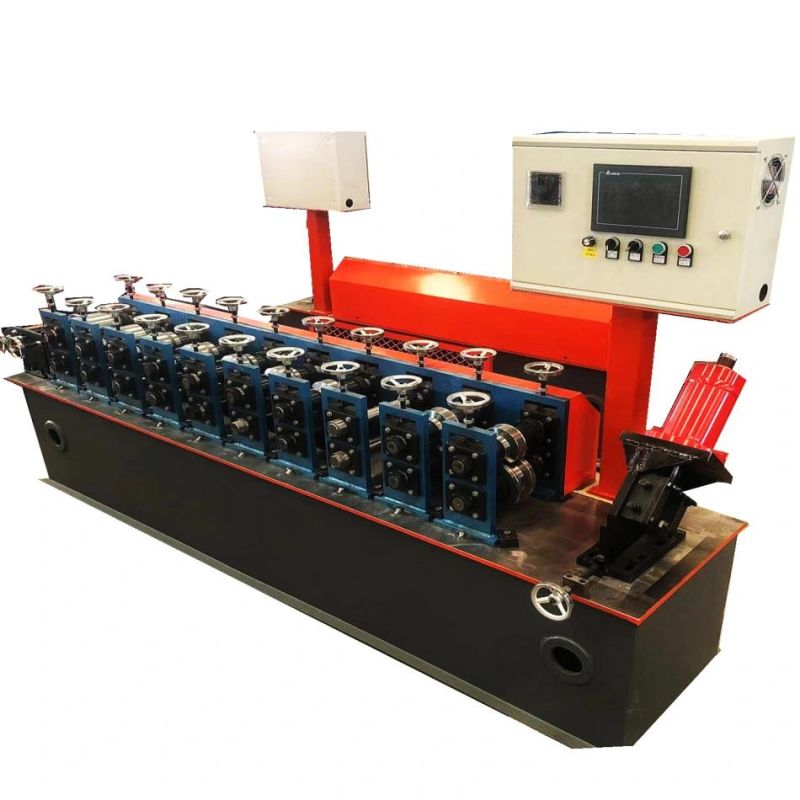

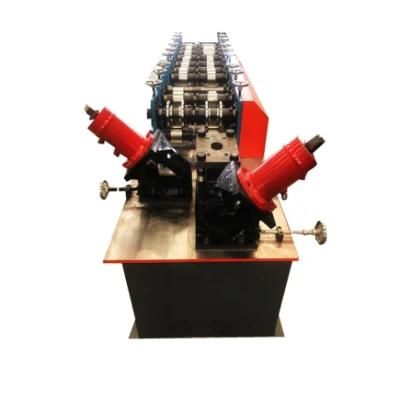

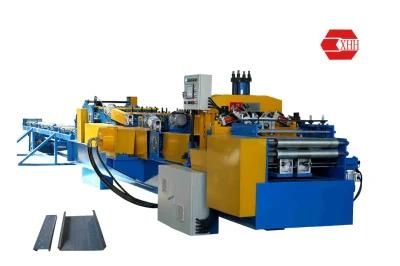

3.Product show

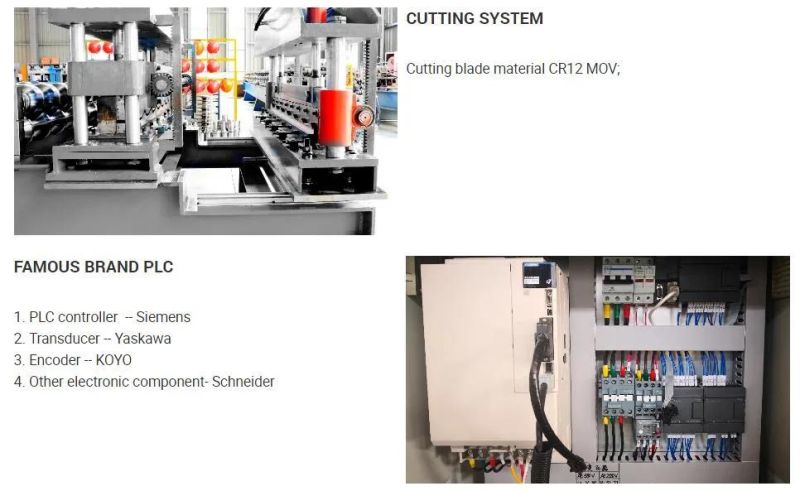

3.Machine parts

3. Payment term

TT, you should pay 30% as the deposit on the order day, then pay 70% before delivery when you inspect goods well in factory or by video



4. Warranty

PRODUCTS WARRANTY

12 months, and we will provide the technical support for the whole life of the equipment.

USAGE AND FEATURE

The feature looks beautiful, elegant and noble. those are widely used in building the factory, hotel, and mobile house and so on.

This kind of machine has the best quality and the best price. It has accurate measurement and easy operating. We can design and manufacture the special type machine according to the customers' requirement and we could provide technical guiding, production, installation, debugging and maintenance service to all customers.

REMARKS

1 .The machine can according to your requirement to set the color

2. Within in one year if any parts go broken we will send new ones to replace for free

3. If you want to learn more about the product please login our website or contract to us

SERVICE

One years for free, after the warranty period. we will help you repair the machine, you only responsible for the labour and parts, when the machine have some problem

EXPORT MARKET

Russia, India, English, Australia, America, Kazakhstan, Tajikistan, Malaysia, Nigeria, Rumania and Albania etc, more than 50 countries and regions.

TERMS

1. Delivery: in stock

2. Package: Export Standard package for container

3. Validity: good for 30days

5. Installation

If you need, we will send one technician to your factory to install & testing the machine. You should assist the technician to get Visa and pay for flight tickets and local accommodation, and pay 80 USD/day for salary.



No.	Name	Unit	Qty
1	Manual decoiler	set	1
2	Main forming machine	set	1
3	PLC control system	set	1
4	Hydraulic pump station	set	1
5	Post cut	set	1
6	Electric motor	set	1
7	Output table	set	1

 6.package $ shipping
Standard export package, water-proof package, covered with plastic film
