Aluminum Profile Heavy Duty Auto End-Milling Machine

JINAN YUEFENG MACHINERY CO., LTD.
  • Condition：New
  • Certification：ISO, CE
  • Automatic Grade：Automatic
  • CNC or Not：CNC
  • Voltage：380V
  • Model：Lxdb-250

Base Info

  • Model NO.：LXDB-250
  • Input Voltage：380V 50Hz
  • Input Power：3*2.2kw
  • Air Pressure：0.5~0.8MPa
  • Air Consumption：150L,Min
  • Worktable Range：0~1050mm
  • Max Processing Hole：40mm
  • Milling Cutter Diameter：φ250mm
  • Adjustment Range：0~85mm
  • Overall Dimension：2300*1200*1700mm
  • Transport Package：Wooden Box
  • Specification：2300*1200*1700mm
  • Trademark：YueFeng
  • Origin：China
  • HS Code：8477800000
  • Production Capacity：40 Window Per Day

Description

Basic Info.

Model NO. LXDB-250 Input Voltage 380V 50Hz Input Power 3*2.2kw Air Pressure 0.5~0.8MPa Air Consumption 150L/Min Worktable Range 0~1050mm Max Processing Hole 40mm Milling Cutter Diameter φ250mm Adjustment Range 0~85mm Overall Dimension 2300*1200*1700mm Transport Package Wooden Box Specification 2300*1200*1700mm Trademark YueFeng Origin China HS Code 8477800000 Production Capacity 40 Window Per Day

Product Description

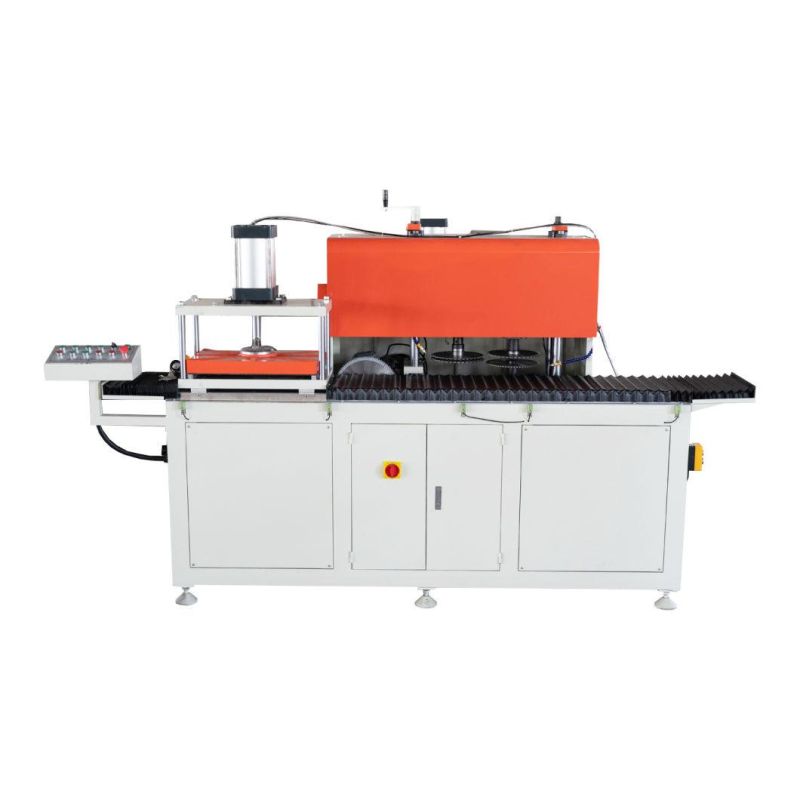

Aluminum Profile Heavy Duty Auto End-Milling Machine       Aluminum Profile Heavy Duty Auto End-Milling Machine
Aluminum Profile Heavy Duty Auto End-Milling Machine

1.Used for end milling of transom and door frames in aluminum and PVC profiles.
2.Process multi-piece profiles in one clamp results high efficiency.
3.Convenient tool guard adjustment, can be meet different processing requirement.
4.Can install vertical end miller according to customer requirements.
5.Airdraulic damping cylinder adopted in feeding system, gives stable velocity.
I6.t has features of easy operation, reliable performance, advanced technique and convenient maintenance.

Technical Parameter:
ModelLXDB-250
Input voltage380V 50Hz
Input power3×2.2Kw
Air pressure0.5~0.8MPa
Air consumption150L/min
Motor rotation speed2800r/min
Worktable range0~1050mm
Max processing hole40mm
Milling cutter diameterφ250mm
Adjustment range0~85mm
Overall dimension2300×1200×1700mm

 Aluminum Profile Heavy Duty Auto End-Milling Machine
Aluminum Profile Heavy Duty Auto End-Milling Machine
Aluminum Profile Heavy Duty Auto End-Milling Machine
Aluminum Profile Heavy Duty Auto End-Milling MachineAluminum Profile Heavy Duty Auto End-Milling MachineFAQ

1.Are your company a trading one or a factory?
Factory + trade (integration), 36 years' focusing on Upvc,Aluminum Window and Doors Equipment ,insulating glass equipment and curtain wall equipment.

2.After an order is placed, when to deliver?

♦ Generally about 15 days,  If  we have inventory, we can arrange shipment within 5 days.
♦ Please be aware that our production lead times depend on specific items and item quantities.
3.What about the warranty with after - sales services?
♦ 24 months warranty. Besides,we can help you to solve your problem freely;

♦ After the warranty, the professional after-sale service team will provide perfect technical support,and help customer solve problem encountered while using our product, handles guest problems and complaints in a professional and timely.
4.What about the services and product' quality?
♦ Each machine must be carried out 100% quality examination and test before shipment.

♦ And all machines meet ISO and CE certification.
5. We don't know the machine operation, what should we do?

♦ We can send engineer to your place, or we provide video training to show you how to install & operate, let engineer help you online.
