• Model NO.：Qt8-15 Price List of Concrete Block Making Machine
• Raw Material：Concrete,Cement,Flyash,Sand and So on
• Vibration Frequency：2800-4500 ( R,Min)
• Color：According to Your Needs
• Weight：8t
• Molding Cycle：15s
• Vibration Type：Platform Vibration
• Pallet Size：1020X900mm
• Hydraulic：Yes
• Transport Package：Nude Packages According to Your Needs
• Specification：17280-26880pcs,8 hours
• Trademark：shiyue
• Origin：Shandong China
• HS Code：8474802000
• Production Capacity：5000sets,Year

Technical Parameters of QT8-15 block machine

Overall Dimension

8400*1700*2950mm

Rated Pressure

21MPa

Main Vibration Form

Platform Vibration

Vibration Frequency

2800~4500 ( r/min)

Pallet Size

950*900mm

Molding cycle

15-25 (s)

Overall Power

37KW

Vibration Force

60KN

Total Mass

12.5T

Demolding method

Hydraulic

General water consumption

12T/Day

Factory Area

600m2

Applied Products

Concrete blocks, hollow/solid blocks, pavers, interlocking blocks , curbstone,

 colored pavers ,etc.

Raw Material

Crushed stone, sand , cement, dust, and fly ash, gravel, slag,

and other raw material , etc.

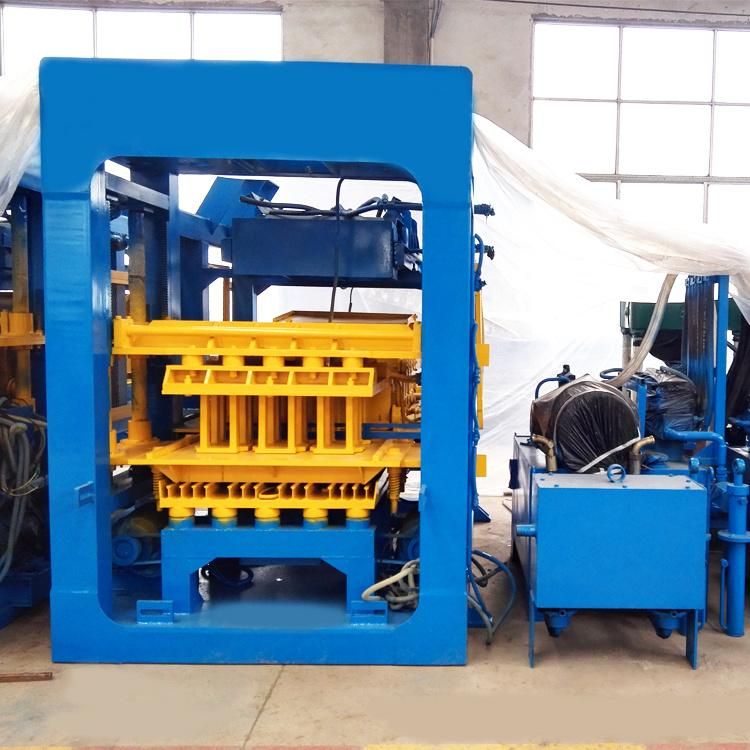

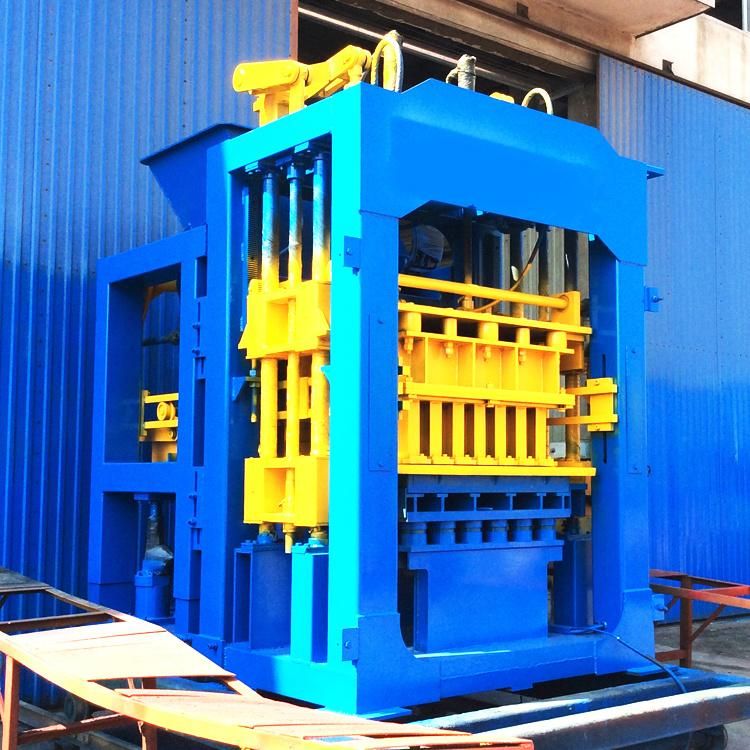

Machine photos






Productivity

the machine can make many kinds of blocks only by changing the molds


Item

Specification Size(L*W*H)

Qty/mold

 (pcs)

Cycle Molding

Per hour

(Pcs)

Hollow brick

400*200*200mm

8

16-20s

1800pcs/25.3m3

Porous

Brick

240*115*90mm

21

15-20s

5000pcs/12.4m3

Standard

Brick

240*115*53mm

 42

15-17s

10000pcs/14.6m3

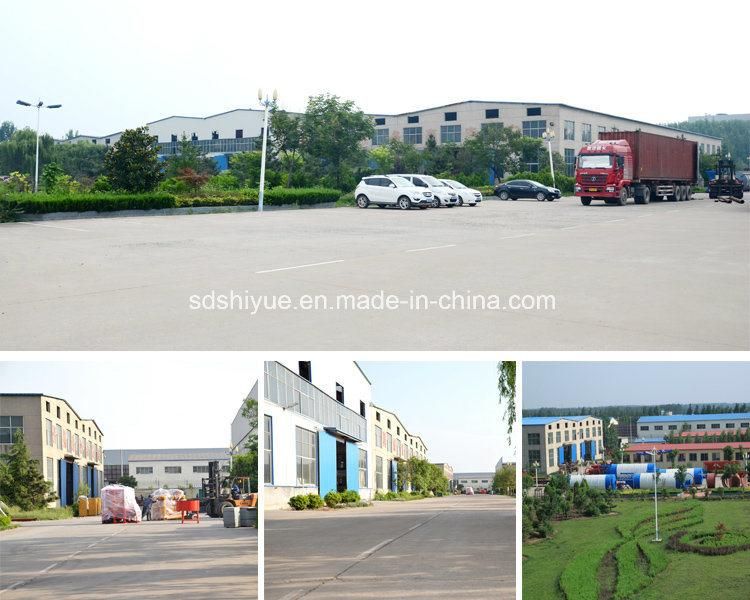

our company

Shiyue Machinery is a professional manufacturer which is engaged in independently researching and developing, manufacturing and selling crushing equipment,block machine etc construction building machines. We have exported product to many countries, such as Mongolia, Russia, Philippines,India, Vietnam, Uzbekistan, Kyrgyzstan, Kazakhstan, Nigeria, South Africa,Oman ,Botswana, America etc. What's more,we receive good feedback about service and quality. We are not main for sales, but also for development of the market all over the world. Do our best to satisfy customers' need and gurantee quality is our principal .With 27 years' brick block machine manufacture & export experience,welcome all the customers to our company and build business relationship with us.

FAQ

1. Q: What is the molds sizes ? i want to make a special one

    A: It is noproblem ,All kinds of mould can be made by customer's drawings

2.Q: How is about the payment terms ?

   A: It is usually T/T 30% down payment, 70% upon machinery completion, we can also do other payment terms

3. Q:When will your side delivery the machine for me ?

    A: The machine usually be shipped within 20days after the deposit,and it also depends on the other conditions

4. Q:How is about the package ?

    A: Nude packing,or according to your needs

5. Q: How is about the warranty ?

   A: All the machine enjoys one year's warranty, in this period , any problems or partsof the machine, please feel free to contact us . We will try our best to make it .
