High Speed Aluminium Window Door Copy Router Machine
JINAN YUEFENG MACHINERY CO., LTD.- Condition：New
- Certification：ISO, CE
- Automatic Grade：Automatic
- CNC or Not：not CNC
- Voltage：380V
- Model：Lzf-300*100g
Base Info
- Model NO.：LZF-300*100G
- Input Voltage：380V 50Hz
- Input Power：1.1kw
- Air Pressure：0.4~0.6MPa
- Air Consumption：30L,Min
- Motor Rotation Speed：11000r,Min
- Cutter Diameter：5mm ,8mm
- Copy Routing Range：300*100mm
- Overall Dimension：880*680*1460mm
- Transport Package：Wooden Case
- Specification：880*680*1460mm
- Trademark：YueFeng
- Origin：Jinan, China
- HS Code：8477800000
- Production Capacity：30set,Month
Description
Basic Info.
Model NO. LZF-300*100G Input Voltage 380V 50Hz Input Power 1.1kw Air Pressure 0.4~0.6MPa Air Consumption 30L/Min Motor Rotation Speed 11000r/Min Cutter Diameter 5mm /8mm Copy Routing Range 300*100mm Overall Dimension 880*680*1460mm Transport Package Wooden Case Specification 880*680*1460mm Trademark YueFeng Origin Jinan, China HS Code 8477800000 Production Capacity 30set/MonthProduct Description

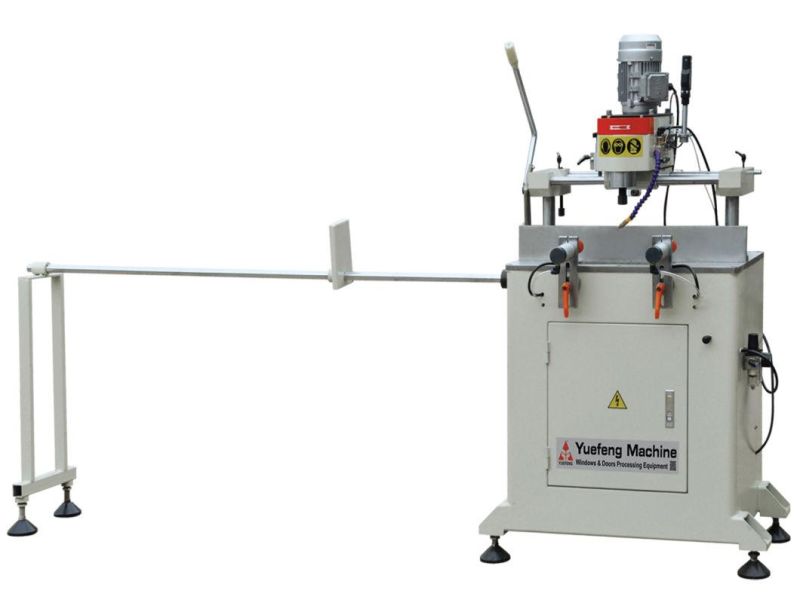

LZF3-300×100G Lock Hole Processing Machine
Feature
1.It is composed of three-hole drill and copy-routing mill.
2.It process various kinds of holes, grooves and water-slots.
3. It adopts high-speed precision spindle, results good rigidity, stable and reliable.
4.It has the auto-locking function when feeding, more portable operation.
5.The machine head for three-hole drill be installed on the back of the machine, more convenient.
6.Changeable templates with different holes and grooves.
7.It has the features of wide application range, high efficiency, safe and easy operation.
Technical Parameter:
| Model | LZF3-300×100G |
| Input voltage | 380V 50Hz |
| Input power | 1.1kw |
| Air pressure | 0.4~0.6MPa |
| Air consumption | 100L/min |
| Motor rotation speed | 11000r/min |
| Cutter diameter | 5mm/8mm |
| Max milling range | 300*100mm |
| Overall dimension | 880×680×1460mm |
