• Model NO.：Various
• Spares Parts：Supply
• Weight：Reference to The Form
• Certificate：ISO9001, ISO14000, Ce
• Installation：Under Our Engineer′s Guide
• Design：We Offer
• Testing：Supply
• After Sale Service：for The Whole Using Life
• Company Established：1956
• Transport Package：Export Standard Package
• Specification：ISO9001, ISO14000, CE
• Trademark：ZK Brand
• Origin：Zhengzhou, China
• HS Code：8417
• Production Capacity：100 Set,Sets Per Year

Basic Info.

Model NO. Various Spares Parts Supply Weight Reference to The Form Certificate ISO9001, ISO14000, Ce Installation Under Our Engineer′s Guide Design We Offer Testing Supply After Sale Service for The Whole Using Life Company Established 1956 Transport Package Export Standard Package Specification ISO9001, ISO14000, CE Trademark ZK Brand Origin Zhengzhou, China HS Code 8417 Production Capacity 100 Set/Sets Per Year

Product Description

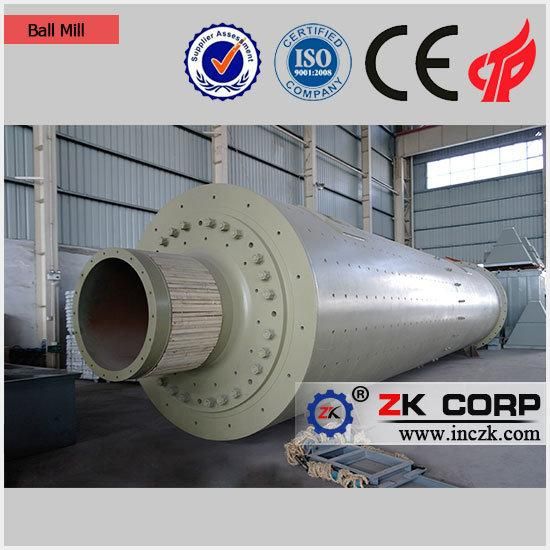

Application Of Cement Ball Mill
Cement Ball Mill are generally used to grind material 1/4 inch and finer, down to the particle size of 20 to 75 microns. To achieve a reasonable efficiency with Cement Ball Mill, they must be operated in a closed system. Various classifiers, such as screens, spiral classifiers, cyclones and air classifiers are used for classifying the discharge from Cement Ball Mill. Cement Ball Mill is an efficient tool for grinding many materials into fine powder, is widely used in building material, chemical industry, etc. There are two ways of grinding: The dry process and the wet process. It can be divided into tabular type and flowing type according to different forms of discharging material.




Cement Ball Mill Working Principle:
The Cement Ball Mill is a horizontal rotating device transmitted by the outer gear. The materials are transferred to the grinding chamber through the quill shaft uniformly. There are ladder liner, ripple liner and different specifications of steel balls in the chamber. The centrifugal force caused by rotation of barrel brings the steel balls to a certain height and impact and grind the materials. The ground materials are discharged through the discharging board thus the grinding process is finished.

Advantage of Our Company:
1) Great history and nice reputation
2) Owning the biggest workshop and advanced equipments
3) Strict management and good prestige

Company Name: Henan Zhengzhou Mining Machinery Co., Ltd.
Official Website: http://hnzkjq.en.made-in-china.com/ & http://hnzkjq.en.made-in-china.com/
24-hour Free Sales Consulting Phone: 861-0371 -5590 2866.
Company Address: Qiaolou caizhai industrial estate, Xingyang city, Henan Province
Please pay attention to the company's other products:
Price of rotary kiln: http://hnzkjq.en.made-in-china.com
Rotary Kiln: http://hnzkjq.en.made-in-china.com
Preheater: http://hnzkjq.en.made-in-china.com
Cement Mill: http://hnzkjq.en.made-in-china.com
Rotary Dryer: http://hnzkjq.en.made-in-china.com
Raw Mill: http://hnzkjq.en.made-in-china.com
Ball Mill: http://hnzkjq.en.made-in-china.com

Model and specification	Rotate speed of cylinder (r/min)	Ball load(t)	Feeding granularity(mm)	Discharging granularity(mm)	Production(t/h)	Power(kw)	Weight(t)
900× 1800	38	1.5	≤ 20	0.075-0.89	0.65-2	18.5	3.6
900× 3000	38	2.7	≤ 20	0.075-0.89	1.1-3.5	22	4.6
1200× 2400	32	3.8	≤ 25	0.075-0.6	1.5-4.8	45	12.5
1200× 3000	32	5	≤ 25	0.074-0.4	1.6-5	45	12.8
1200× 4500	32	7	≤ 25	0.074-0.4	1.6-5.8	55	13.8
1500× 3000	27	8	≤ 25	0.074-0.4	2-5	90	17
1500× 4500	27	14	≤ 25	0.074-0.4	3-6	110	21
1500× 5700	27	15	≤ 25	0.074-0.4	3.5-8	132	24.7
1830× 3000	24	11	≤ 25	0.074-0.4	4-10	180	28
1830× 6400	24	23	≤ 25	0.074-0.4	6.5-15	210	34
1830× 7000	24	25	≤ 25	0.074-0.4	7.5-17	245	36
2200× 5500	21	30	≤ 25	0.074-0.4	10-22	370	48.5
2200× 6500	21	31	≤ 25	0.074-0.4	14-26	380	52.8
2200× 7500	21	33	≤ 25	0.074-0.4	16-29	475	56
