• Model NO.：Qt5-15
• Molding Area：1060*630mm
• Power of Host Machine：26.65kw
• Viberation Force：45-55kn
• Dimension of Host Machine：3000*1900*2660mm
• Weight of Host Machine：4.5t
• Mixer Model：Js500
• Water Consumption：10-20t,Day
• Color：Blue(Adjustable)
• Transport Package：Container
• Specification：3000*1900*2660mm
• Trademark：DUYUE
• Origin：China (Mainland)
• HS Code：8474802000
• Production Capacity：30 Sets Per Month

Basic Info.

Model NO. Qt5-15 Molding Area 1060*630mm Power of Host Machine 26.65kw Viberation Force 45-55kn Dimension of Host Machine 3000*1900*2660mm Weight of Host Machine 4.5t Mixer Model Js500 Water Consumption 10-20t/Day Color Blue(Adjustable) Transport Package Container Specification 3000*1900*2660mm Trademark DUYUE Origin China (Mainland) HS Code 8474802000 Production Capacity 30 Sets Per Month

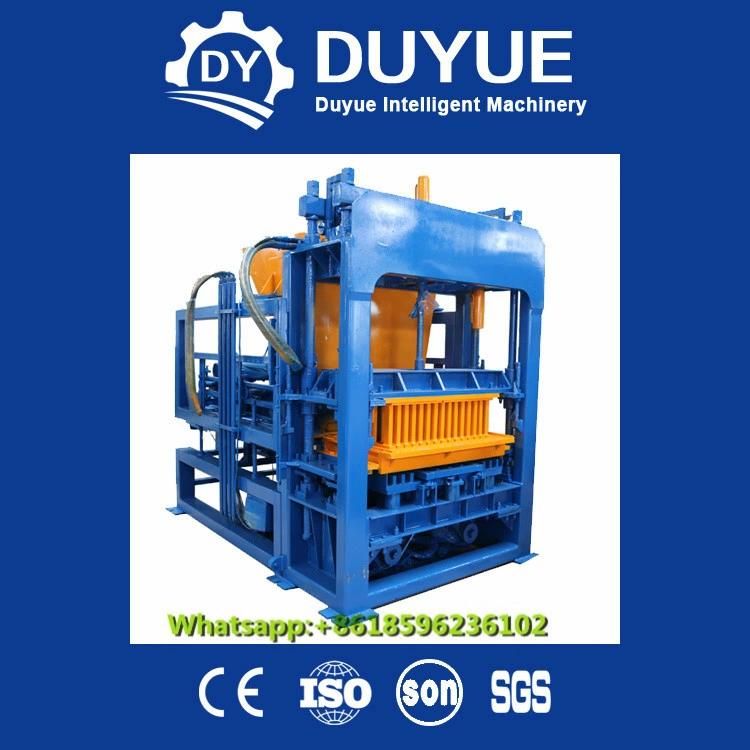

Product Description

Production description

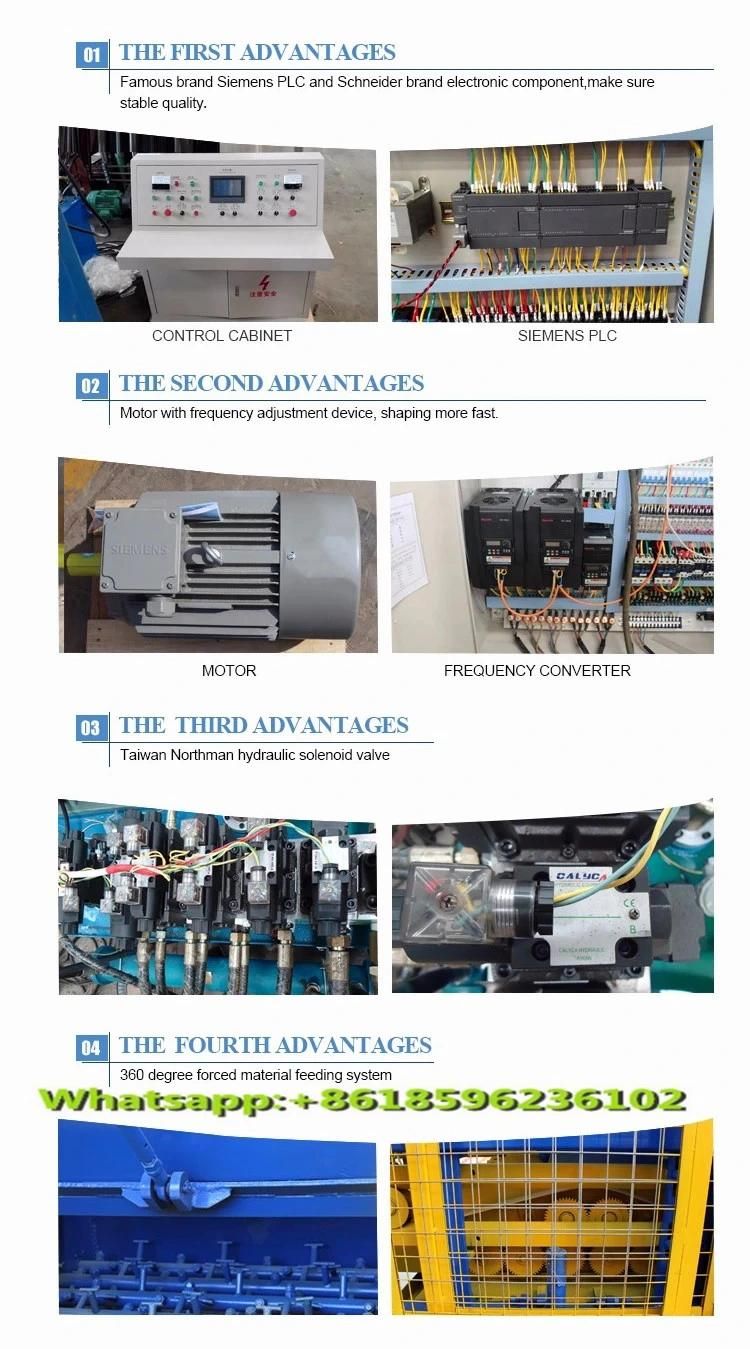

1.PLC control system and screen display is from Germany Siemens, and electrical components is from Schneider, it is manpower saving for its PLC control(Siemens), automatic material feeding, automatic pallet conveyance, automatic leading-out and hydraulic molding, it can work automatically round and round.
2.The hydraulic elements are from Taiwan ASHUN.Circulating water cooling system ensure the machine can work for a long time.
3.Hydraulic pressure and vibration work together to achieve high strength and high density of the bricks.
4.Synchronous demolding system.Themould is driven by gears and racks, it ensures the mould move accurately and stably, so the bricks will be given perfect shape with precise measurements.
5.It use heat-resistant motor which can continue working freely under 130°C, it's very durable.
6.Multiple Function:Standard brick, hollow block, paving brick, curb stone, grass land brick etc be made by changing moulds.

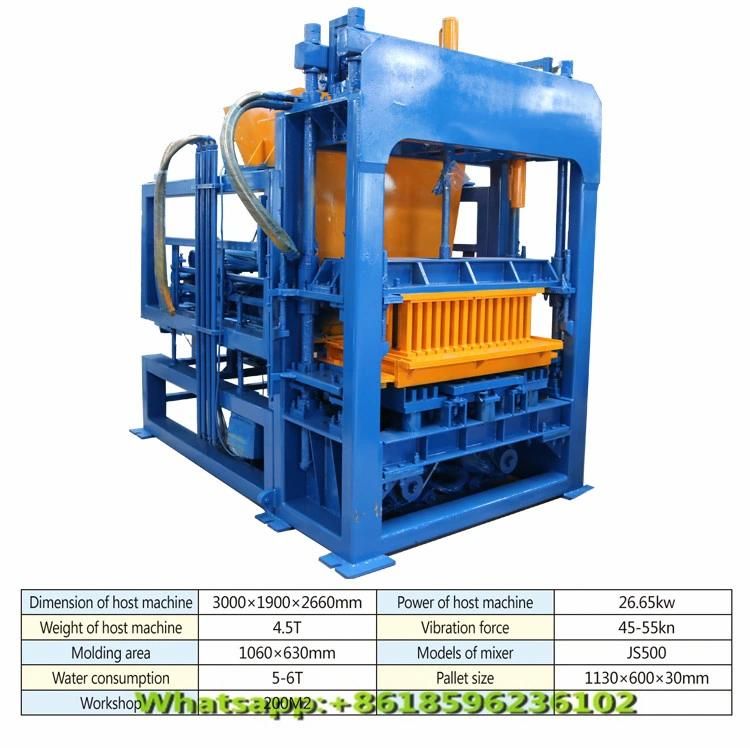

Main technical parameters




Product details

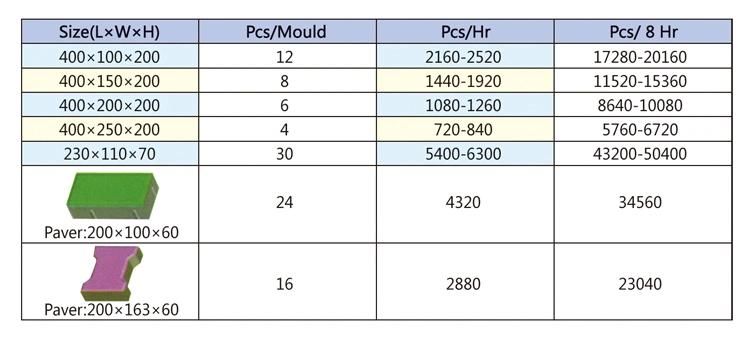

Theoretical production efficiency
