• Model NO.：LJB2B-CNC-5000
• Input Voltage：380V 50Hz
• Input Power：6.8kw
• Air Pressure：0.5~0.8MPa
• Air Consumption：200L,Min
• Spindle Speed：3200r,Min
• Cutting Length：380~5000mm
• Cutting Width：10~135mm
• Cutting Height：10~230mm
• Cutting Angle：45deg;~ 157.5deg
• Transport Package：Plastic Film or Depends on Demands
• Specification：7000*1800*1800mm
• Trademark：Yuefeng
• Origin：Jinan Shandong, China
• HS Code：8477800000
• Production Capacity：10 Sets,Month

Basic Info.

Model NO. LJB2B-CNC-5000 Input Voltage 380V 50Hz Input Power 6.8kw Air Pressure 0.5~0.8MPa Air Consumption 200L/Min Spindle Speed 3200r/Min Cutting Length 380~5000mm Cutting Width 10~135mm Cutting Height 10~230mm Cutting Angle 45deg;~ 157.5deg Transport Package Plastic Film or Depends on Demands Specification 7000*1800*1800mm Trademark Yuefeng Origin Jinan Shandong, China HS Code 8477800000 Production Capacity 10 Sets/Month

Product Description

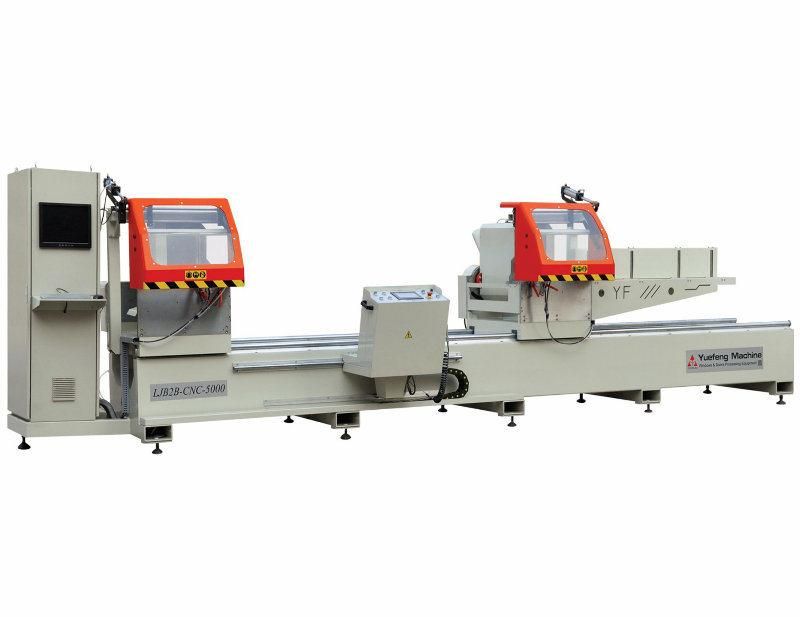

LJB2B-CNC-5000  CNC Arbitrary Angle Double Mitre Saw
Product Description

>Mainly used for profiles cutting, such as aluminum, PVC and curtain wall profiles.

>Saw blades be installed on the motor directly, with the lever swing mode for cutting.

>The high accuracy imported saw blades result high accuracy cutting.

>The speed reducer be driven by Imported servo motor, results any angle could be cut between 45°~157.5°

>The Imported control system could optimize the profile cutting.

>Several profiles size could be input in once, so the cuttings could be finished continuous.

>Input the cutting datas you need directly, do not need back to reference point first when changing the cutting length.

>The ball screw be driven by imported servo motor drives the saw head, results high speed and high accuracy for repeat locating.

>With bar code printer, result a digital production.

Technical Parameter:


Model	LJB2B-CNC-5000
Input voltage	380V 50Hz
Input power	6.8Kw
Air pressure	0.5~0.8MPa
Air consumption	200L/min
Spindle speed	3200r/min
Cutting length	380~5000mm
Cutting width	10~135mm
Cutting height	10~230mm
Cutting angle	45°~ 57.5°
Saw feeding speed	0~3m/min
Saw blade standard	φ500×4.4×φ30×Z120
Overall dimension	7000×1800×1800mm
