• Model NO.：NM1156
• Customized：Customized
• Condition：New
• Control Type：Electric
• Automatic Grade：Automatic
• Product Name：C Shape Purline C Beam Making Roll Forming Machine
• Coil Material Thickness：1--3mm
• Processing Material：Galvanized Steel
• Roller Material：Cr12MOV
• Roller Station：12-18 Stations
• Driven：Chain Transmission
• Forming Speed：10-15m,Min
• Punching Type：Hydraulic Punching
• Cutting Type：Hydraulic Post-Cutting
• Operation Type：Touching Screen
• Transport Package：Plastic Film
• Specification：80-300
• Trademark：Nexus Machinery
• Origin：Cangzhou
• HS Code：8455221000
• Production Capacity：10
• Package size per unit product：850.00cm * 80.00cm * 150.00cm
• Gross weight per unit product：5000.000kg

o :

Decoiler System Main Parameter :

1

Loading capacity

1.5-3.0T

2

Uncoiling width

300-1000mm

3

Inner diameter

450-550mm



No :

Roll Forming System Main Parameter :

1

Length of the main part

about 3000*1000*400-8800*1500*1200

2

Weight of main part

3-8 tons

3

Voltage

380V/50HZ3Phase (as customer's request)

4

Roller fixer

guide column

5

Frame

steel plate welded/ Memorial arch frame type

6

Frame thickness

25mm

7

Drive mode

gear

8

Material of rollers

GCr15MoV

9

Material of shafts

45# steel with tempering

10

Diameter of shafts

φ40mm

11

Number of rollers

10-16 rollers

12

Main power

3-11kw

No :

Cutting System Main Parameter :

1

Material of blades

Gcr12MoV quenched

2

Power supply

hydraulic power

3

Frame

Pillar style with rack & pinion system

4

Stroke switch

non-contact photoelectric switch

5

Hydraulic motor Power

3-5kw

6

Hydraulic oil:

46#

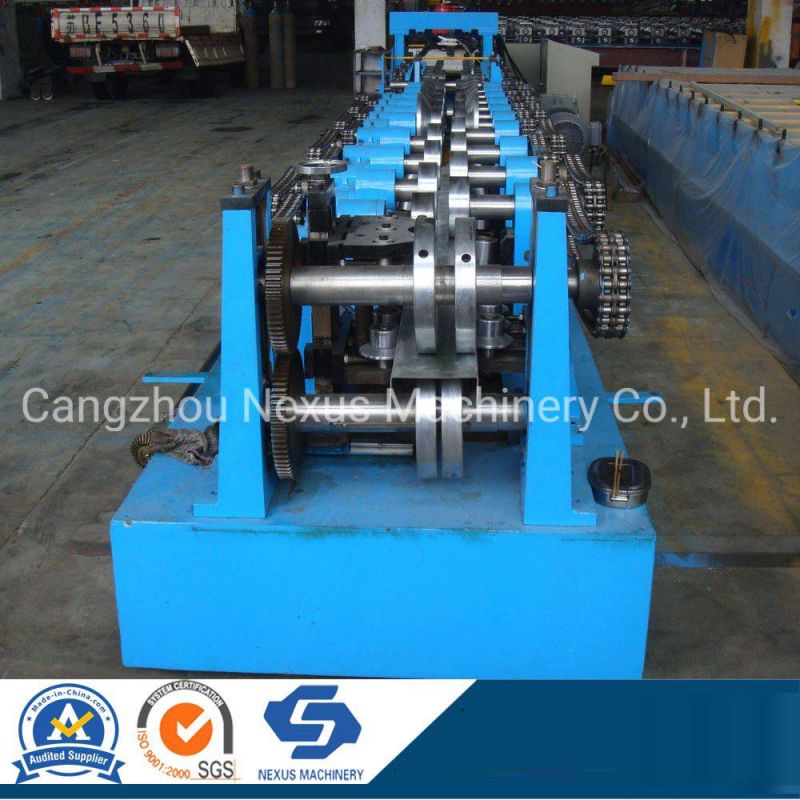

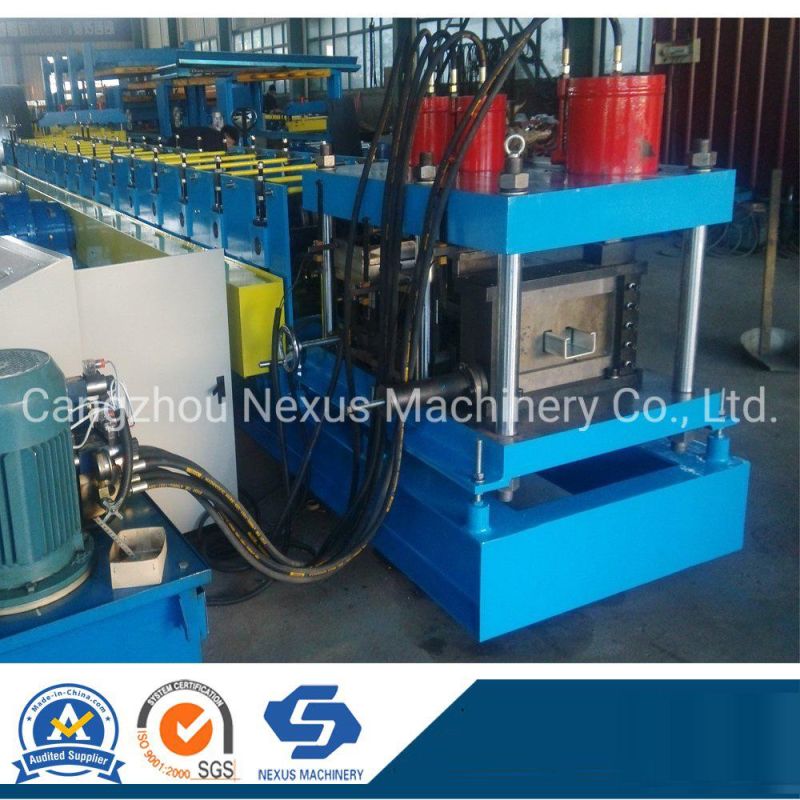

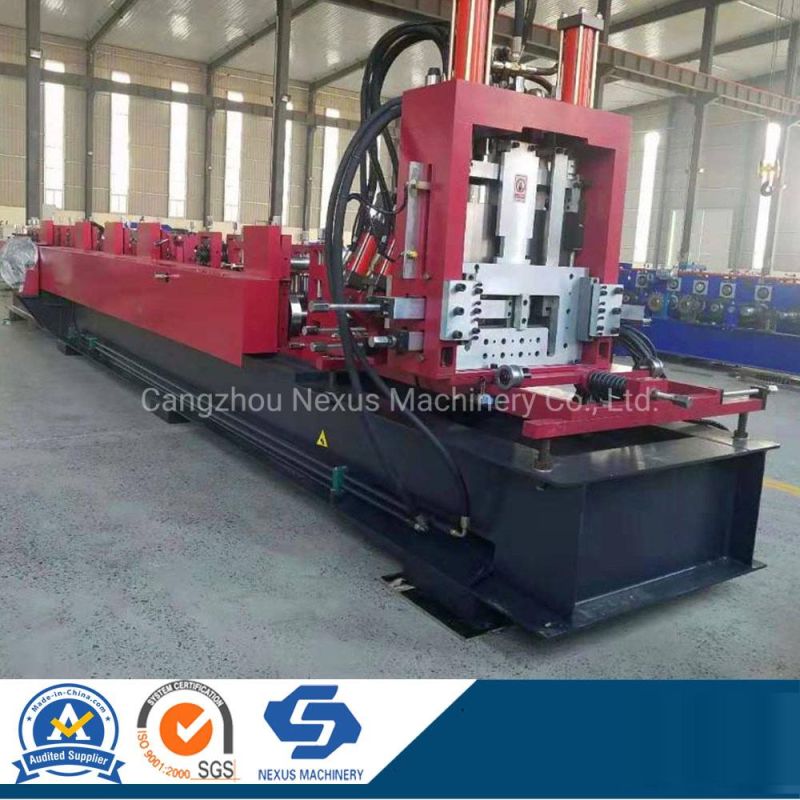

Photo for C Shape Purline C Beam Making Roll Forming Machine






Exhibitions Photos:


ABOUT US:
CANGZHOU NEXUS MACHINERY CO., LTD Company is in producing sandwich panel line all kinds of roll forming machines, such as glazed tile roll forming machine, roof/wall panel roll forming machine, double layer roll forming machine, Full-Automatic C and Z Purlin Roll Forming Machine, floor deck roll forming machine, highway guardrail machine, dust shield machine, ridge cap machine, roll shutter door machine, uncoiling & leveling & slitting & recoiling line, all kinds of decoilers and stackers, and many other related equipments like shear, punch, slitter, leveler, crimping curving, bending and so on,different sizes roofing sheet,PPGI/GI ,Alu-Zinc steel coils ,Galvanized steel coils ,Galvanized steel sheet ,Galvalume steel coils/sheet ,cold/hot rolled sheet/cols , professional service and favorable price , satisfied with the quality ,welcome to every customers come to visit and buy ! ! !We will 24 hourse services for you ,please don't hesitate to contact us when you need.

Company Certificates:


FAQ:
1. How long the machine could be made?- Normally speaking, light gauge steel frame machine could
be made without 45 working days. If you need machines in a hurry, we can make it for you
less than a month.
2. How to visit your company?
-a.Fly to Beijing airport:   By high speed train From Beijing Nan to Cangzhou Xi (1 hour),
then we can pick up you.
b.Fly to Shanghai Airport: By high speed train From Shanghai Hongqiao to Cangzhou Xi(4.5
hours), then we can
pick up you.
3. Do you have after sales support?
-Yes, we are happy to give advice and we also have skilled technicians available across the
world.We need your machines running in order to keep your business running.
