• Model NO.：QT5-15
• Color：Client Requirement
• Vibration Frequency：2800-4500 ( R,Min)
• Weight：5t
• Block Type：Hollow Block,Solid Block,Paver,Curbstones,etc
• Molding Cycle：15s
• Vibration Type：Platform Vibration
• Raw Material：Cement,Sand,etc
• Power：26.5kw
• Transport Package：Standard Export Package
• Specification：7400x1950x2800mm
• Trademark：SHIYUE
• Origin：China
• HS Code：8474802000
• Production Capacity：5000set,Year

Technical Parameters

Overall Dimension

7400*1950*2800mm

Rated Pressure

21MPa

Main Vibration Form

Platform Vibration

Vibration Frequency

2800~4500 ( r/min)

Pallet Size

1100*550mm

Molding cycle

15-25 (s)

Overall Power

26.5KW

Vibration Force

60KN

Total Mass

6T

Demolding method

Hydraulic

General water consumption

8T/Day

Factory Area

500m2

Applied Products

Concrete blocks, hollow/solid blocks, pavers, interlocking blocks , curbstone,

colored pavers ,etc.

Raw Material

Crushed stone, sand , cement, dust, and fly ash, gravel, slag, and other raw

material , etc.



Advantage of QT5-15 block machine



1.This is a fully automatic production line.easy to operate and save manpower.



2.This machine can serve several purposes can produce hollow blocks,solid blocks,pavement bricks,

curbstones,riverside bricks,revetment bricks,grassed bricks and so on with different moulds.



3.All the procedures are operated by PLC and equip with out-and-in date device to realize person-machine conversation.

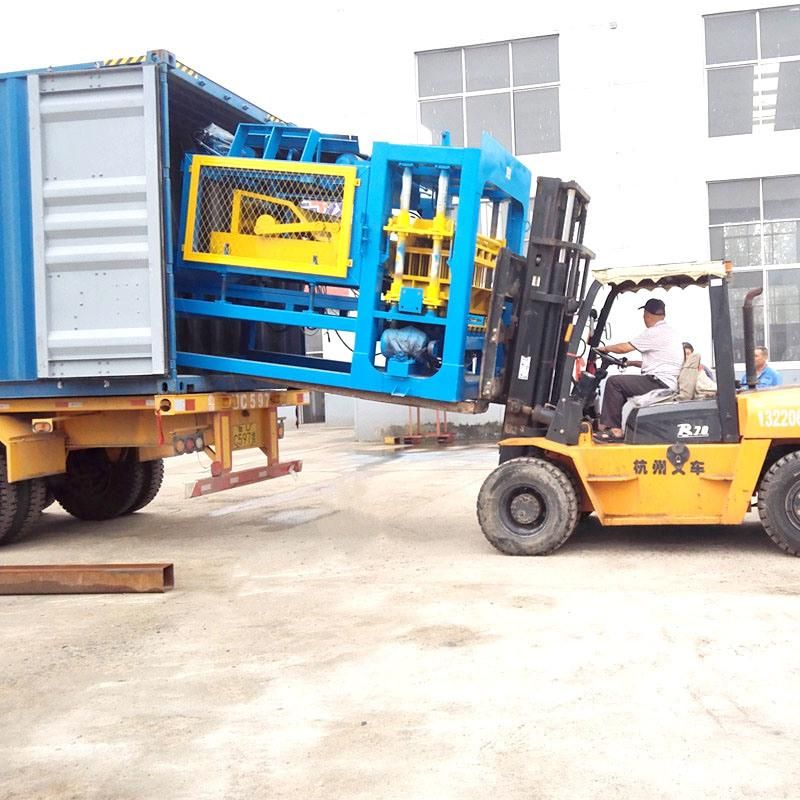

Packaging & Shipping

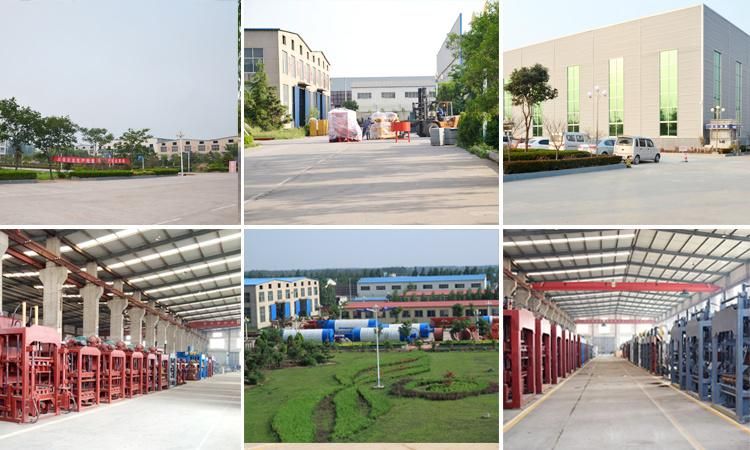

Company Information







Our customer



Our Services



Installation service:

Machine installation and operation training will be supported by our engineers in buyer's place about 1 week.

The buyer should support following:

1. USD80/day for our engineers

2. Accommodation and Round-trip tickets.

After sale service:

During the 1st year, we will supply followings for free:

1. spare parts of machine and equipment (except quick-wear parts)

  2. repair for equipment's broken (design, work process and production)
