• Transport Package：Container
• Specification：8800*1500*1600mm
• Trademark：kexinda
• Origin：Hebei
• HS Code：8455221000
• Production Capacity：30sets,Month

Basic Info.

Transport Package Container Specification 8800*1500*1600mm Trademark kexinda Origin Hebei HS Code 8455221000 Production Capacity 30sets/Month

Product Description

KEXINDA Metal Floor Decking Roof Roll Forming Machine

A. Our Advantage



1.PLC Automatic Computer Control
2.Operation Easy
3.Running Is Safe Steady And Reliable
4.Lifetime Repair Guarantee

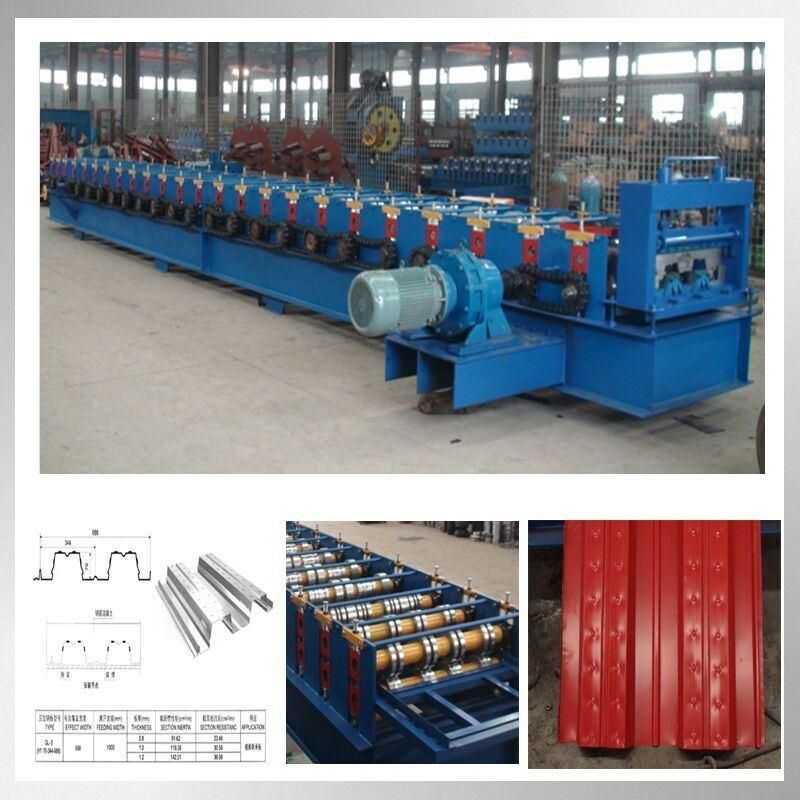

    B. Machines Pics And Sample




C.Technical Parameters

Metal Floor Decking Roof Roll Forming Machine



Configurations	Manual Uncoiler ,Guiding Platform ,Coil Strip Leveler ,Main Machine Of Roll Forming ,Electro-Motor,Cutting Device ,Hydraulic Station ,PLC Control, Supporter Table.
Control System	PLC Panasonic Inverter
Main Frame	400mm H-Beam
Main Power	18.5 kw
Pump Power	7.5 kw
Power Supply	380V, 3-Phase,50Hz
Forming Speed	8-10m/min
Roll Station	24 stands
Roller Diameter	95mm
Hydraulic Pressure	18-20MPa
Forming Size	688mm
Feeding Thickness	0.3-0.8mm
Feeding Width	1000mm
Backboard Thickness	22mm
Chain Size	66mm
Cutter Standard	Cr12
Roller Standard	Cr12
Cr-Plating Size	0.05mm
Overall Size	15000×1200×1100mm
Total Weight	19T

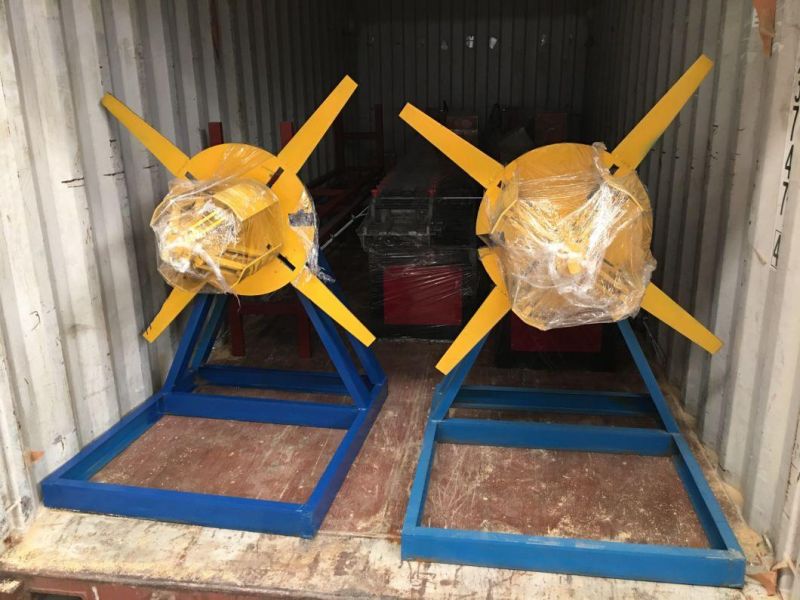

D.Shipping & Packing






E. Company Information

F. Customer Visit



G. FAQ

1:How to play order:



Inquiry---confirm the profile drawings and price---confirm the PI---arrange the deposit or L/C---then OK



2:How to visit our company:



Fly to Beijing airport: By high speed train From Beijing Nan to Cangzhou Xi(1 hour),then we can pick up you.



Fly to Shanghai Airport:By high speed train From Shanghai Hongqiao to Cangzhou Xi(4.5hours),then we can pick up you.



3:When we exported the machines:


We have beening making and exporting the machines since from the year of 1998.



4:If you want to get more pictures or videos of the machines, feel free contact us.


THANK FOR YOUT TIME !
