Kexinda EPS Sandwich Panel Machine
HEBEI XINNUO ROLL FORMING MACHINE CO., LTD.- Tile Type：Colored Steel
- Certification：CE, ISO
- Condition：New
- Customized：Customized
- Usage：Roof
- Transmission Method：Machinery
Base Info
- Product Name：EPS Sandwich Panel Machine
- Transport Package：Nude with Simple Plastic
- Specification：45M
- Trademark：KXD
- Origin：China
- HS Code：8455221000
- Production Capacity：10sets,Month
Description
Basic Info.
Product Name EPS Sandwich Panel Machine Transport Package Nude with Simple Plastic Specification 45M Trademark KXD Origin China HS Code 8455221000 Production Capacity 10sets/MonthProduct Description

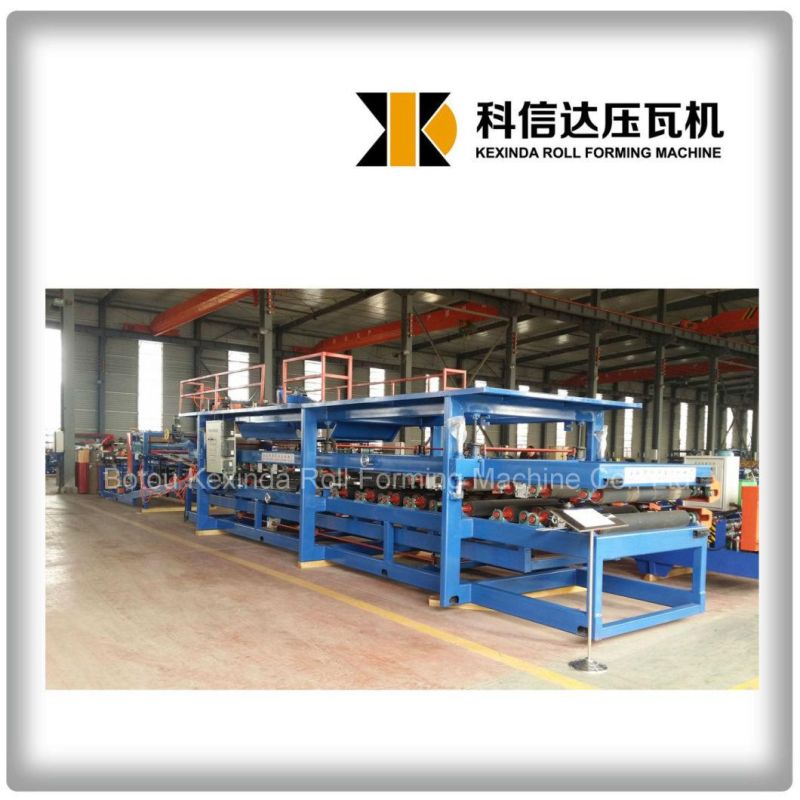

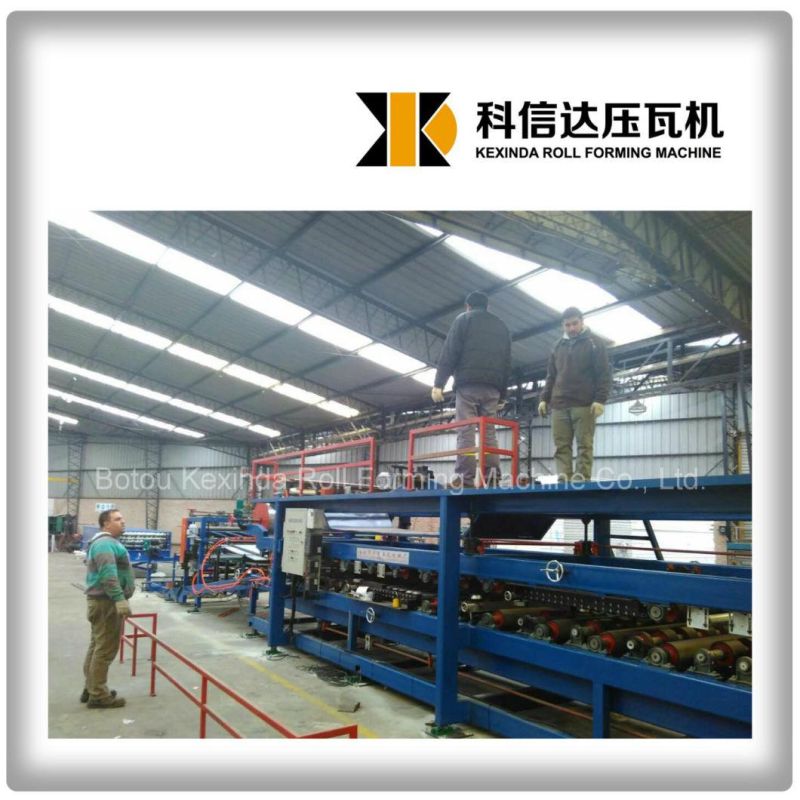

SANDWICH PANEL ROLL FORMING MACHINETechnical specification
1. Technique parameters of the processing line
(1) Coil material: EPS, rock wool, glass silk floss and so on
(2) Thickness of the plate: 0.3-0.8mm
(3) Core thickness: 20-300mm
(4) Production capacity (according to your glue):
4-4.5m/min (the fastest), 2-2.5m/min(the slowest)
(5) Total power: about 30KW
(6) Weight: 25ton
(7) PLC control systerm, easy to operate, high precision and work stably.
(8) Dimensions of whole production line:
About Length35000mm × Width2500mm × Height2600mm
2. Processing technique and deployment
Processes: Composite Decoiler-Roll Forming-laminating system (ribbon, gelatinizing, heating up, compounding, crimping, notching, edge trimmer)-cutting system-Runout Table
