• Model NO.：CLXCA-60
• Diller Dia.：5 or 4mm
• Slot Length：0-60mm
• Rotary Speed：25000r,Min
• Air Pressure：0.5-0.8MPa
• Input Power：1.14kw
• Dimension：1200*1200*1800mm
• Weight：300kg
• Input Voltage：220V,50Hz
• Transport Package：Standard
• Specification：PVC window milling machine
• Trademark：Truetec
• Origin：China
• Production Capacity：20sets,Month

Basic Info.

Model NO. CLXCA-60 Diller Dia. 5 or 4mm Slot Length 0-60mm Rotary Speed 25000r/Min Air Pressure 0.5-0.8MPa Input Power 1.14kw Dimension 1200*1200*1800mm Weight 300kg Input Voltage 220V/50Hz Transport Package Standard Specification PVC window milling machine Trademark Truetec Origin China Production Capacity 20sets/Month

Product Description

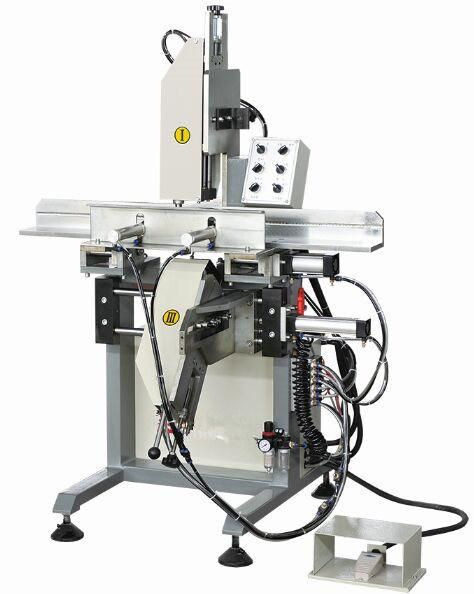

 High Quality Automatic Window Profile Milling Drilling Water Slot Hole Machine

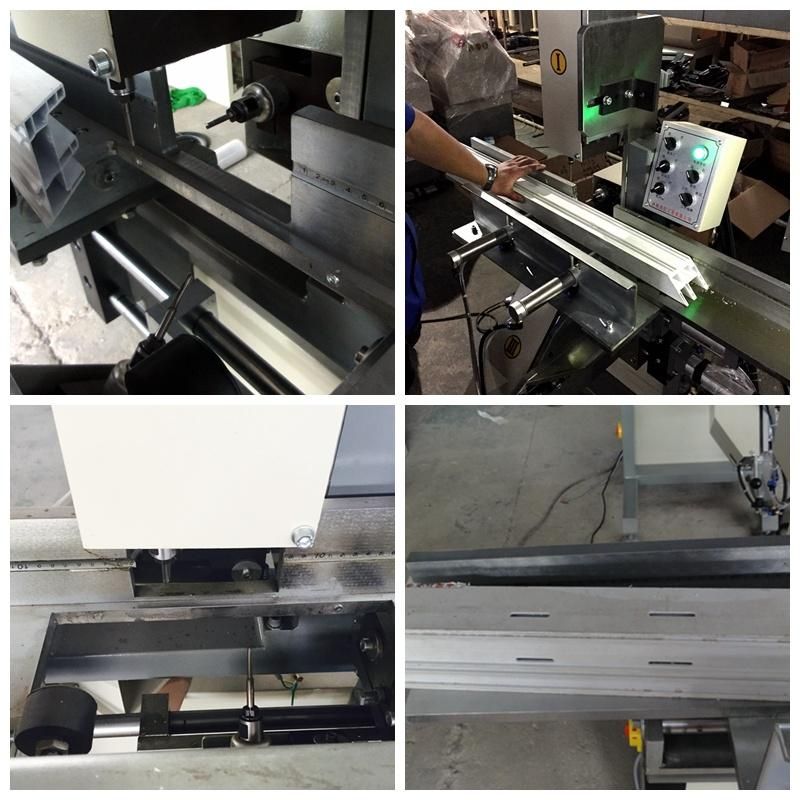

Detailed Information:
 Eqipment Advantages
1.The machine is a specialized equipment processing all types of waterspouts and grooves
for gas-pressure balance of plastic door and window.
2.On the top, below, and horizontal there is a working part for milling.
3.Which ensures positional accuracy of groove and hole very high work efficiency.
4.It has high efficiency and stable performance, also has high working accuracy;
it applies to machine middle and high class doors and windows.

Technical Parameter

Brand Name	Truepro	Air pressure	0.5-0.8MPa
Model	CLXCA-60	Air consumption	30L/min
Input power	1.14kw	Motor rotary speed	25000r/min
Power supply	220V 50Hz	Milling cutter diameter	Φ4,Φ5
Slot depth	30mm	Slot length	30~60mm
Overall dimension	1200*1200*1800mm	Weight	300kg

Company Information



 FAQ1.Q:Are you a manufacturer?
 A: Yes,we have been in providing the professional products in this field for 10 years.

2.Ask:how to install the machine ?
A:we can intrust the install the machine by vedio, email ,picture.....if large project ,
we can arrange the worker help you to install it in your country .

3.Q :How you pack the products ?
A: Normally as the export standard packaging or as you required.

4.Q: What is your available port of shipment?
A:Qingdao port,shanghai,tianjin,guangzhou etc.

5.Q: Is customized available ?
A: Yes, according to your detailed drawings you provide

7. Q:After Sale Service
24 hours technical support by phone, email or skype (email or skype) .
12 months warranty period
Our senior engineer is available to travel aboard, help the installation, maintenance and training staff.
By offering this support, we make sure the customer start the business smoothly, to realize win-win cooperation

8.Q: Are you trading company or manufacturer ?
A: We are factory and welcome to visit us at any time.

9.Q: How long is your delivery time?
A: Generally single tanks need 15-30 days, for whole plant need 30-50days.

10.Q: Do you have CE and UL certification?
A: Yes.
