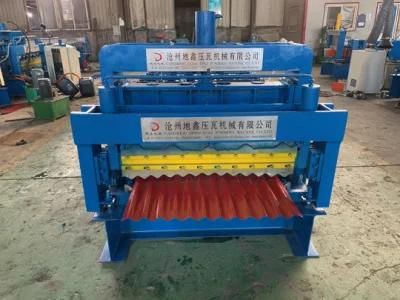

• Model NO.：double roll forming machine
• Transmission Method：Hydraulic Pressure
• Effective：Easy Operation
• Motor Power：4kw
• Forming Station：13 Stations
• Medium Plate Thickness：14mm
• Main Frame：300h
• Diameter of Roller：75mm
• PLC：Delta Brand
• Type：Roll Forming Machine
• Method：Roll Forming Machine
• Transport Package：One 20 Feet Container for Loading One Set Machine
• Specification：CE, SGS
• Trademark：DIXIN
• Origin：Cangzhou City, Hebei Province, China
• HS Code：84552210
• Production Capacity：20sets,Per Month

Thickness of material sheet:

 0.3mm-0.8mm

Width of material coils:

1250 mm

Effective width:

top layer: 1100mm     lower layer : 975mm

Working speed:

top layer: 1100mm     lower layer : 8-10m/min

Rollers step:

top layer: 13steps        lower layer: 15steps

Material of rollers:

45# steel, plated with hard chrome 0.05mm

Material of shafts:

45# steel

Diameter of shafts:

top layer:70mm         lower layer:80mm

Material of cutter:

Material of cutter: Cr12 quenching, HRC58-60

Main motor power:

4KW

Hydraulic station motor power:

4KW

Hydraulic station pressure:

8-12 Mpa

Frame of machine:

welding with 350 H steel

Thickness of side panel:

16mm

Controlling system:

 adopts industrial computer PLC frequency controlling

Machine size:

 8000*1600*1300(mm)

Cangzhou DIXIN Machinery Manufacturing co., LTD is specialized in the manufacture of high-end equipment cold bending forming equipment manufacturer,has a professional engineer for technical guidance.Engineers engaged in cold bending mechanical equipment design for more than 20years,has a wealth of design concept.Can provide users with a special type of design and manufacture.At the same time to sell equipment for installation,guidance,production,commissioning one-stop service.


Customers

Our machine exported all over the world,so our customers are also from all over the word.

Sometimes some customers visit our factory before placing orders, some customers when theirs machines finished ,the come to check test machine, we also have some customers come to our factory to learn how to operate the machine, we

welcome you at any time.

1*40 GP container ; main machine naked and fastened with iron wire in the container.
2.rollers were painted with oil and packed with plastic film.

3.electrics devices be packed with wooden box.for Standard export packing.
4. All Components Fixed by steel wire with Container.


Our Services

We are responsible for the installation and debugging if you buy the metal roof roll forming machine . Equipment parts are guaranteed for one year, Within a year of equipment parts

nonhuman damage(in addition to electric), we undertake free swap or maintenance for you.


Terms of payment

1) Payment: 30% T/T prepaid, and pay the balance before shipping.

2) Delivery time: 30 working days.

3) Guarantee period: 12 months limited warranty starting from date of delivery. Shipping cost for parts to be replaced during warranty period have to be borne by the customer.

4) Spare parts: bearings, buttons, chains, magnetic valve, protective tube etc.

5) Installation and training:

a.If buyers visit our factory and check the machine, we will teach you how   to   install and   use   the machine, and also train your workers/technician face to face.

b.Without visiting, we will send you user manual and CD to teach you to install and operate.

c. COST OF INSTALLATION:

The buyer should pay the installation charges (USD 80 one man one day). To the seller's appointed account by T/T before the seller's technicians go to the buyer's factory. The buyer pays the seller's technicians travel cost outside China, including round air tickets fee, accommodation and food, provide transportation from living hotel to the work place, necessary communication, and insurance, etc.

Contact me

Welcome to have a visit !

We can design according to our customers' requirements and we will do our best to meet your needs. For the above reasons, our products not only have a ready sale in domestic market but are also exported to Armenia, Russia, Kazakhstan, Iran and other countries and regions

Please contact me !
