Best Quality Hot Sale Qt4-24 Semi-Automatic Hollow Block Machine, Concrete Brick Machine ,Paver Machine ,Cement Brick Machine,Curbstone Making Machine in Africa
Linyi Duyue Import and Export Co., Ltd.- Certification：CE, ISO
- Customized：Customized
- Automatic Grade：Semiautomatic
- Type：Vibration Molding
- After-Sales Service Provided：Engineers Available to Service Machinery Overseas
- Vibration Force：35.5kn
Base Info
- Model NO.：QT4-24
- Shaping Cycle：20-24s
- Pallet Size：850*550*25mm
- Mixer Model：Jq350
- Total Weight：3 T
- Block Type：Solid Hollow and Paver Blocks
- Mould Technology：Heat Treatment
- Color：as Your Request

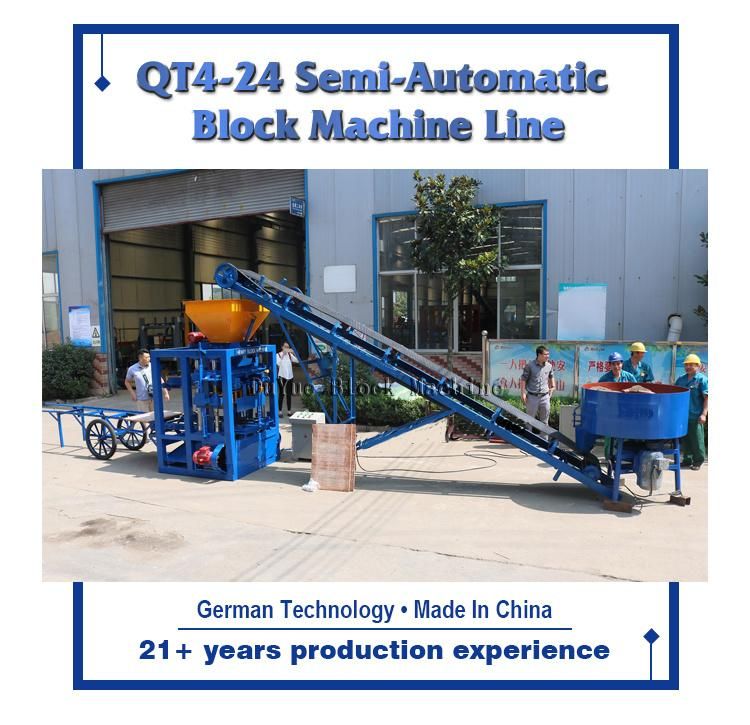

- Name：Qt4-24 Semi-Automatic Block Machine Line
- Power of Host Machine：22.05kw
- Host Machine Power：13.45kw
- Transport Package：Container
- Specification：2060*1730*2580mm
- Trademark：DUYUE
- Origin：China (Mainland)
- HS Code：8474802000
- Production Capacity：1, 296, 000pieces,Year
Description
Basic Info.
Model NO. QT4-24 Shaping Cycle 20-24s Pallet Size 850*550*25mm Mixer Model Jq350 Total Weight 3 T Block Type Solid Hollow and Paver Blocks Mould Technology Heat Treatment Color as Your Request Name Qt4-24 Semi-Automatic Block Machine Line Power of Host Machine 22.05kw Host Machine Power 13.45kw Transport Package Container Specification 2060*1730*2580mm Trademark DUYUE Origin China (Mainland) HS Code 8474802000 Production Capacity 1, 296, 000pieces/YearProduct Description
Production description
1. Using the manual force control and jog control together, the operation is simple and efficient;
2. Using four polesoriented manner and ultralong orientation bear to ensure the precise movementof the pressure head
and mould;
3. Using the ultra strong steel and special welding techniques,it is strong and of high resistancetovibration;

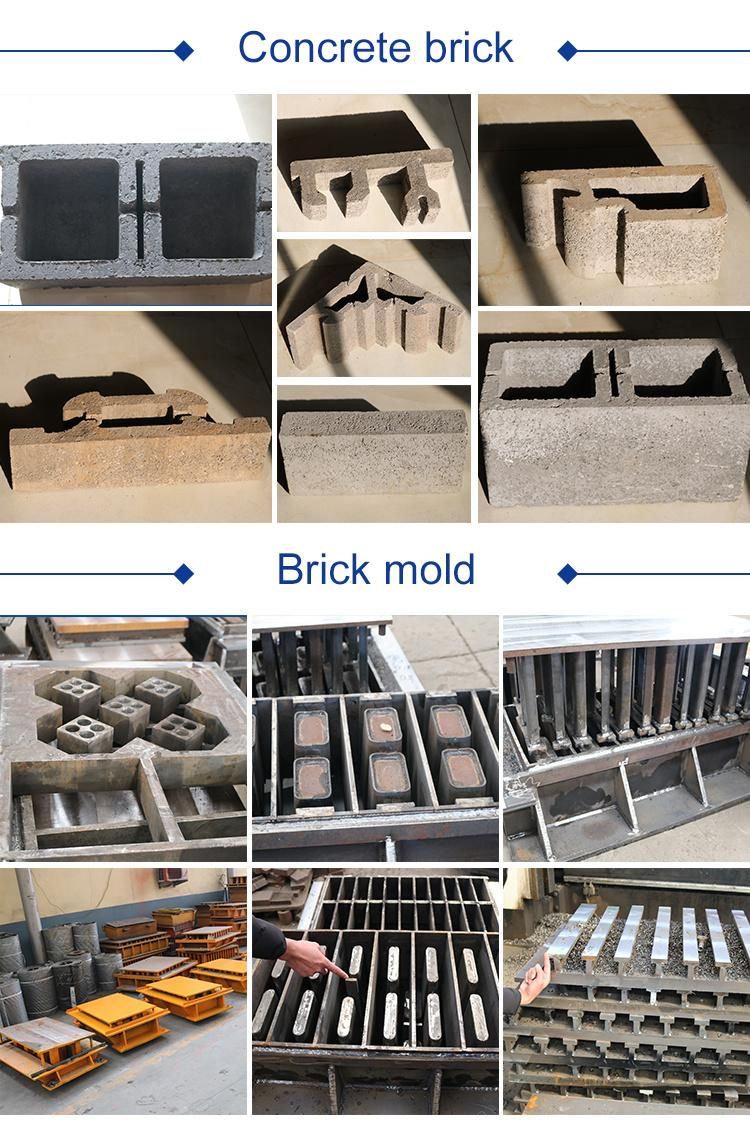

4. It is a multiuseful hollow block machine which could produce road blocks, curb stones, blocks,hollow bricks and other
shapes of different specifications of concrete products via changing theblock mould;
5. imported electrical appliances, sealing parts and parts of hydraulic components, the equipment'scomprehensive performance
is stable and reliable;
6. Using mechanical drive, it is a collection of compact structure, easy maintenance, operationflexible and good reliability;
7. The products which produced by semi-automatic block machine are all of high strength,gooddensity, good appearance,accurate
size and regular shapes;
8. The semiautomatic block forming machine can achieve high eficiency if utilizing large dosage offly ash and slag,could save you
more investment and give you a fast turnover.

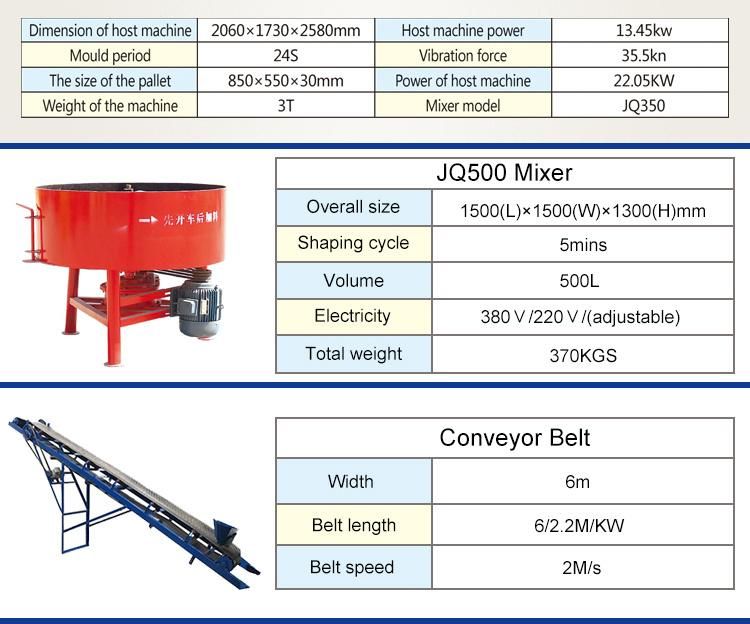

Main technical parameters
Our main advantage

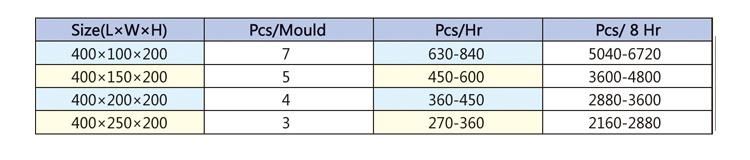

QT4-24 block machine production capacity
DUYUE Industrial company profile
Contact information
