• Model NO.：NM2248
• Usage：Roof, Wall
• Transmission Method：Electric
• Product Name：Steel Roof Corrugated Sheet Roll Forming Machine
• Raw Material：PPGI Sheet
• Feeding Width：1000mm
• Thickness Range：0.3-0.8mm
• Machine Power：5.5kw+3kw
• Forming Speed：15-20m,Min
• Roller Station：29 Groups
• Operation Type：Touching Screen PLC
• Machine Weight：About 5 Tons
• Transport Package：Plastic Film & Steel Wire Fixed
• Specification：6500mm*1500mm*1500mm(L*W*H)
• Trademark：NEXUS MACHINERY
• Origin：Hebei, China
• HS Code：8455221000
• Production Capacity：30 Sets , Months

Basic Info.

Model NO. NM2248 Usage Roof, Wall Transmission Method Electric Product Name Steel Roof Corrugated Sheet Roll Forming Machine Raw Material PPGI Sheet Feeding Width 1000mm Thickness Range 0.3-0.8mm Machine Power 5.5kw+3kw Forming Speed 15-20m/Min Roller Station 29 Groups Operation Type Touching Screen PLC Machine Weight About 5 Tons Transport Package Plastic Film & Steel Wire Fixed Specification 6500mm*1500mm*1500mm(L*W*H) Trademark NEXUS MACHINERY Origin Hebei, China HS Code 8455221000 Production Capacity 30 Sets / Months

Product Description

780 Large Water Wave Steel Roof Corrugated Sheet Roll Forming Machine
Corrugated sheeting is the traditional and familiar S-Rib profile for roofing and cladding applications. It is the oldest and most commonly used roofing profile because of its easy handling and fixing properties and related strength. The S-rib is derived from sinus curve and offers very strong and structural properties.780 Large Water Wave Steel Roof Corrugated Sheet Roll Forming Machine is one most popular type of roll forming machines. It makes different shape of color steel roof sheet, which is used for buildings, factory, supermarket ect. For this machine, it suits thickness range is from 0.20mm to 0.60mm PPGI,GI sheet. We adopt 16mm thick wall board to make machine frame strong and beauty. Usually it can run with the speed to10-15m/min, PLC with touch screen operation make the machine simple and easy for usage.

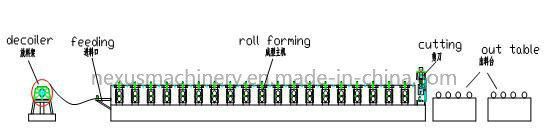

1. Processing flow diagram:

Decoiler→ Feeding →Roll forming →Measure length →Hydraulic cutting →Output table

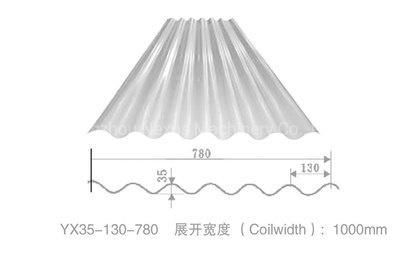

2. Profile Drawings for Reference:

3. Technical parameters for 780 Corrugated Sheet Cold Roll Forming Machine Mini Corrugation Roof Sheeting Machinery :

1	Suitable to process	Color steel plate
2	Width of the plate	1000mm
3	Thickness of the plate	0.3-0.8mm
4	De-coiler	Manual one, can load 5 tons raw material
5	Rollers for forming	29 stations
6	Diameter of the roller	76mm
7	Rolling material	Carbon Steel 45#
8	Main motor power	5.5kw
9	Productivity	15-20m/min
10	Cutting method	Hydraulic mould cutting
11	Material of the cutting blade	Cr12
12	Hydraulic cutting power	3kw
13	Processing precision	Within 1.00mm
14	Control system	Delta PLC control
15	Side panel of machine	18mm
16	Main structure of the machine	350 H steel
17	Weight	About 4.6T
18	Dimensions	7.5*1.6*1.2m
19	Voltage	380V 50Hz 3phases(changeable as needs)
20	Certificate	CE/ISO

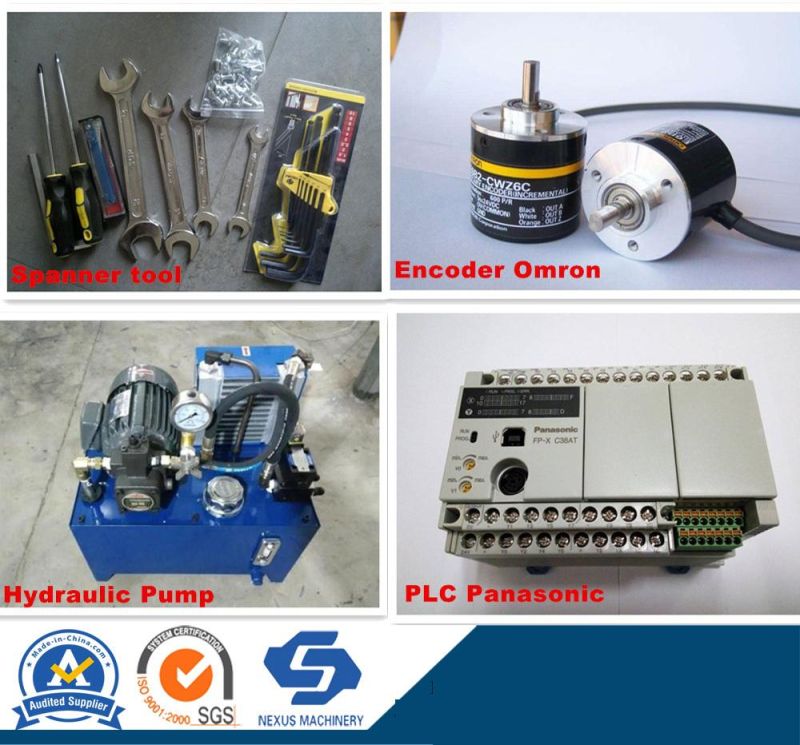

4. Equipment list :


No.	Product Name	QTY
1	5T Manual decoiler	1
2	780 Large Water Wave Steel Roof Corrugated Sheet Roll Forming Machine   (Includes Hydraulic cutting, PLC computer, Electrical cabinet, Hydraulic system)	1
3	Passive Output table	2
Sum		4

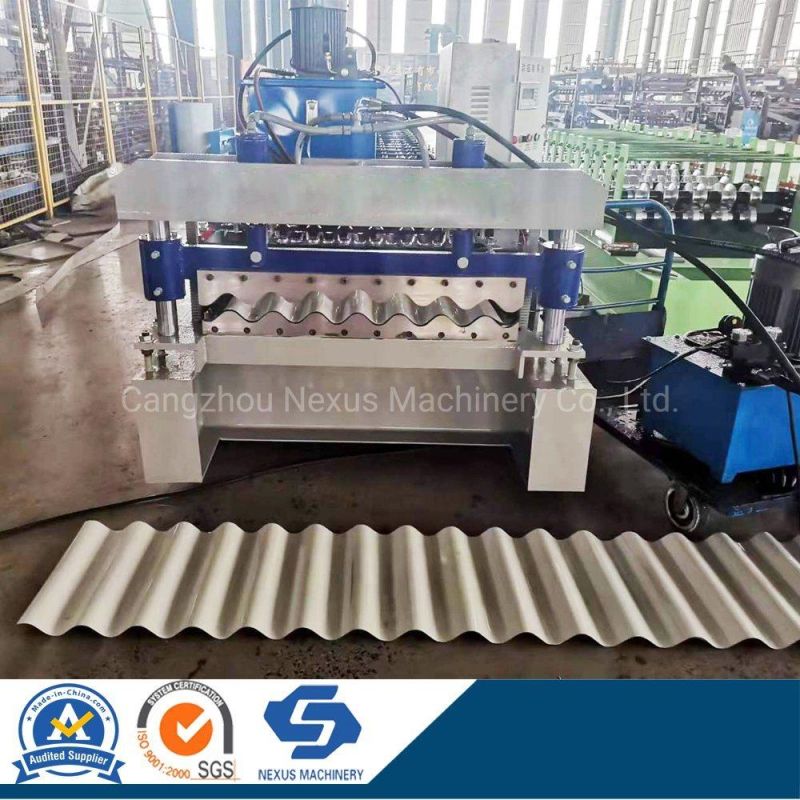

 5. Photos of 780 Large Water Wave Steel Roof Corrugated Sheet Roll Forming Machine for Reference:
