• Model NO.：LJZ2-CNS-500*4200
• Input Voltage：380V 50Hz
• Input Power：4.5kw
• Air Pressure：0.5~0.8MPa
• Air Consumption：200L,Min
• Cutting Length：360~4200mm(360~5000mm)
• Cutting Height：10~300mm
• Cutting Width：10~130mm
• Cutting Angle：90° , 45° , 67.5°
• Saw Feeding Speed：0~3m,Min
• Saw Blade Standard：500*4.4*30*Z120
• Overall Dimension：5500*1700*1600mm
• Transport Package：Wooden Box
• Specification：5500*1700*1600mm
• Trademark：YueFeng
• Origin：China
• HS Code：8477800000
• Production Capacity：40 Window Per Day

Basic Info.

Model NO. LJZ2-CNS-500*4200 Input Voltage 380V 50Hz Input Power 4.5kw Air Pressure 0.5~0.8MPa Air Consumption 200L/Min Cutting Length 360~4200mm(360~5000mm) Cutting Height 10~300mm Cutting Width 10~130mm Cutting Angle 90° , 45° , 67.5° Saw Feeding Speed 0~3m/Min Saw Blade Standard 500*4.4*30*Z120 Overall Dimension 5500*1700*1600mm Transport Package Wooden Box Specification 5500*1700*1600mm Trademark YueFeng Origin China HS Code 8477800000 Production Capacity 40 Window Per Day

Product Description

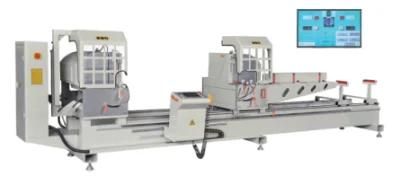

Cutting Machine Digital Display Double Head Sawing Machine Aluminum Cutting Machine

More details about the Cutting Machine Digital Display
Double Head Sawing Machine Aluminum Cutting Machine

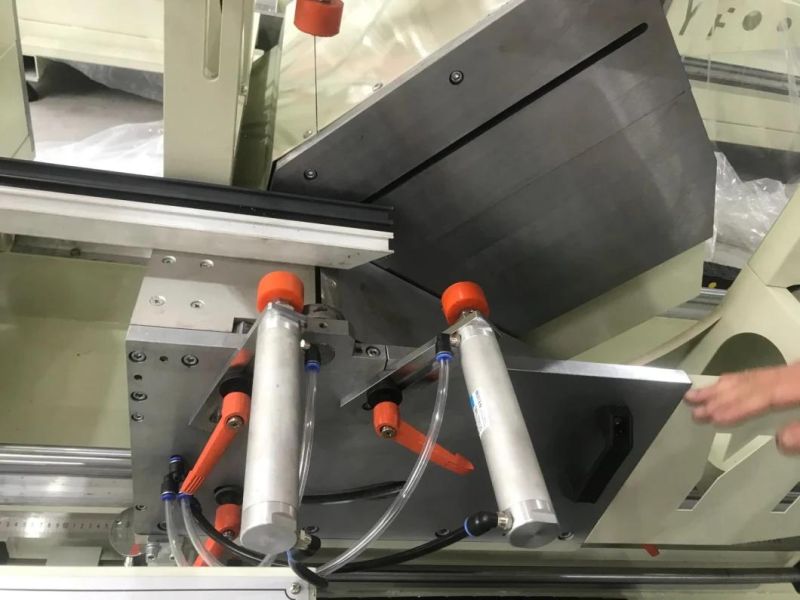

1.An additional compression cylinder is added to the right side of
the right machine head to prevent punching when sawing back

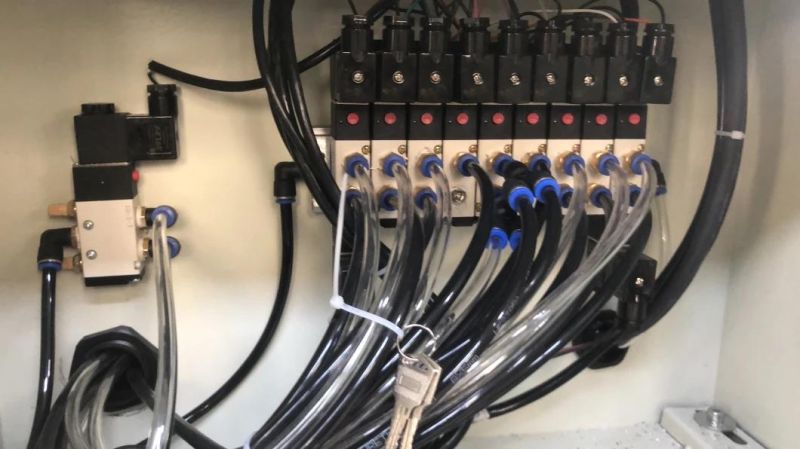

2.There are 11 solenoid valves in total. Each solenoid valve has a clear division of labor,
which can prolong the service life of the solenoid valve.

3.When the profile is larger than 2 meters, the auxiliary support frame automatically rises to
reduce errors and improve cutting accuracy

4.The working method uses a gas-liquid damping cylinder to ensure the stability of co-progression

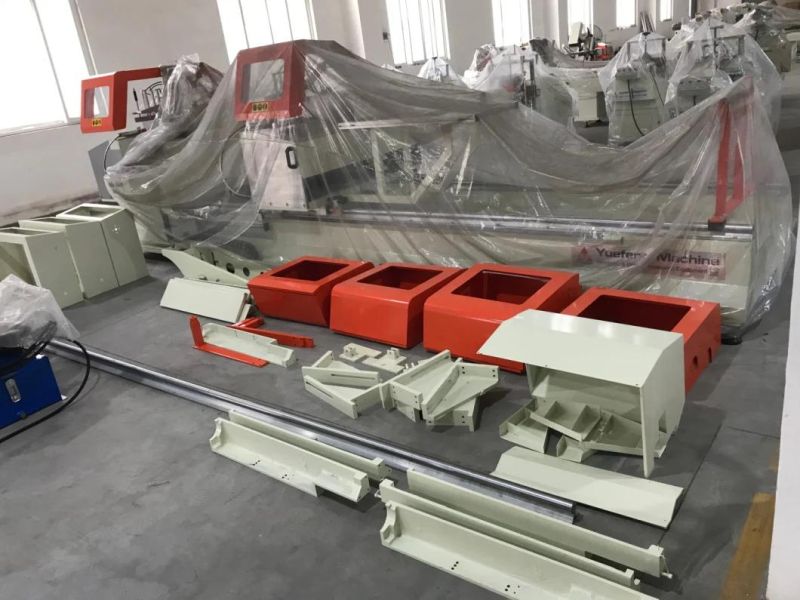

5.All equipment is painted 3 times, primer 2 times, top coat once.
The body of all equipment has undergone aging treatment, pickling and phosphating treatment,
the body is not easily deformed, and the color is not easy to fade.

Please contact us for more machine details

Technical Parameter:
1Used for cutting profiles such as aluminum profile and curtain wall.

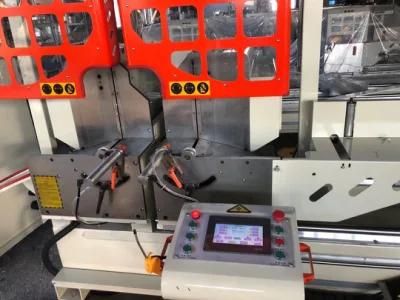

2Touched screen and import controlling system adopted with high accuracy and smooth working.
Two heads cutting angle 90°45°67.5°(22.5°) are available.
3Setting heights of profiles will show the lengths of cutting with different angles (90°, 45°, 67.5°) automatically.
4The system can store various of profiles, convenience and efficiency.
5Digital display system adopted, with high efficiency and accuracy.

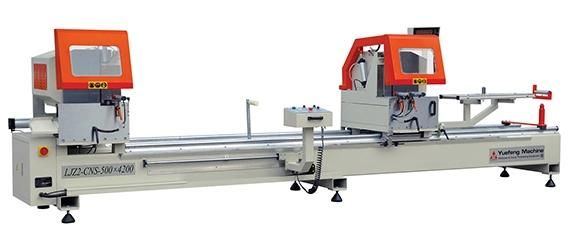

Model	LJZ2-CNS-500×4200(5000)
Input voltage	380V 50Hz
Input power	4.5Kw
Air pressure	0.5~0.8MPa
Air consumption	200L/min
Spindle speed	3200r/min
Cutting length	360~4200mm(360~5000mm)
Cutting width	10~130mm
Cutting height	10~300mm
Cutting angle	90° , 45° , 67.5°
Saw feeding speed	0~3m/min
Saw blade standard	φ500×4.4×φ30×Z120
Overall dimension	5500(6300)×1700×1600mm

FAQ

1.Are your company a trading one or a factory?
Factory + trade (integration), 36 years' focusing on Upvc,Aluminum Window and Doors Equipment ,insulating glass equipment and curtain wall equipment.

2.After an order is placed, when to deliver?

♦ Generally about 15 days,  If  we have inventory, we can arrange shipment within 5 days.
♦ Please be aware that our production lead times depend on specific items and item quantities.
3.What about the warranty with after - sales services?
♦ 24 months warranty. Besides,we can help you to solve your problem freely;

♦ After the warranty, the professional after-sale service team will provide perfect technical support,and help customer solve problem encountered while using our product, handles guest problems and complaints in a professional and timely.
4.What about the services and product' quality?
♦ Each machine must be carried out 100% quality examination and test before shipment.

♦ And all machines meet ISO and CE certification.
5. We don't know the machine operation, what should we do?

♦ We can send engineer to your place, or we provide video training to show you how to install & operate, let engineer help you online.
