• Type：Pipe Production Line
• Strip Thickness：0.18-0.3mm
• Wall Thickness：0.15-0.3mm
• Size Range：DN8-40
• Advantage：Unlimited Length of Hose
• Production Speed：2.5~3.5m,Min
• Material of Strip：SUS304, 321 and 316L
• Power：5kw
• Dimension：8000*1100*1700
• Voltage：380V,415V
• Transport Package：Standard Seaworthy Package Plywood Box
• Specification：ISO9001
• Trademark：Comflex
• Origin：Jiangsu, China
• HS Code：844790900
• Production Capacity：2000 Sets Per Year

No.
Size
Tube OD
(mm)
Wall thickness
(mm)
Hose ID
(mm)
Hose OD
(mm)
Pitch
 distance
(mm)
Width of the strip
(mm)
1
DN 8
10.3
0.18
8
11.3
2.7
31.8
2
DN10
12.3
0.18
10
13.5
2.9
38.1
2
DN 12
15
0.18
12.3
16.3
3.2
46.6
3
DN 16
20
0.2
16.2
21.3
4.5
62.2
4
DN 20
23.5
0.25
20
25
4.5
73.0
5
DN 25
30
0.3
25
31.5
4.5
93.3
6
DN 32
39.5
0.3
33
41
4.5
123.2

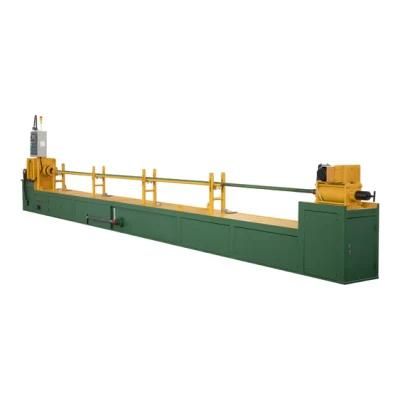

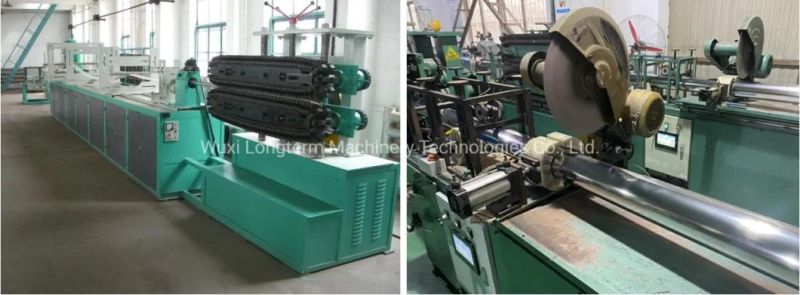

Hydraulic Hose Making MachineMachine Type No.HLT-H-150Technical DataApplication of the hose: water, oil, steam
Size range: DN32 up to DN150
Wall thickness: 0.2-0.3mm
Production speed:2.5~3.5m/min
Strip thickness: 0.18-0.3mm
Material: sus304, 321 and 316L
Outer dimensions:15000*1100*1700Packing detailsPlywood box and standard palletMOQ1 setWarranty1 yearPayment termsT/T, L/C, D/P, Western union
DN10-150 Tube welding machine
Wall thickness d³0.18mm
Tube diameter Ф10―Ф65mm
Control Inverter control
Welding speed About 250mtrs/hr
Tube length No limit

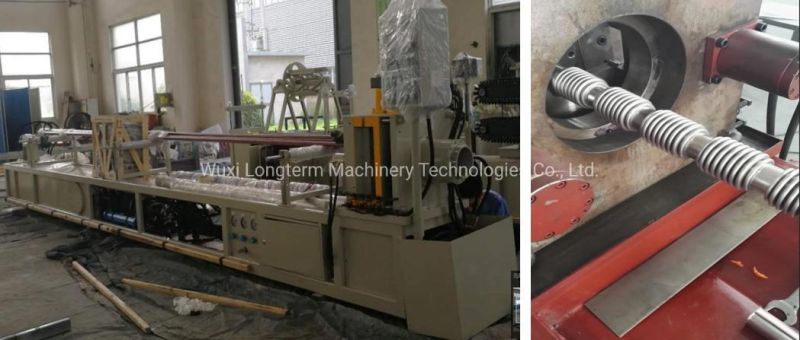

Hydraulic bellow forming machine YKCX-150A
ID range: Φ32-Φ159mm
Thickness range: Single layer 0.4-1.2mm
                            Double layer 0.25×2-0.8×2mm
Length range: L≤7000mm

Company Profile:We are professional manufacturer of all types of metal flexible metal hose and machinery, such as corrugated metal hose, square lock and interlock hose/ conduit with more than 25 years of experience. The hoses are widely used in many industries: gas hose, water hose and wire & cable protection circuit, etc..
The sizes are as follows:
Square lock hose and machinery:ID6-ID103
Interlock hose and machinery:ID3-ID350mm on different machine
Annular and corrugated metal hose: ID8 till ID600 on different machine

Package And Delivery:

Installation And Commissioning
Our service
Warranty period of one year
Standard seaworthy package
Engineers available to service machinery overseas

FAQ
Q: Why choose us for metal hose forming machine?
A: We are most professional manufacturer of hose making machine with more than 25 years of experience
Q: What size can you make?
A: All the sizes from DN8 up to DN1200 can be made on different machines
Q: How many different types of machines can you make?
A: Hydraulic metal hose forming machine
     a:DN16-65mm   b:DN25-DN100mm   c:DN32-150mm  d:DN50-300mm  e:DN80-400mm
B: Mechanical hose making machine DN8-50mm
C: PU/ Elastomer Metal Hose Making Machine
     a:DN12-100   b: DN50-150   c:DN12-65
Q: Can the hose forming machine be used for bellow making?
A: Yes, all above hose forming machine can be used for bellow making as well

We need to know the following information to quote your correct machinery:
1. Size range you want to make
2. The application of the hose you need, for instance, natural gas hose, water hose, air-conditional hose, etc..
3. Wall thickness
