• Model NO.：QT10-15
• Capacity：400*200*200mm About 19200PCS Per Shift
• Mould Capacity：400*200*200mmmm Make 10 Pieces Per Mould
• Weight：Around 75000kgs
• Voltage：Customized Your Local Voltage
• Moulding Cycle：15 Seconds
• Warranty：1 Year
• Pressure：Hydraulic
• Brick Type：Hollow, Solid, Paver and So on
• Transport Package：40 Feet High Container with Bulk Package
• Specification：9350*2320*2950mm
• Trademark：Shiyue
• Origin：Shandong Province, China
• HS Code：8474802000
• Production Capacity：2000 Sets Per Year

Basic Info.

Model NO. QT10-15 Capacity 400*200*200mm About 19200PCS Per Shift Mould Capacity 400*200*200mmmm Make 10 Pieces Per Mould Weight Around 75000kgs Voltage Customized Your Local Voltage Moulding Cycle 15 Seconds Warranty 1 Year Pressure Hydraulic Brick Type Hollow, Solid, Paver and So on Transport Package 40 Feet High Container with Bulk Package Specification 9350*2320*2950mm Trademark Shiyue Origin Shandong Province, China HS Code 8474802000 Production Capacity 2000 Sets Per Year

Product Description

QT10-15 concrete hollow block making machine main parameters and features





1.Controls can be manual, semi-automatic or fully automatic.
2.Uses vibration and hydraulics to form blocks or bricks.
3.Change mould are available and it can shape different blocks and bricks.
4.Typically made from hardened steel or cast to withstand the strain of construction sites.
5.These machines are manufactured and install to provide a user friendly design to be used by unskilled worker. They are also efficient and can therefore be used by small and medium enterprises as well as larger operations.
6.The multi-functional machines can produce all kinds of products from the wall materials of new-style into products used in manicipality, garden, road paving, water conservancy, airport and wharf etc.

Overall Dimension	9350*2320*2950mm
Rated Pressure	21MPa
Main Vibration Form	Platform Vibration
Vibration Frequency	2800-4500 ( r/min)
Pallet Size	1020*900mm
Molding cycle	15-20s
Overall Power	44kw
Vibration Force	45KN
Total Mass	7.5T
Demolding method	Hydraulic
Factory Area	3000m2
Applied Products	Concrete blocks, hollow/solid blocks, pavers, interlocking blocks , curbstone, colored pavers ,etc.
Raw Material	Crushed stone, sand , cement, dust, and fly ash, gravel, slag, and other raw material etc.

QT10-15 concrete hollow block making machine show

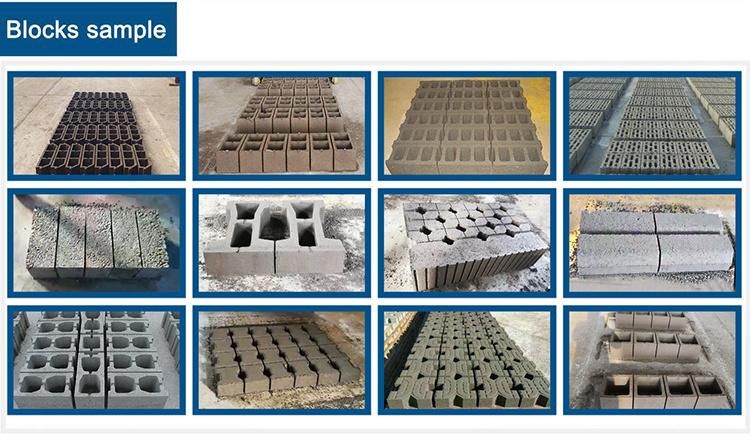

common brick capacity

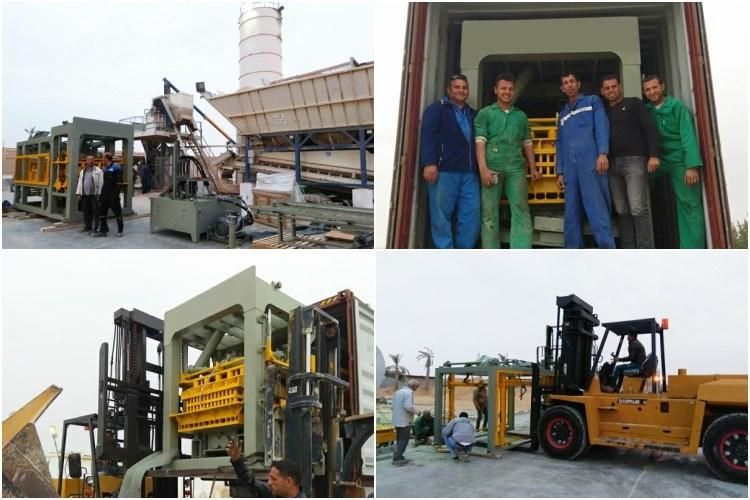

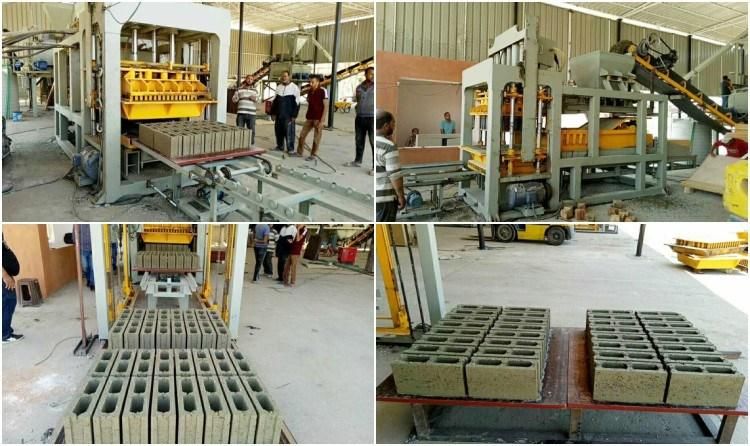

customer receive machine and production site





FAQ
1> Is this block machine suitable for us to use?
Answer: if you want to make common bricks and Medium capacity, this model is suitable for you, if no, please tell us what kind of bricks do you want to make? or what capacity do you prefer?Then the most suitable model can be recommended to you.
2>Which industry did this block machine usually be used in?
Answer: Interlocking bricks, Paving bricks,Solid bricks,etc
3>How to use the block machine?
Answer: We will send the operating manual to you after you purchase the machine, for bigger machine, we can offer engineer fly to your side for installation and training your workers.
4>How about the after sale service of block machine?
Answer: 1 year guarantee for the whole machine (without the spare parts),good machine no need after sale service,we keep the superior quality machine for you.
5>what's your payment term
our common payment is 30% deposit by T/T before arrange the machine production,70% balance before the delivery,if other payment term,we can negotiation.
