• Product Name：Canton Fair Double Layer Metal Roofing Machine
• Raw Material：PPGI Sheet
• Thickness Range：0.3-0.6mm
• Machine Power：4kw+3kw
• Forming Speed：10-12m,Min
• Operation Type：Touch Screen
• Operation Language：English and Chinese
• Machine Weight：About 3 Tons

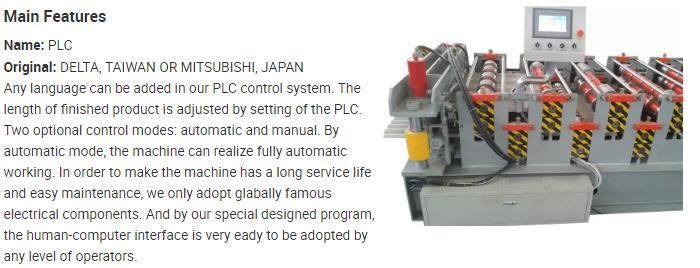

• PLC Brand：Sanjing
• Warranty：1 Year
• Transport Package：Plastic Film & Steel Wire Fixed
• Specification：5500mm*1500mm*1500mm(L*W*H)
• Trademark：NEXUS MACHINERY
• Origin：Cangzhou, China
• HS Code：8455221000
• Production Capacity：30 Sets , Months

 Canton Fair Hot Sale ISO/SGS Certified Double Layer Corrugated Roof Sheet Roll Forming Making Machine

1

Suitable to process

Color steel

2

Width of the raw material

1200

3

Output width

1000

4

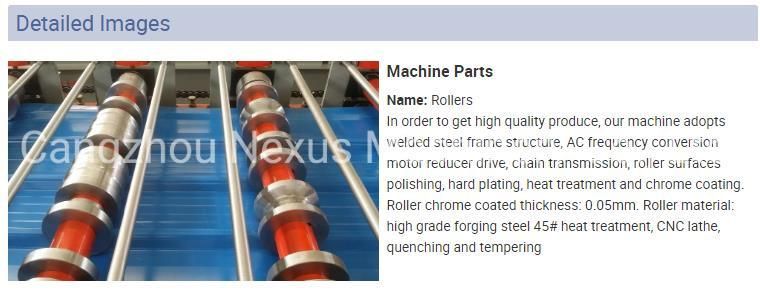

Rollers

16 rows

5

Power

4kw+4kw

6

Thickness of the plate

0.3-0.8mm

7

Productivity

12-15m/min or

25-35m/min by hydraulic motor

8

Diameter of the roller

72mm

9

Weight

About 4 T

10

Voltage

380V  50Hz 3phase

11

Received table

4 meters

12

Raw material of the cutter

Cr12

13

Raw material of the roller

Bearing steel

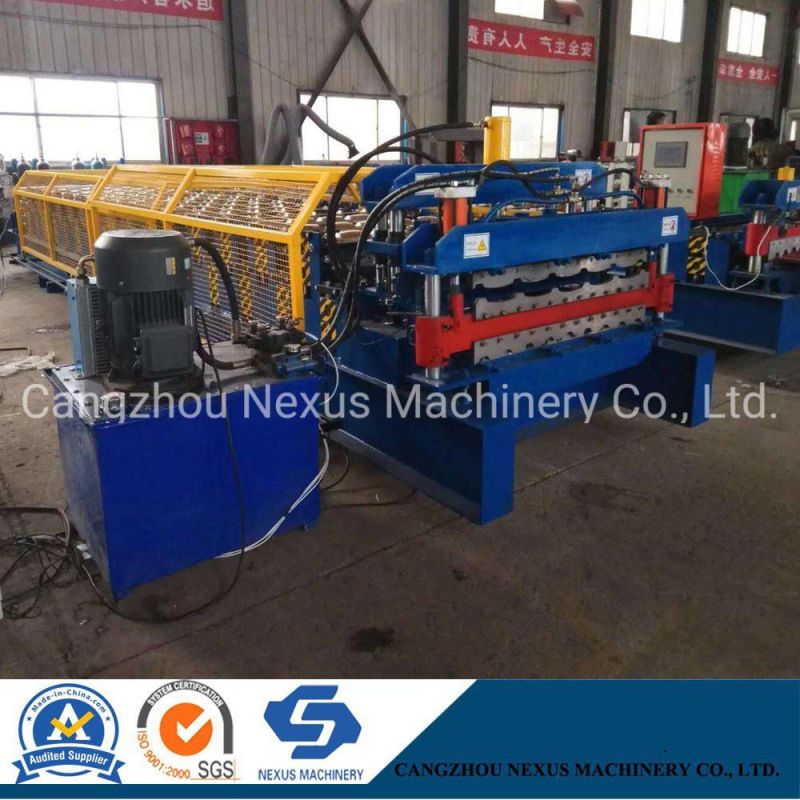

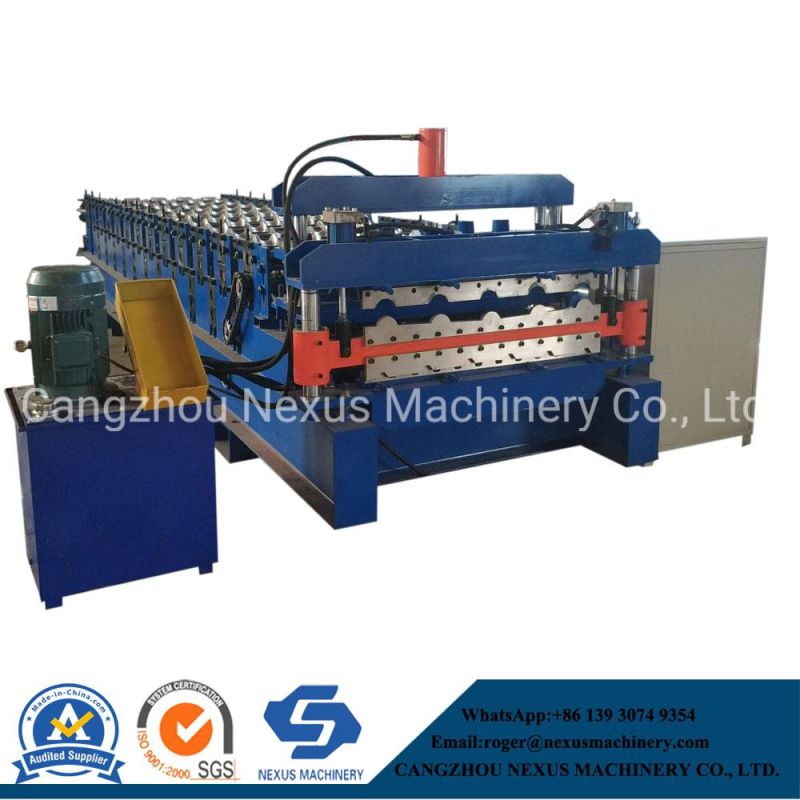

5. Photos of Canton Fair Hot Sale ISO/SGS Certified Double Layer Corrugated Roof Sheet Roll Forming Making Machine   for Reference:

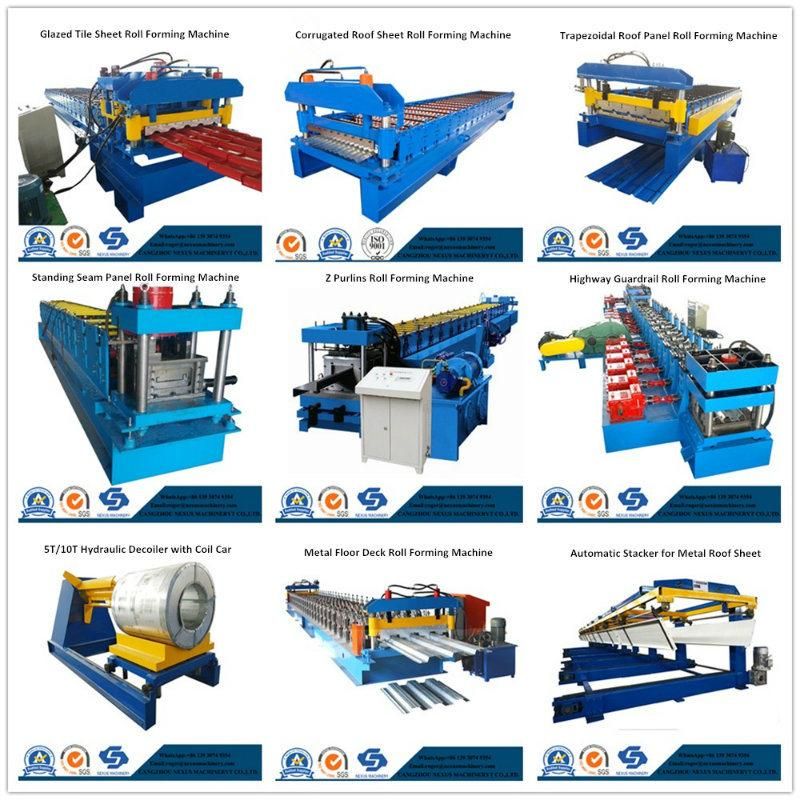

6.More Products for Choose:

Exhibitions Photos:


FAQ:

1. Do you have after sales support?
   Yes, we are happy to give advice and also have skilled technicians available to maintain the machine if needed.
2. What can you do if the machine broken?
   Our machine's warranty period is 12months. if the broken parts can't repair, we can send the new parts replace the broken parts, but you need pay the express cost by yourself.
3. Can you be responsible for transport?
   Yes, please tell us the destination port or address. we have rich experience in transport.
4. Do you provide customized?
   Sure, we can design the equipment according to the data of the structural section you provide. We are professional sheet metal forming machine designer and manufacturer in China.
