• Model NO.：Sjmc02b
• Saw Blade Specification：φ500*4.3*φ30mm
• Cutting Width Max：150mm (Single)
• Processing Profile Length Range：Max 6000 (Set According to User Needs)
• Dimensions：11900*4400*2400mm
• Weight：3600kg
• Transport Package：Wooden Box
• Specification：11900*4400*2400mm
• Trademark：YueFeng
• Origin：China
• HS Code：8477800000
• Production Capacity：4000 Window Per Day

Basic Info.

Model NO. Sjmc02b Saw Blade Specification φ500*4.3*φ30mm Cutting Width Max 150mm (Single) Processing Profile Length Range Max 6000 (Set According to User Needs) Dimensions 11900*4400*2400mm Weight 3600kg Transport Package Wooden Box Specification 11900*4400*2400mm Trademark YueFeng Origin China HS Code 8477800000 Production Capacity 4000 Window Per Day

Product Description

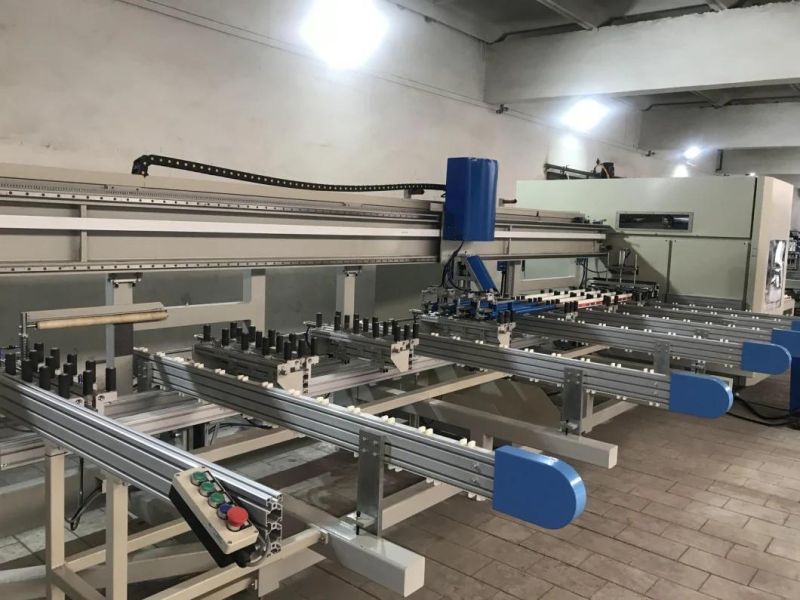

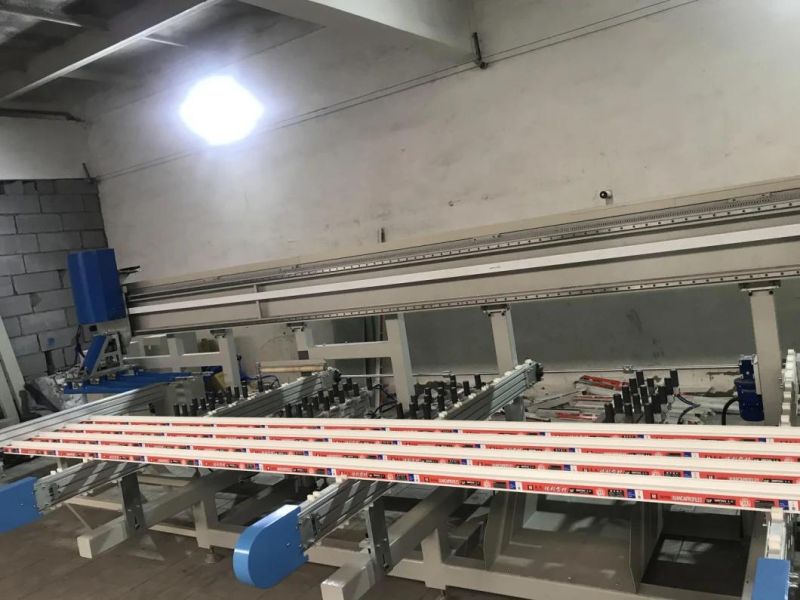

Aluminum Cutting Center Machine with Good Precision

The sawing unit of the complex window system solution is used to automatically realize the cut-to-length of the plastic profile at 45°,
the V-shaped mouth and the middle stile, which is suitable for mass production of high-end doors and windows.


1. Automatically download and optimize the blanking data and process parameters, without manual input and adjustment
2. Automatically complete the clamping, feeding and cutting of profiles, with a high degree of automation
3. Equipped with a circulating feeding system, which greatly improves production efficiency
4. The manipulator can simultaneously clamp and complete the sawing of four profiles at one time, with high production efficiency
5. Imported spindle motor, high processing quality
6. Linear motion pair guide rail, high dimensional accuracy of processed products
7. Two-axis CNC, high degree of automation
8. Imported drive system, closed loop control, high processing accuracy
9. All imported high-quality electrical and pneumatic system components, stable and reliable
10. It can communicate with the host computer, automatically select processing tasks, and realize computer-aided design/manufacturing (CAD/CAM) flexibly
11. Barcode printer can be configured to print material identification in real time, realize process information identification, and facilitate material management (software support)
12. Equipped with automatic discharging system, simple and convenient operation
13. With automatic material head collection system, the working environment is clean and tidy
14. The height design of the console and the fuselage accords with the ergonomic principle, reducing the labor intensity

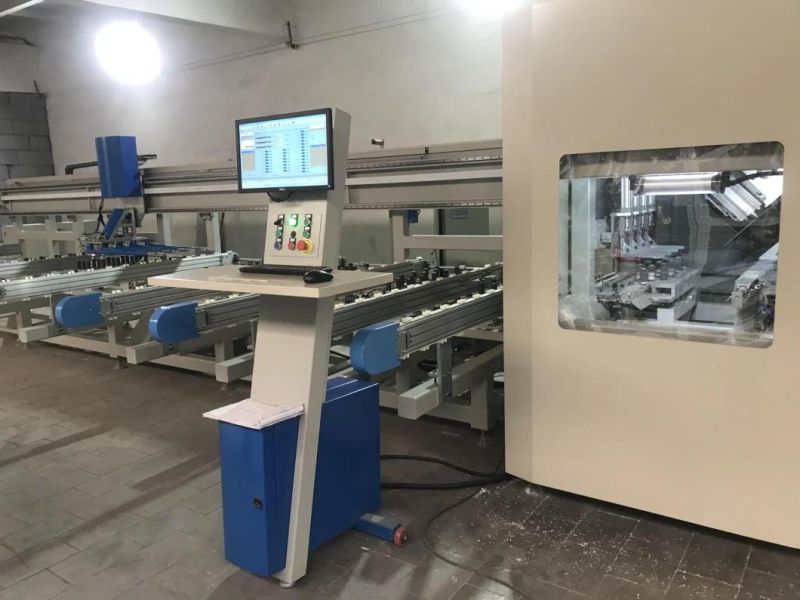

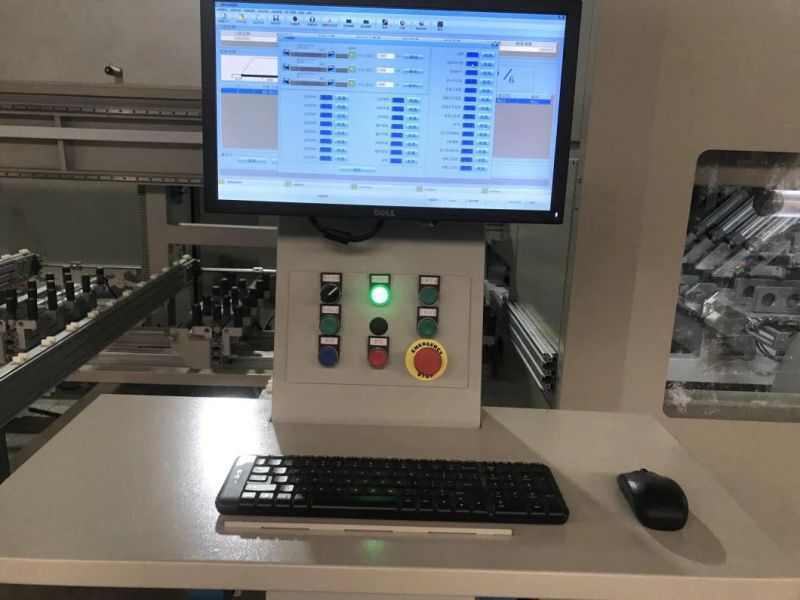

15.1 7-inch large control screen, equipped with a graphical interface, simple and intuitive operation
16. This machine is especially suitable for batch and high-quality production of complex window types



Parameter:


Input voltage	380V 50Hz
Input power	10.8KW
Working pressure	0.5~0.8MPa
Air consumption	330L/min

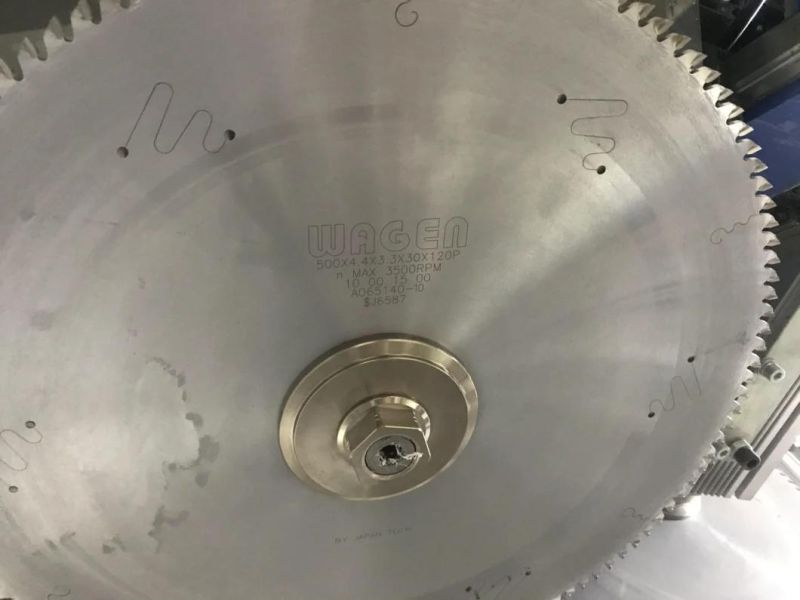

Saw blade speed	3000r/min
Saw blade specification	φ500×4.3×φ30mm
Cutting width max	150mm (single)
Processing profile length range	max 6000 (set according to user needs)
Cutting height frame fan profile	Frame profile ≤120mm Middle stile profile: 54~120mm V port depth: ≤60mm
The minimum cutting length of the stile section	frame fan section 400mm, the stile section 450mm
Dimensions	11900×4400×2400mm
Weight	3600kg

Main components:


Accessory name	Brand	Brand Land
CNC system	Siemens system	Germany
monitor	Philips	Netherlands
PLC	OMRON	Japan
server Driver	Schneider	France
servo motor	Schneider	France
Temperature control meter	OMRON	Japan
Solenoid valve	EMC	Shanghai
cylinder	EMC	Shanghai
Low-voltage electrical appliances	Schneider	France
Saw blade	WAGEN	Japan
Ball screw	HIWIN OR ABBA	Taiwan
PU Air tube	ISAIAH	China
Time delay relay	Weidmuller	Germany
