• Model NO.：LBJ2500C
• Input Voltage：380V 50Hz
• Power：28kw Operation + 10kw
• Maximum Processing Size：2500*3500mm
• Minimum Processing Size：500*300mm
• Original Film Processing Thickness：4-15mm
• Transmission Speed：5-45m,Min
• Dimensions：24800*2700*3600mm
• Transport Package：Wooden Box
• Specification：24800*2700*3600mm
• Trademark：YueFeng
• Origin：China
• HS Code：8477800000
• Production Capacity：4000 Window Per Day

1. All parts of the cleaning cabinet body are made of thick stainless steel, and the parts and screws in contact with water are all stainless steel or waterproof aluminum, which will not rust after long-term use and is easy to maintain.
  2. The cleaning machine adopts upper transmission and double-layer structure to avoid the aging and leakage of the cleaning box seal and is convenient for maintenance.
  3. The washing machine adopts integral rubber roller drive, and the distance between the two rubber rollers can be automatically adjusted by the spring according to the thickness of the cleaning glass, and the glass of 4-15mm can be cleaned.
  4. Three sets of brushes are used to clean the glass, six high-quality 1010 nylon filament brushes and six water sprays, the glass is cleaned, and the speed is fast (5-12m per minute) to clean LOW-E and coated glass.
  5. The brush device has a front and back adjustment function. If the brush is worn out, it can be adjusted forward and used for multiple times to improve the service life of the brush.
  6. With automatic identification of LOE-E, coated glass device, can automatically identify the front and back of LOE-E, coated glass, the first group of coarse brushes will automatically withdraw to avoid damage to the film.
  7. The air knife and backrest wheel support in the drying box are all made of stainless steel to avoid secondary pollution after glass cleaning.
  8. The glass transmission in the drying box is designed to be driven by rubber rollers at the bottom, which is stable and reliable without slipping.
  9. Reasonable air knife angle design and air duct layout make the glass drying effect better.
  10. Circulating wind design, energy saving and low noise of glass drying system.
  11. The bearings used in the cleaning machine are all stainless steel precision high-speed bearings with high precision and stable operation.
  12. The humanized design of the upper section, when placing a large piece of glass, step on the foot switch to stop the transmission, and the placement is complete; step on the foot again to start the transmission, which is convenient for operation and ensures the personal safety of the operator.Features of plate press1. The unique design of the plate press uses servo motors, precision timing belts, precision ball screws, precision lifting mechanisms, etc. to drive work.
   2. Using servo motor drive mode to control the pressing, back sealing, and lowering of the plate, so that the plate press is stable and the pressure is uniform, and the sealing performance of the hollow glass is better.
   3. The board pressure air float is directly introduced into the national standard rectangular tube, which is conducive to the air floatation, does not block, the glass runs in place, there is no groove in the board, and the board is not easy to deform.
   4. The glass positioning cylinder in the plate adopts an oblique structure, which is impact resistant and ensures that the glass runs in place and is a good piece. The stepping motor and driver of American Star are used to position the large and small pieces of glass laterally to realize the processing of the hollow glass of the curtain wall.
5. Reasonably distribute the position of the suction cups to make the glass adsorption more stable; reasonably distribute the inflatable components, and reasonably seal the inflatable cavity, so that the inflating work is more gas-saving and cost-effective. Power source380v 50HzPower28kw operation + 10KW (4kw water heating + 6kw blowing heating)Maximum processing size2500×3500mmMinimum processing size500×300mmOriginal film processing thickness4-15mmTransmission speed5-45m/minDimensions24800×2700×3600mm
Configuration of main components

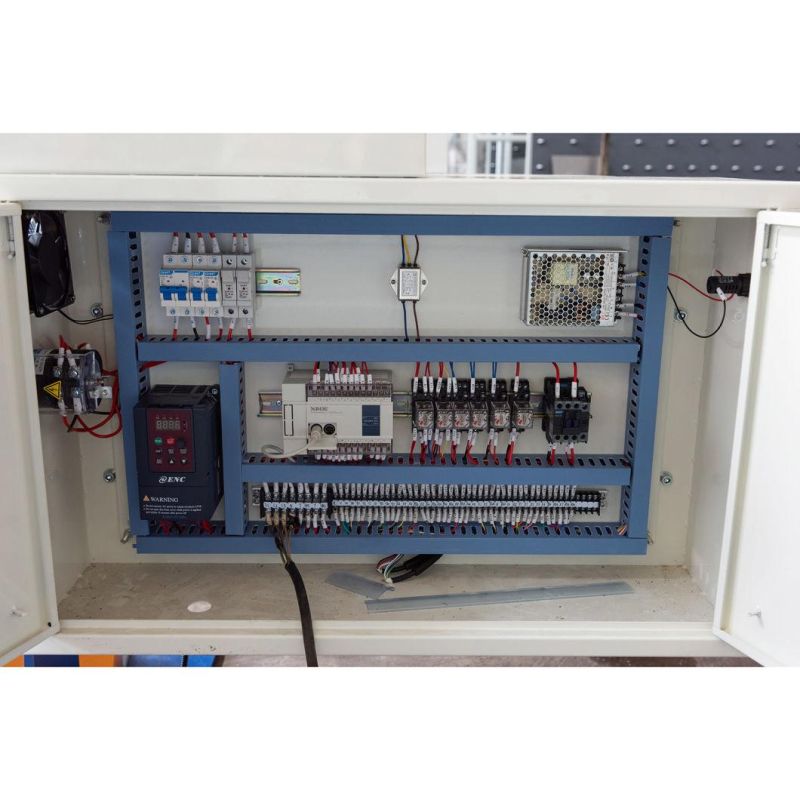

  Program Controller SiemensSiemens GermanyServo motor,Servo driveSiemens GermanyInverterSiemens GermanyLow-voltage electrical componentsSiemens GermanyTouch screenWeilun TaiwanPhotoelectric switchAutonics KoreaVacuum generatorYSC TaiwanSolenoid directional valveairtac taiwan

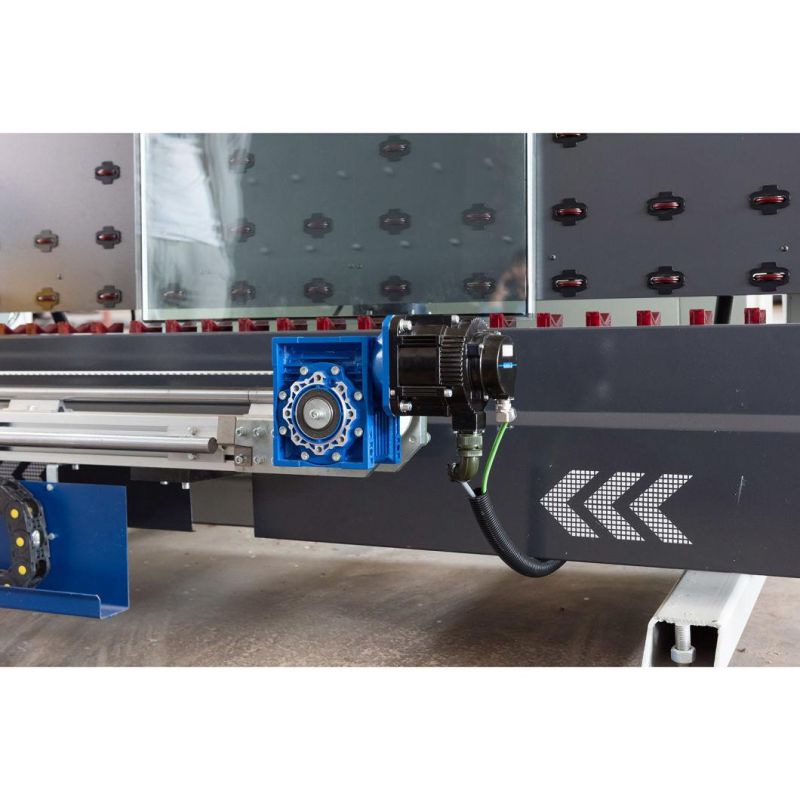

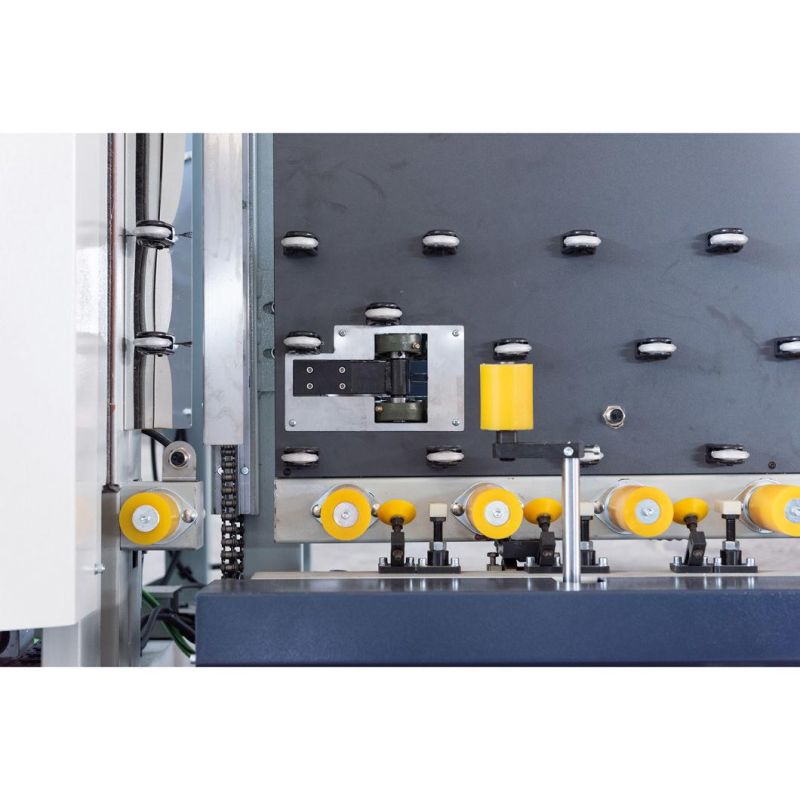

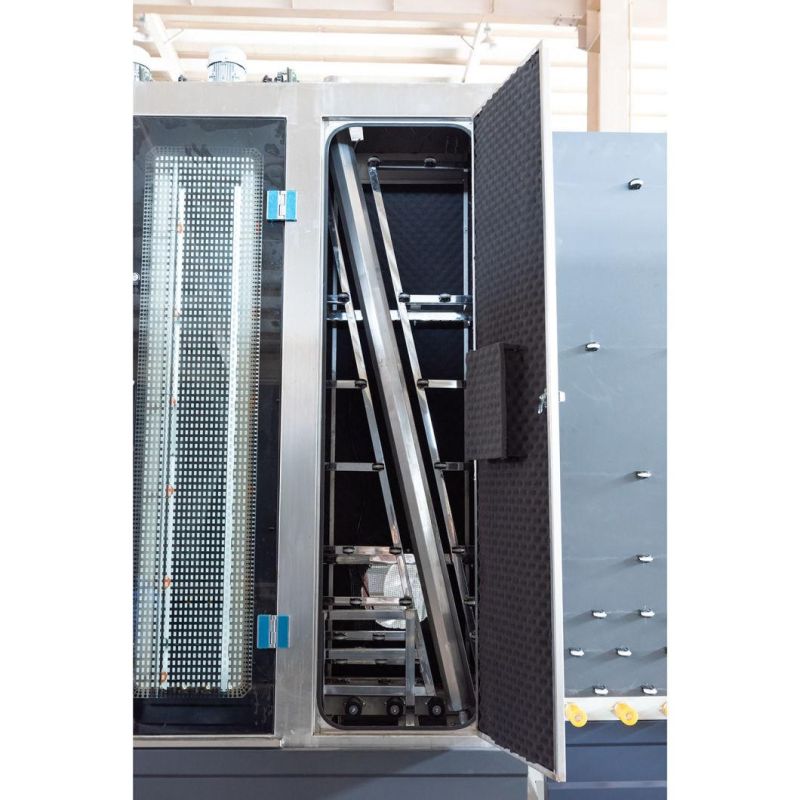

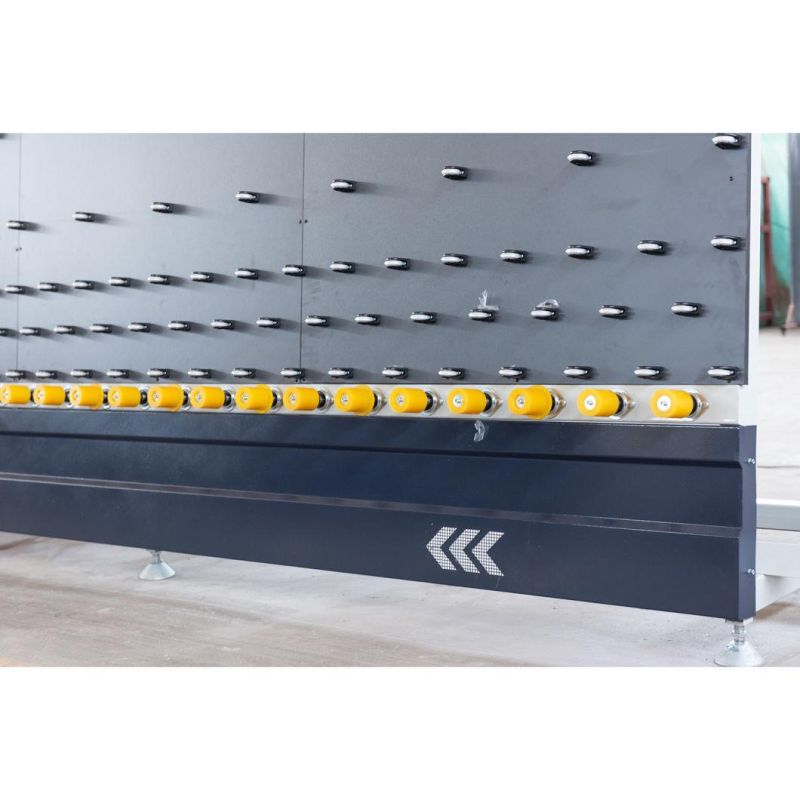

More machine details pictures



FAQ

1.Are your company a trading one or a factory?
Factory + trade (integration), 36 years' focusing on Upvc,Aluminum Window and Doors Equipment ,insulating glass equipment and curtain wall equipment.

2.After an order is placed, when to deliver?

♦ Generally about 15 days,  If  we have inventory, we can arrange shipment within 5 days.
♦ Please be aware that our production lead times depend on specific items and item quantities.
3.What about the warranty with after - sales services?
♦ 24 months warranty. Besides,we can help you to solve your problem freely;

♦ After the warranty, the professional after-sale service team will provide perfect technical support,and help customer solve problem encountered while using our product, handles guest problems and complaints in a professional and timely.
4.What about the services and product' quality?
♦ Each machine must be carried out 100% quality examination and test before shipment.

♦ And all machines meet ISO and CE certification.
5. We don't know the machine operation, what should we do?

♦ We can send engineer to your place, or we provide video training to show you how to install & operate, let engineer help you online.
